Generator Removal/Installation [L3 With TC]: Notes
WARNING:
- When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the battery negative cable before performing the following operation.
CAUTION:
- The generator can be damaged by the heat from the exhaust manifold. Make sure the generator duct is installed securely.
- Disconnect the negative battery cable.
- Remove the under cover.
- Remove the drive belt. (See DRIVE BELT REPLACEMENT [L3 WITH TC] ).
- Remove the charge air cooler cover. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION [L3 WITH TC] ).
- Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION ).

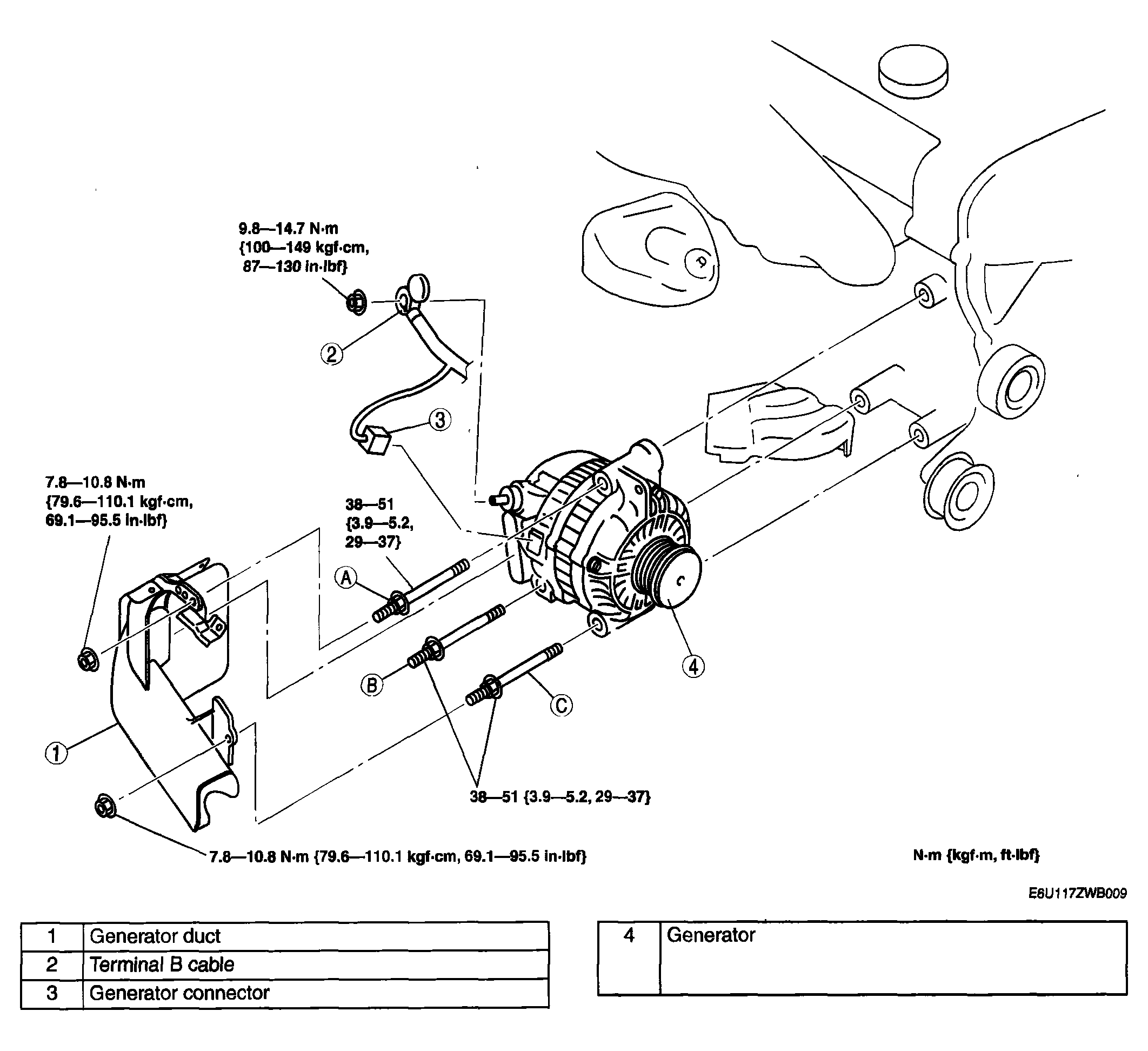

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
