System Specifications

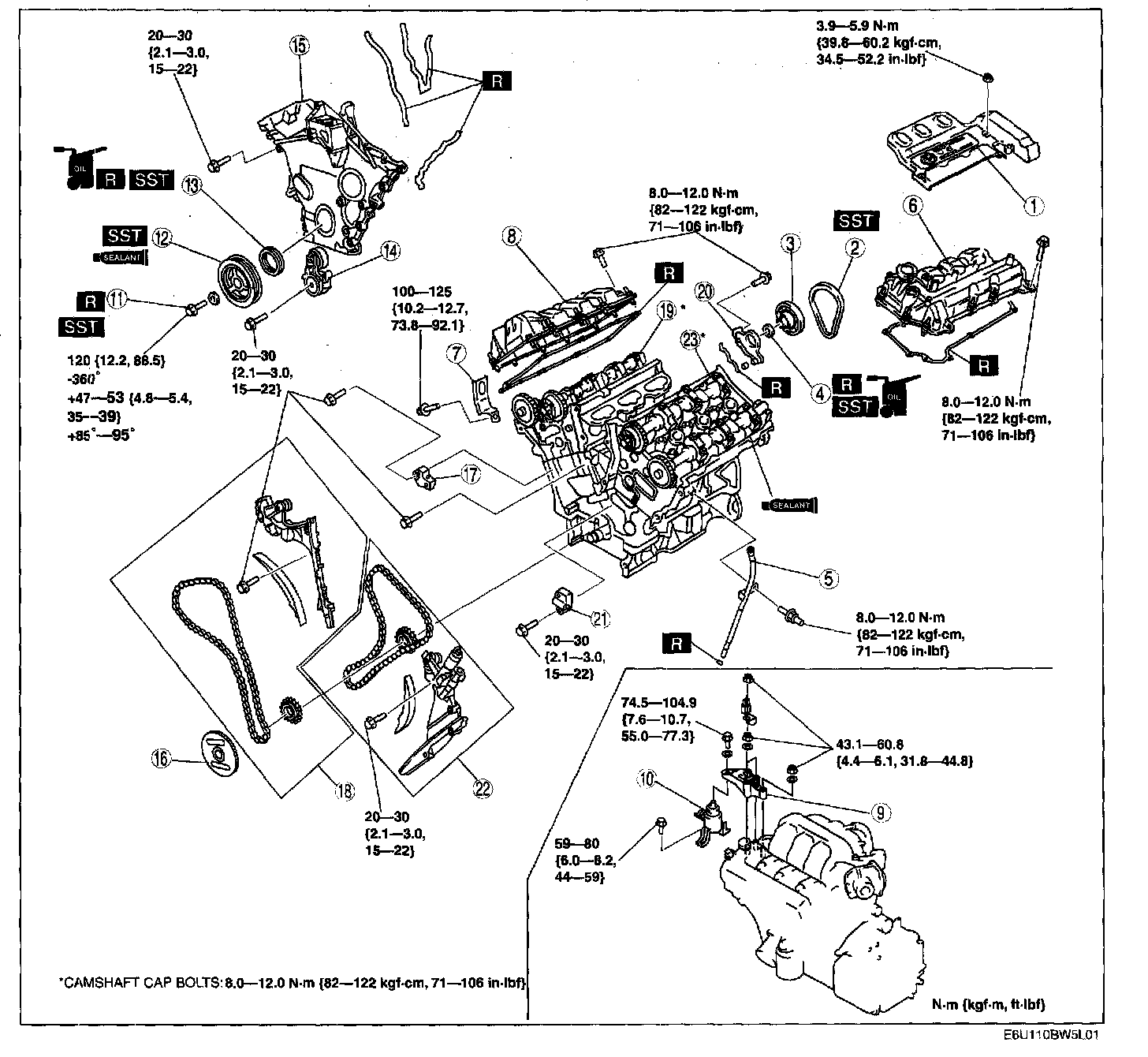

Tighten all bolts and studs in the order shown

Crankshaft Pulley Lock Bolt
Tighten the new crankshaft pulley lock bolt in four steps.
1)Tighten to 120 Nm 112.2 kgf-m, 88.5 ft. lbs.)
2)Loosen 360° (one full turn) in reverse order
3)Tighten to 47 - 53 Nm (4.8 - 5.4 kgf-m, 35 - 39ft.lbs.)
4)Tighten 85° - 95°
