DTC P2503: Notes
DTC P2503 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P2503 |
Generator output voltage signal no electricity |
| DETECTION CONDITION |
- PCM needs more than 20 A
from generator, and judges generator output voltage to be below 8.5 V
during engine running.
Diagnostic support note
- This is a continuous monitor (Other).
- MIL does not illuminate.
- PENDING CODE is available if PCM detects the above malfunction condition.
- FREEZE FRAME DATA is not available.
- DTC is stored in the PCM memory.
|

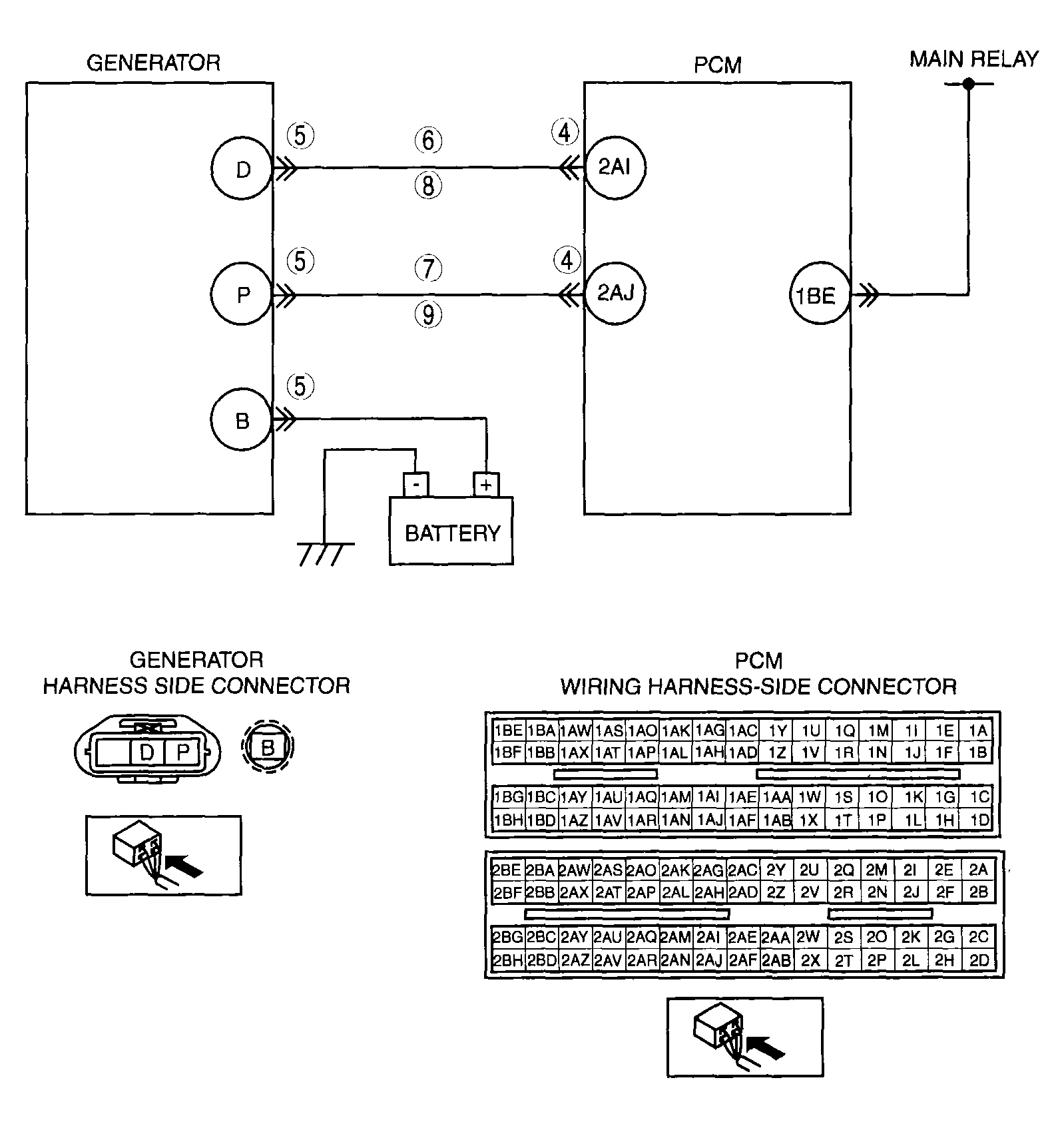

| POSSIBLE CAUSE |
- Generator malfunction
- PCM and/or generator are poorly connected.
- Open and/or short to GND in wiring harness from between generator terminal P and PCM terminal 2AJ
- Open and/or short to GND in wiring harness from between generator terminal D and PCM terminal 2AI
- Drive belt misadjustment
|
