6 s, 4D Hatchback, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
On-Board Diagnostic [Engine Control System AJ]
>>
Control System Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Control System Wiring Diagram

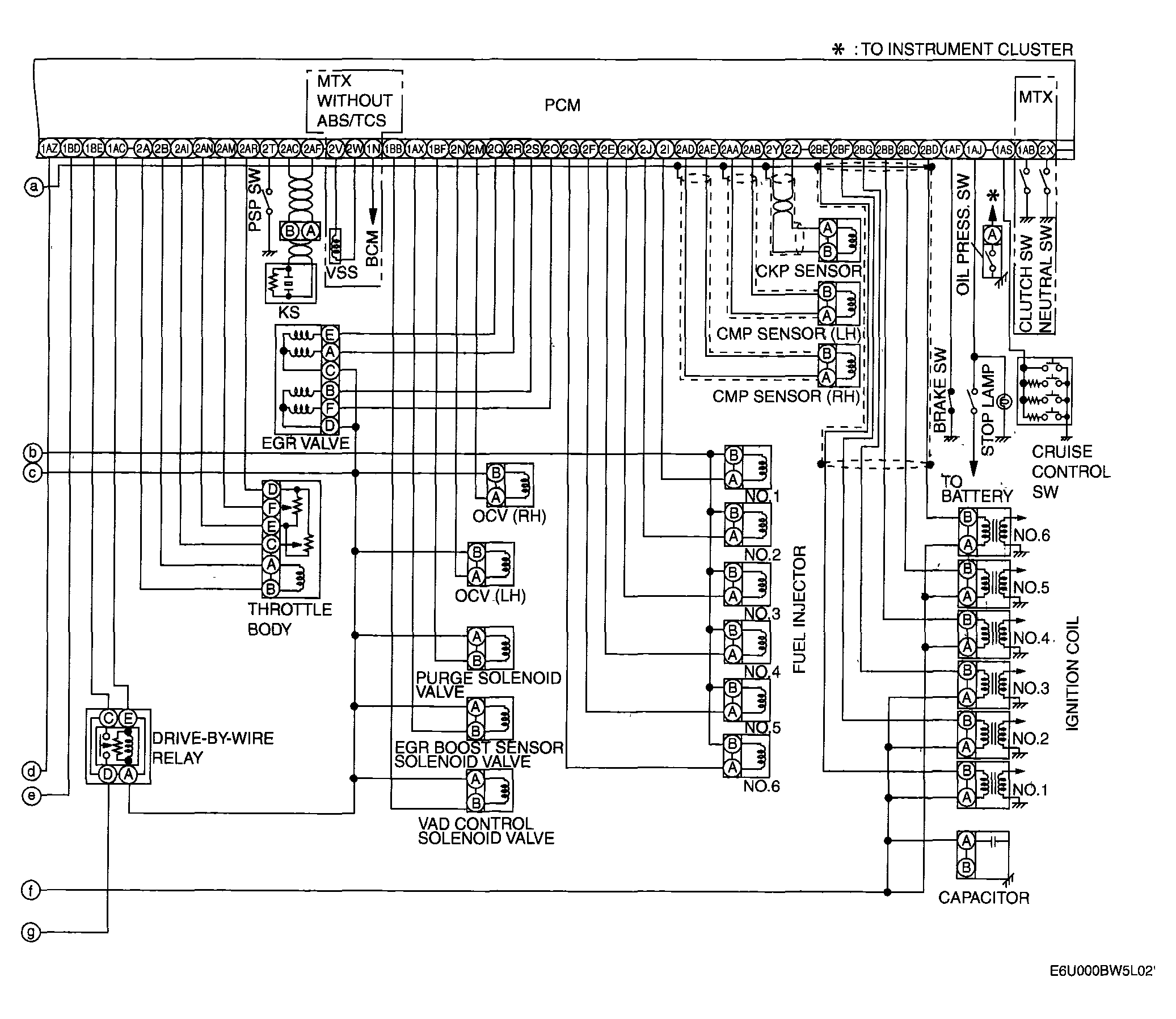

Fig 1: Engine Control System - Wiring Diagram (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

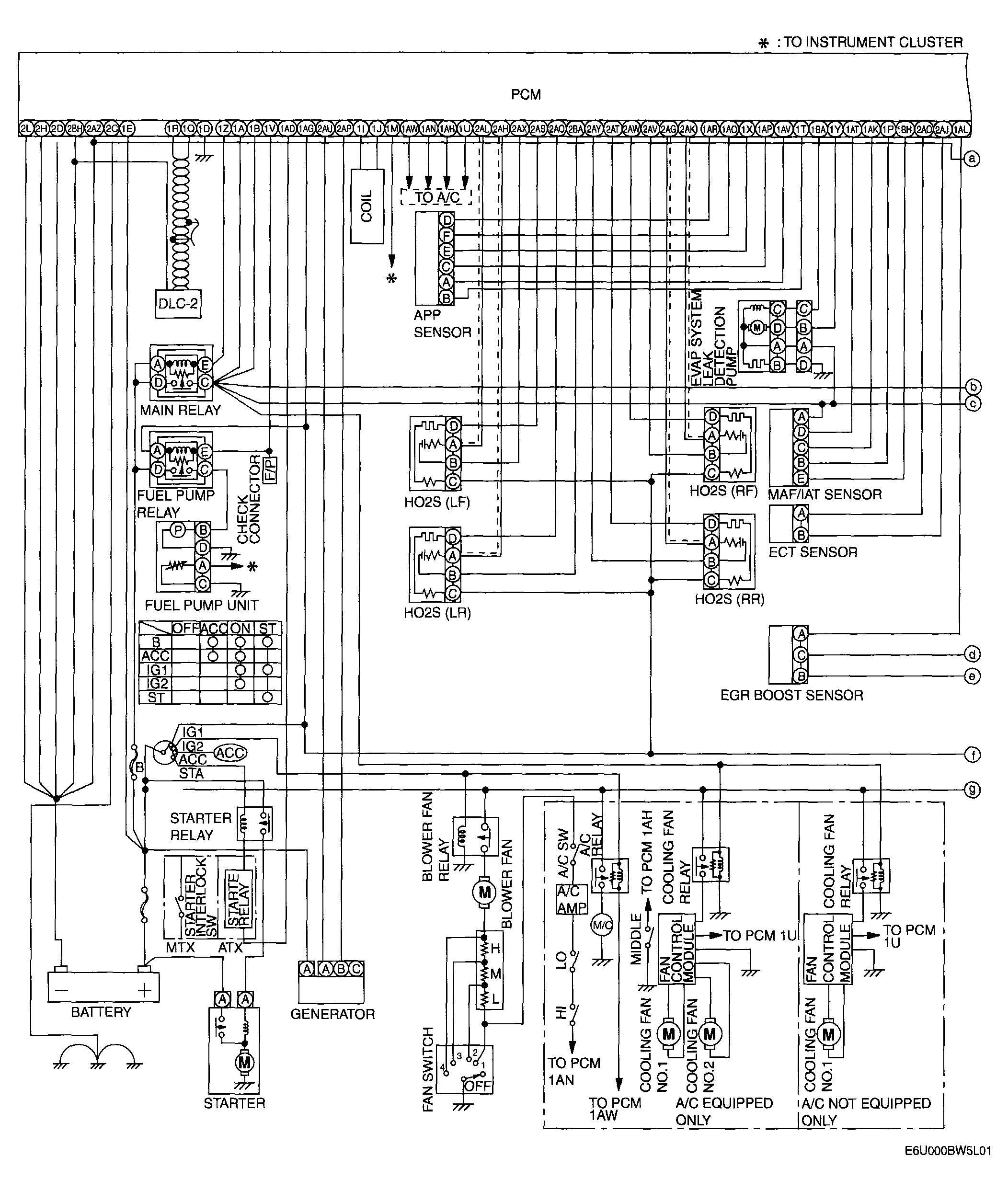

Fig 2: Engine Control System - Wiring Diagram (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
