DTC P0102: Notes
DTC P0102 [AJ] DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0102 |
MAF circuit low input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from the MAF sensor when the engine is running. If the input voltage at PCM terminal 1AK is 0.21 V or below
, the PCM determines that the MAF circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA is available.
- DTC is stored in the PCM memory.
|

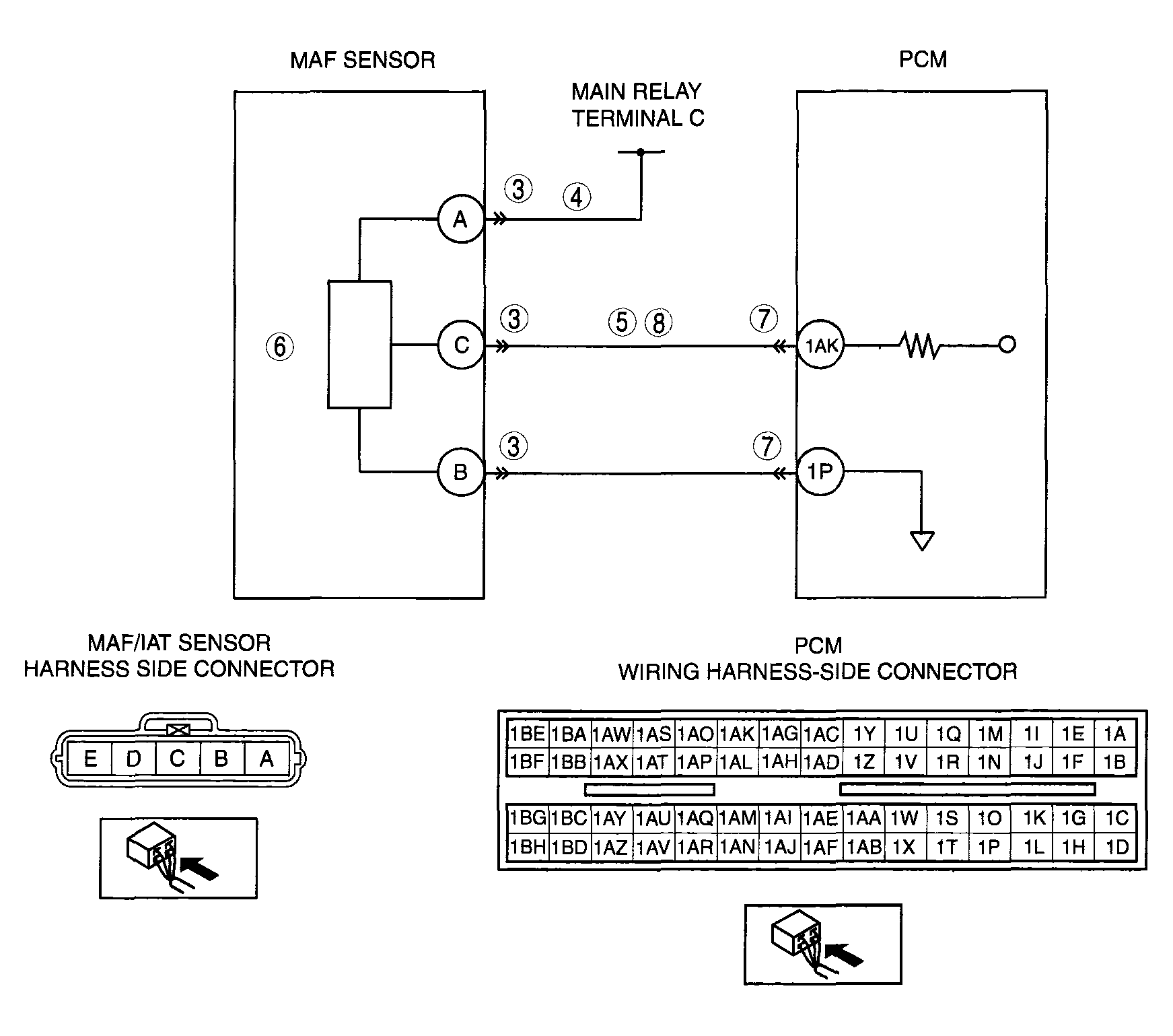

| POSSIBLE CAUSE |
- MAF sensor malfunction
- Connector or terminal malfunction
- Open circuit between main relay terminal C and MAF/IAT sensor terminal A
- Open circuit between MAF/IAT sensor terminal C and PCM terminal 1AK
- Short to ground circuit between MAF/IAT sensor terminal C and PCM terminal 1AK
- PCM malfunction
|
|
|
