DTC P0327: Notes
DTC P0327 [AJ] DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0327 |
KS circuit low input |
| DETECTION CONDITION |
- The PCM monitors input signal from the KS when the engine is running. If the input voltage at PCM terminals between 2AF and 2AC is below 0.01 V
, the PCM determines that the KS circuit has malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA is available.
- DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- KS malfunction
- Connector or terminal malfunction

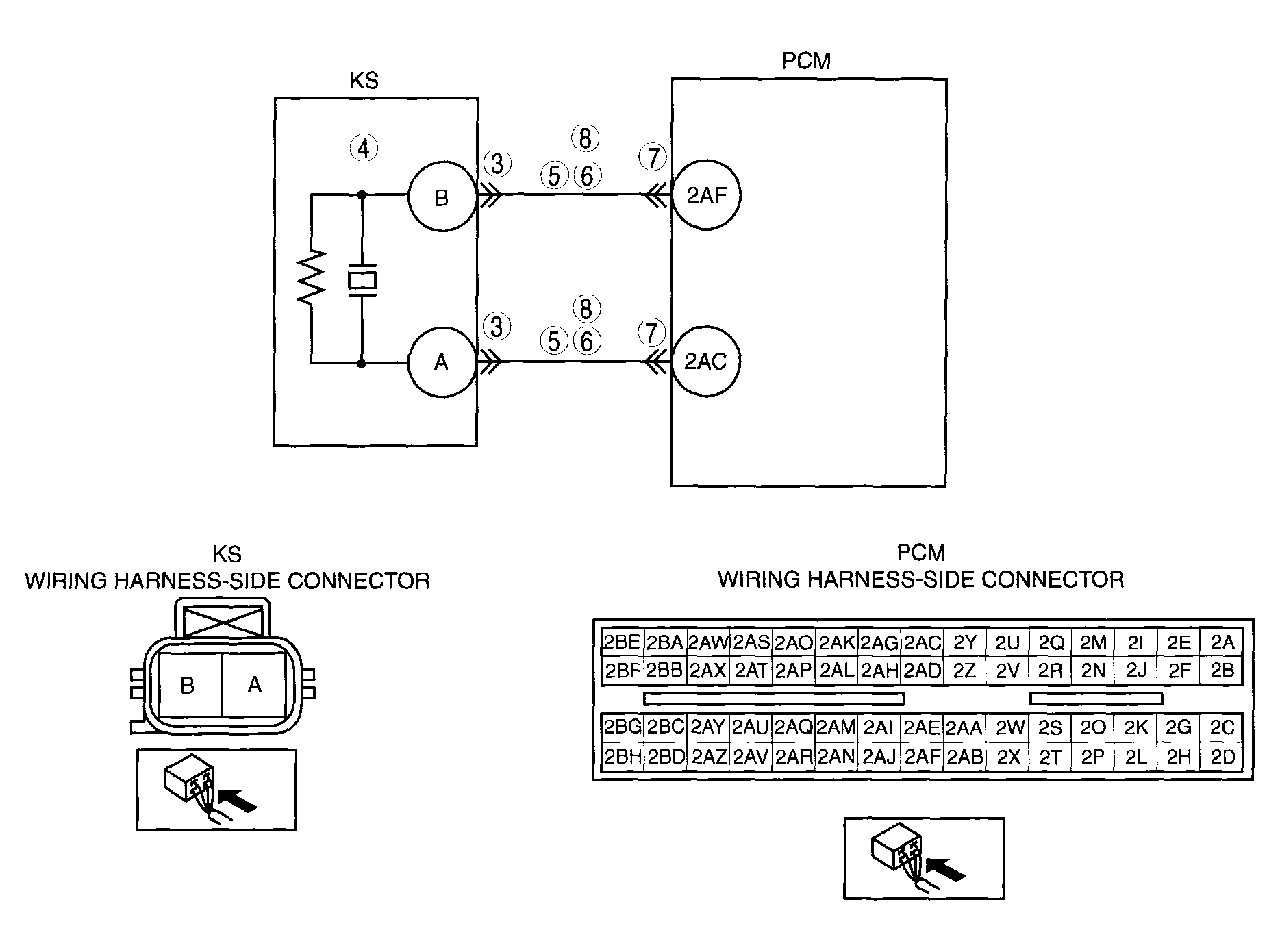

- Open circuit or short to ground in wiring harness between KS connector terminal B and PCM terminal 2AF
- Open circuit or short to ground in wiring harness between KS connector terminal A and PCM terminal 2AC
- Short KS two wires
- PCM malfunction
|
|
|
