DTC P0335: Notes
DTC P0335 [AJ] DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0335 |
CKP sensor circuit malfunction |
| DETECTION CONDITION |
- If the PCM does not receive the input voltage from the CKP sensor for 4.2 s
when MAF is 1.95 g/s {0.258 lb/min} or above
, the PCM determines that the CKP sensor circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- MIL illuminates if the PCM detects the above malfunction conditions during the first drive cycle.
- FREEZE FRAME DATA is available.
- DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- CKP sensor malfunction
- Connector or terminal malfunction
- CKP sensor is dirty
- CKP sensor pulse wheel malfunction

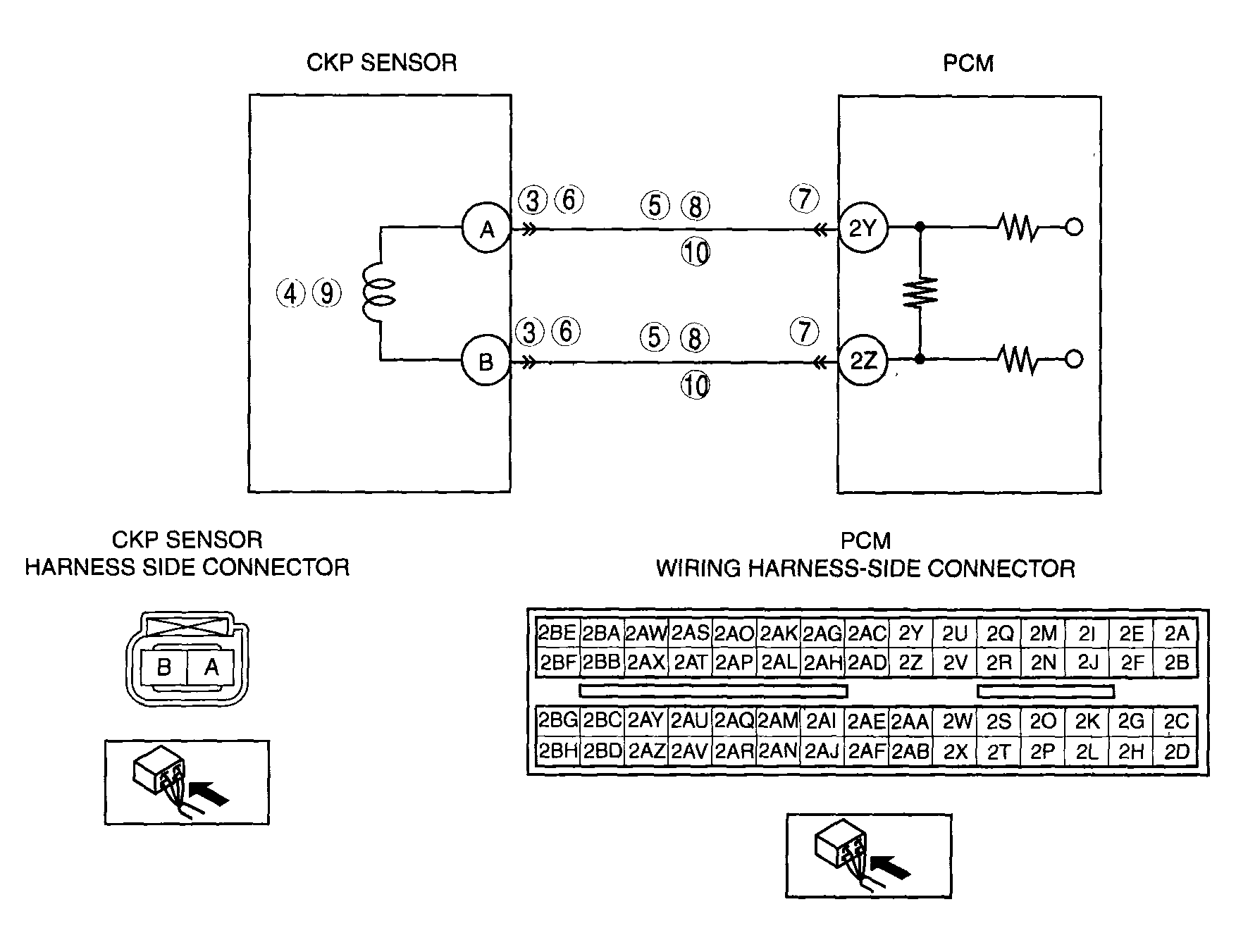

- Short to ground circuit between CKP sensor terminal B and PCM terminal 2Z
- Short to ground circuit between CKP sensor terminal A and PCM terminal 2Y
- Short to power circuit between CKP sensor terminal B and PCM terminal 2Z
- Short to power circuit between CKP sensor terminal A and PCM terminal 2Y
- Short each harness CKP sensor terminal A and B
- Open circuit between CKP sensor terminal B and PCM terminal 2Z
- Open circuit between CKP sensor terminal A and PCM terminal 2Y
- PCM malfunction
|
|
|
