DTC P2101: Notes

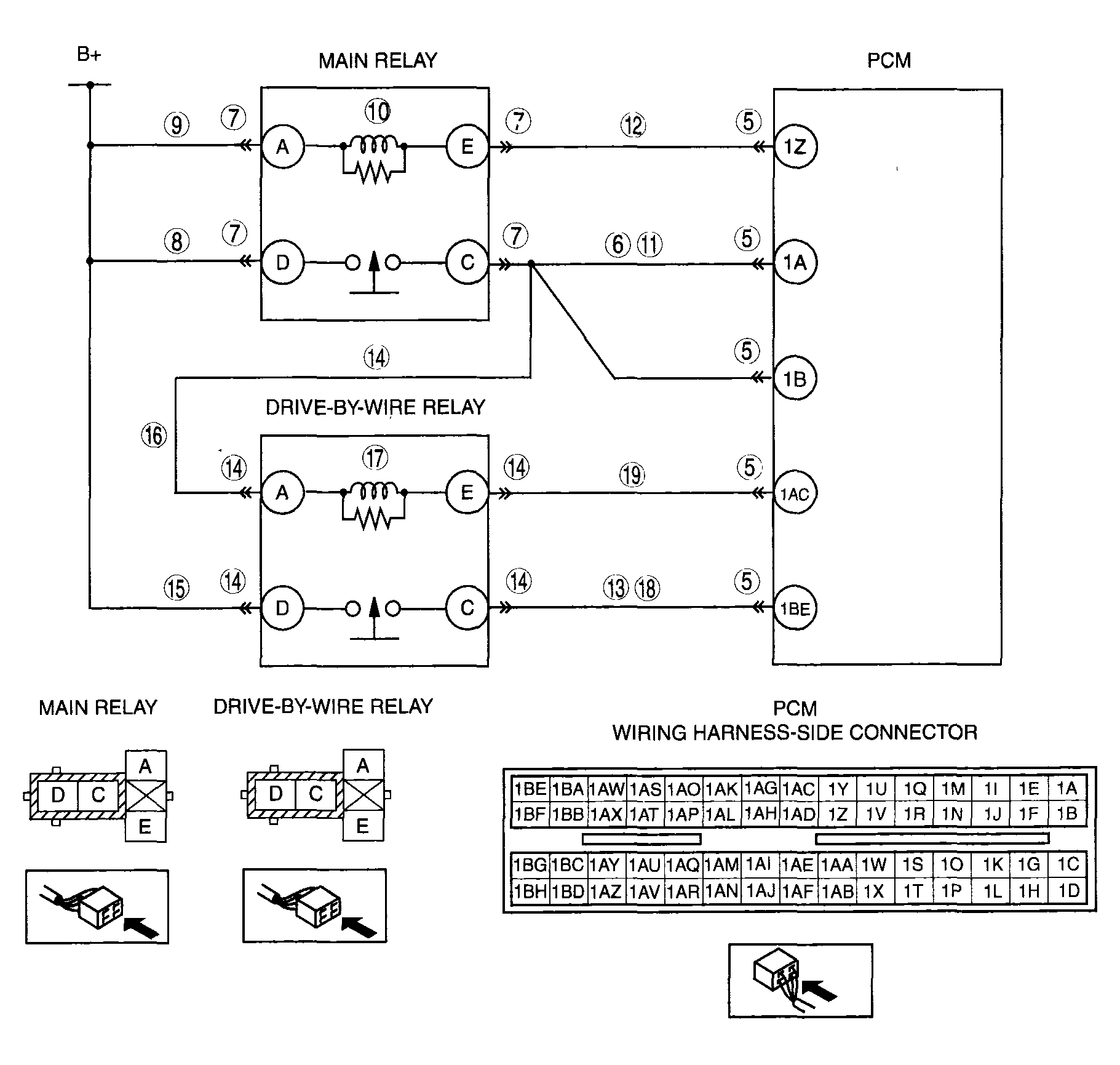

DTC P2101 [AJ] DETECTION CONDITION AND POSSIBLE CAUSES

DTC P2101	Throttle actuator control motor circuit range/performance
DETECTION CONDITION	The PCM monitors the input voltage from the drive-by-wire relay when the PCM turns the drive-by-wire relay on. If the input voltage is less than 5.0 V , the PCM determines that the drive-by-wire relay control circuit voltage is low. The PCM monitors the input voltage from the drive-by-wire relay when the PCM turns the drive-by-wire relay off. If the input voltage is more than 5.0 V , the PCM determines that the drive-by-wire relay control circuit voltage is high. Diagnostic support note This is a continuous monitor. (CCM) MIL illuminates if the PCM detects the above malfunction conditions during the first drive cycle. FREEZE FRAME DATA is available. The DTC is stored in the PCM memory.
POSSIBLE CAUSE	drive-by-wire relay and related circuit malfunction Main relay and related circuit malfunction Throttle position sensor No.1 and related circuit malfunction Throttle position sensor No.2 and related circuit malfunction PCM malfunction

DTC P2101

Throttle actuator control motor circuit range/performance

DETECTION CONDITION

The PCM monitors the input voltage from the drive-by-wire relay when the PCM turns the drive-by-wire relay on. If the input voltage is less than 5.0 V , the PCM determines that the drive-by-wire relay control circuit voltage is low.
The PCM monitors the input voltage from the drive-by-wire relay when the PCM turns the drive-by-wire relay off. If the input voltage is more than 5.0 V , the PCM determines that the drive-by-wire relay control circuit voltage is high.

Diagnostic support note

This is a continuous monitor. (CCM)
MIL illuminates if the PCM detects the above malfunction conditions during the first drive cycle.
FREEZE FRAME DATA is available.
The DTC is stored in the PCM memory.

POSSIBLE CAUSE
