ABS Control Module Connector End View (C135)

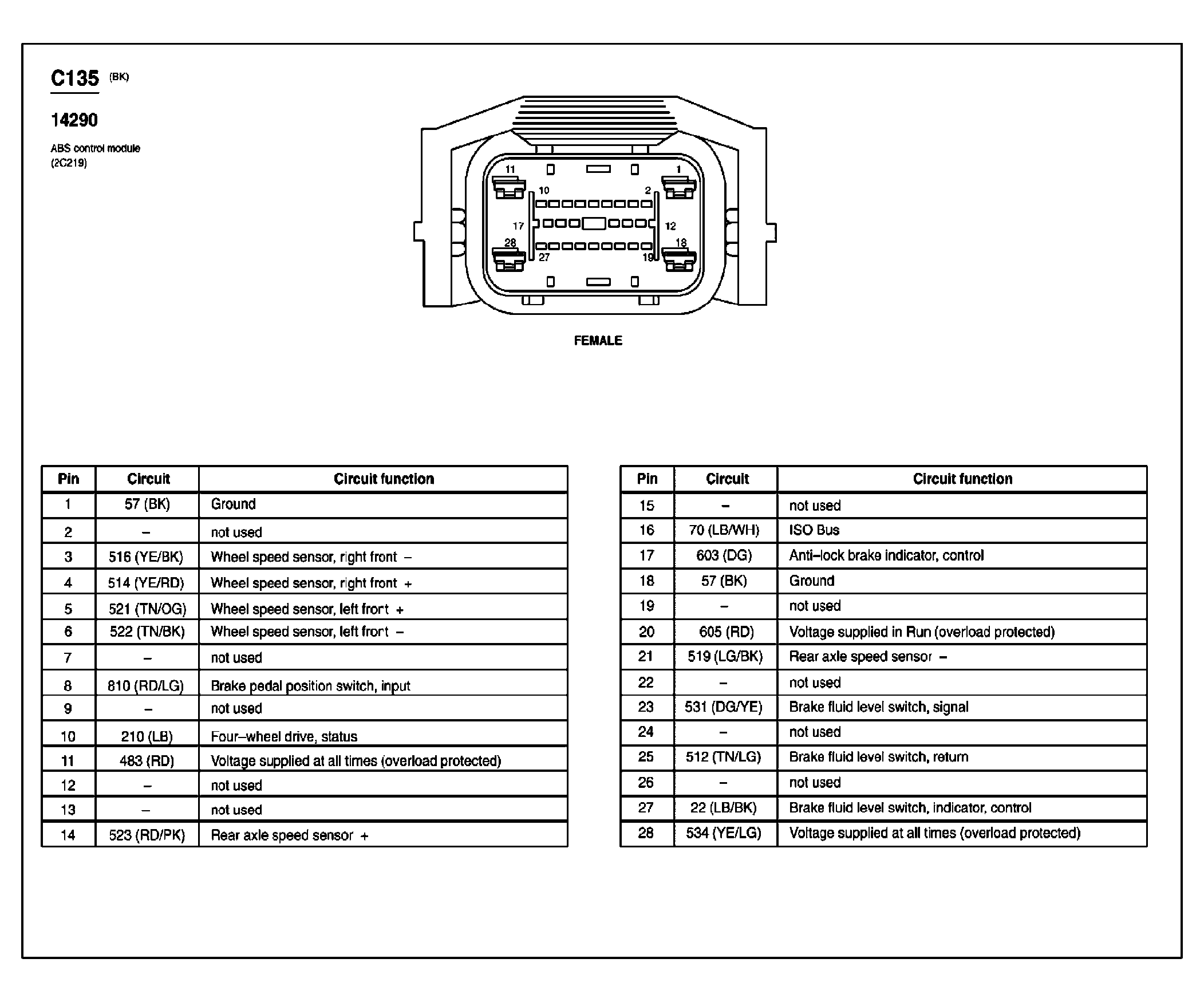

Fig 1: ABS Control Module Connector End View (C135)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
