Steering Column MULTIFUNCTION Switch: Notes

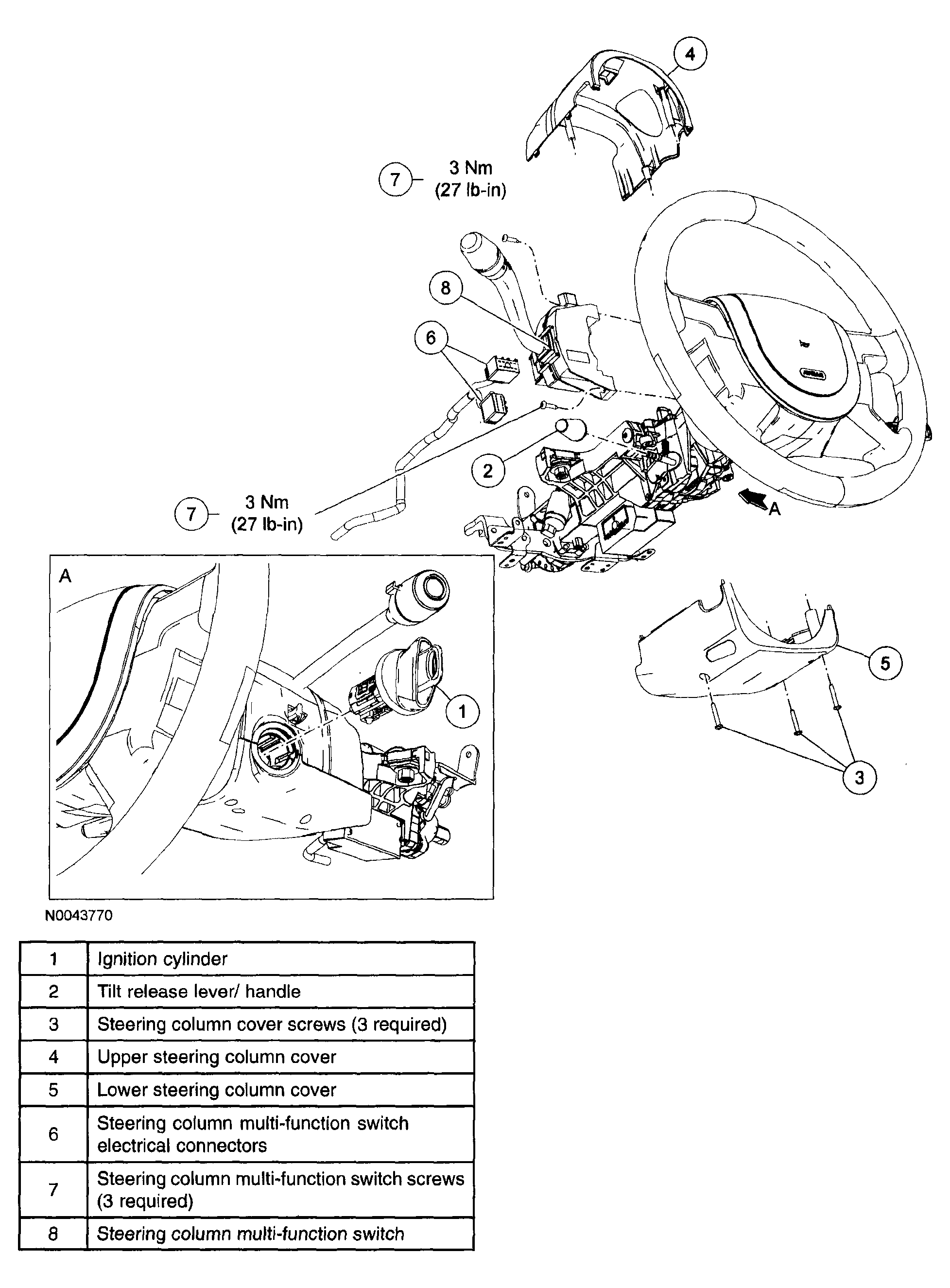

Fig 1: Exploded View - Steering Column Multifunction Switch With Torque Specifications
G04309703Courtesy of MAZDA MOTORS CORP.
