Front Seat Disassembly/Assembly: Notes
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Handling the front seat (with a side air bag) improperly can accidentally deploy the side air bag, which may seriously injure you. Read the service warnings before handling the front seat (with a side air bag). (See AIR BAG SAFETY PRECAUTIONS .)
- For vehicles with side air bags, remove the side air bag module. (See SIDE AIR BAG MODULE .)

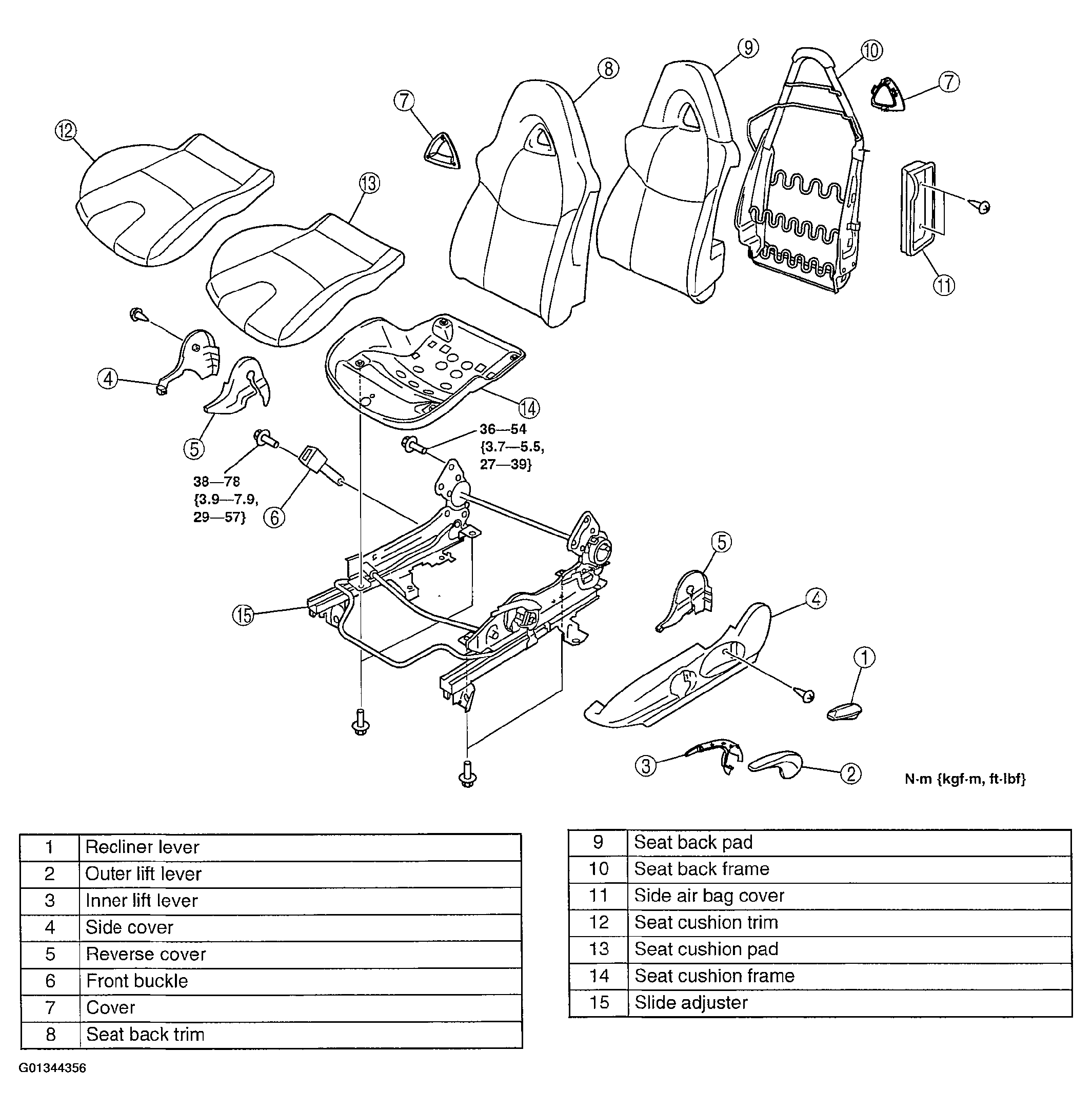

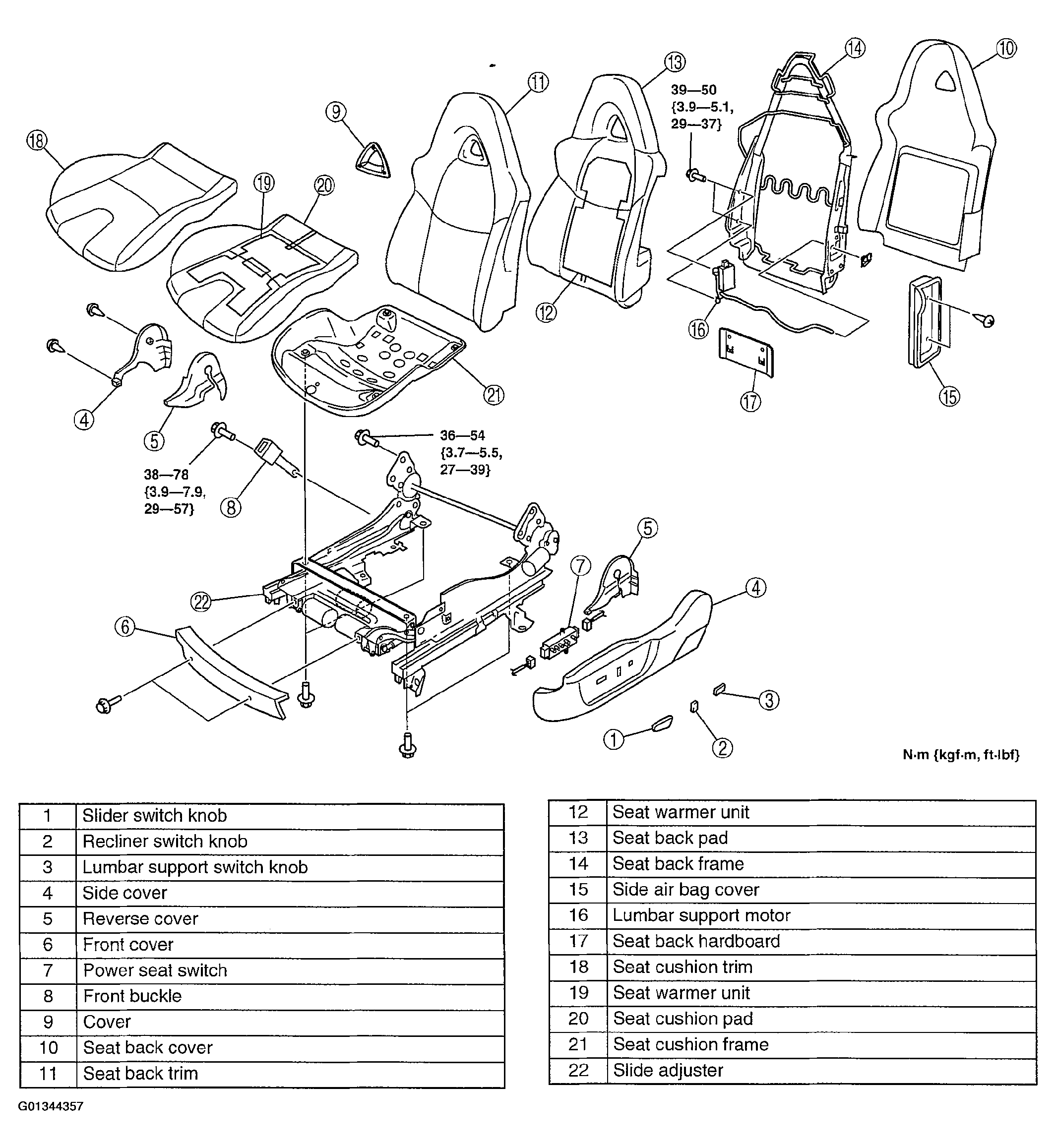

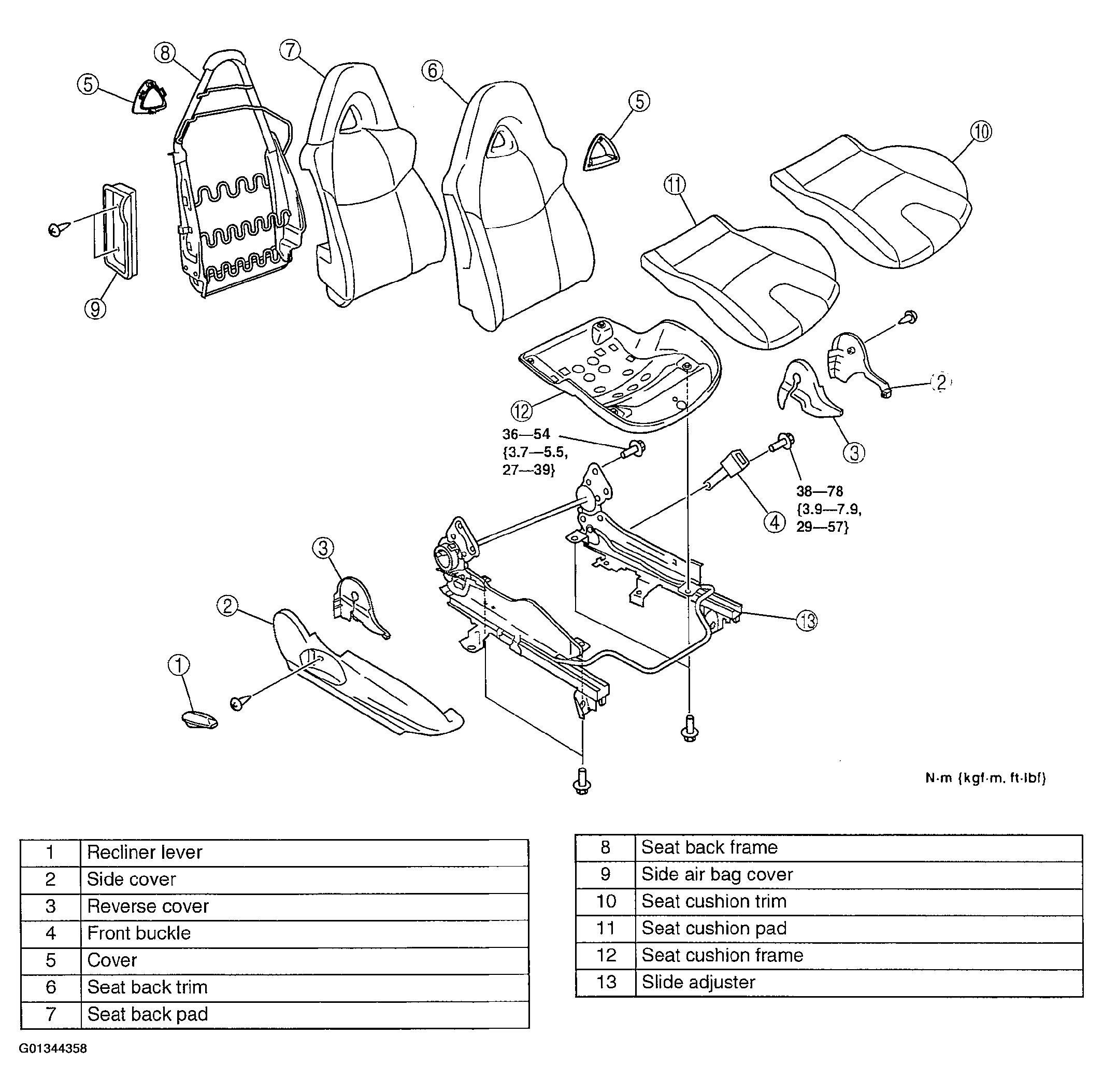

- Disassemble in the order indicated in Figure , Figure or Figure .
- Assemble in the reverse order of disassembly.
