Front Seat Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Handling the front seat (with a side air bag) improperly can accidentally deploy the side air bag, which may seriously injure you. Read the service warnings before handling the front seat (with a side air bag). (See AIR BAG SAFETY PRECAUTIONS .)
  1. Turn the ignition switch to the LOCK position.
  2. Disconnect the negative battery cable and wait for 1 min or more.
  3. Disconnect the connector.

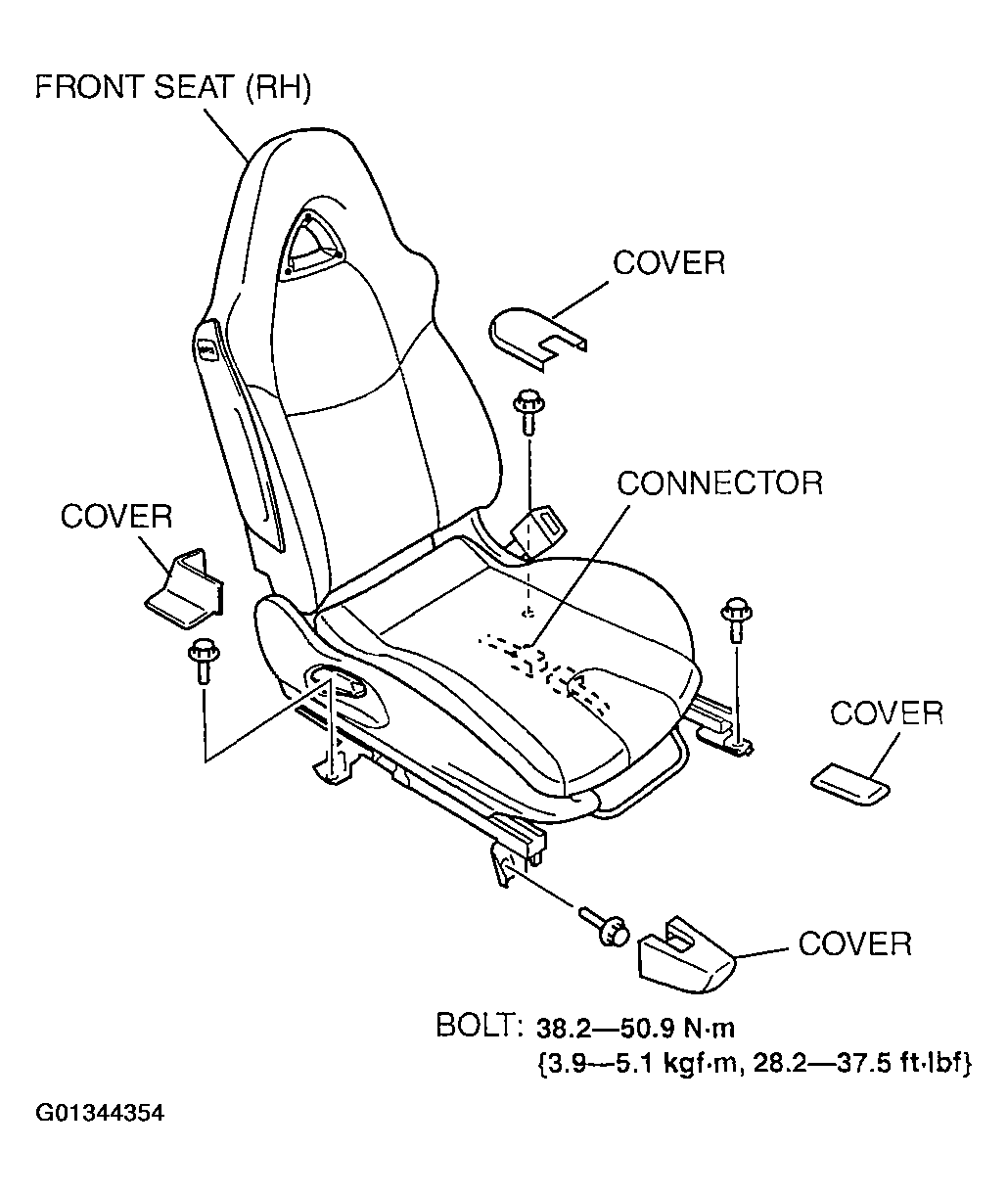

    Fig 1: Removing/Installing Front Seat (RH)
    G01344354Courtesy of MAZDA MOTORS CORP.
  4. Remove the covers.

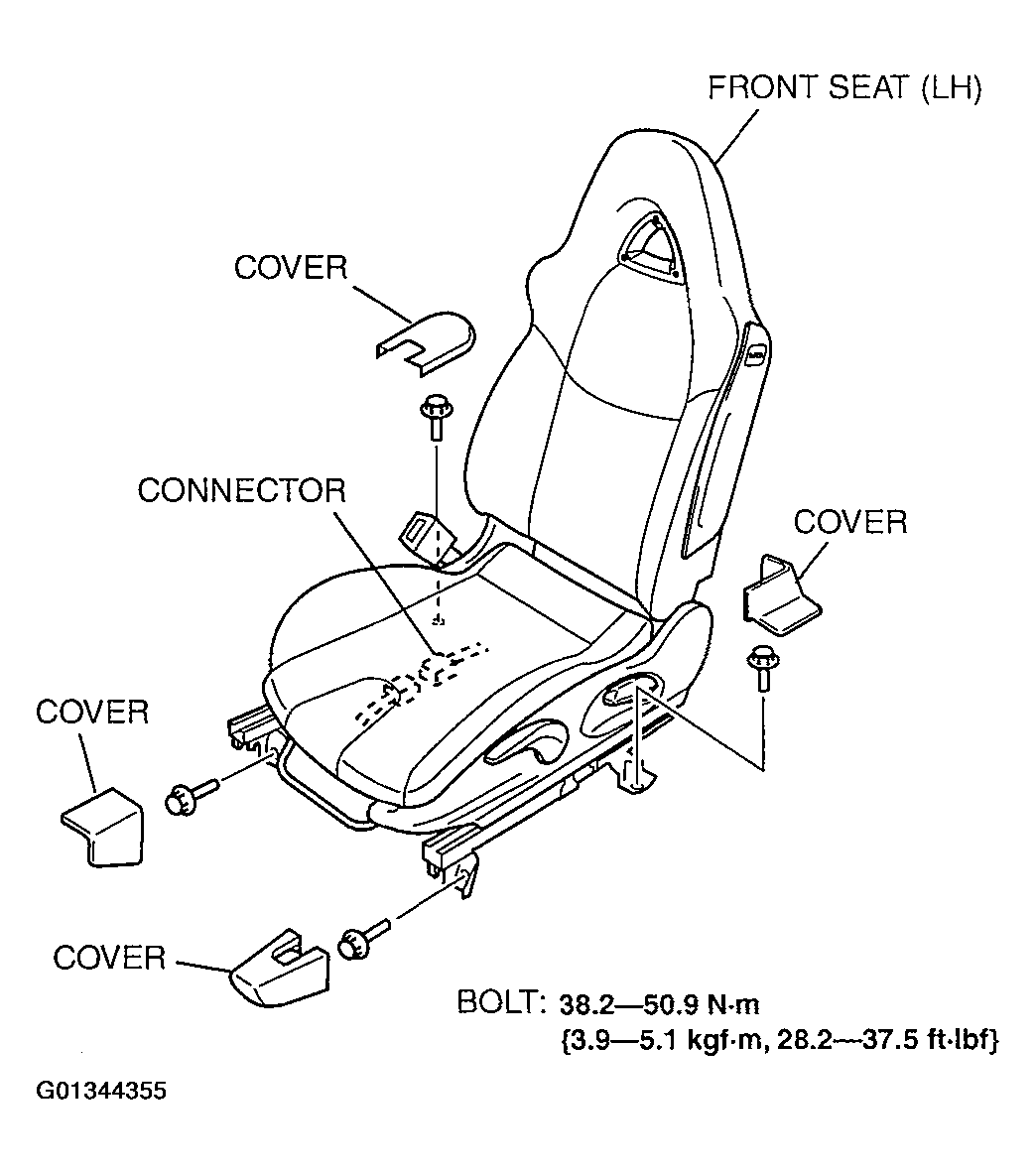

    Fig 2: Removing/Installing Front Seat (LH)
    G01344355Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolts, then remove the front seat.
  6. Install in the reverse order of removal.
