Seat Front Removal / Installation: Notes

60 Percent Seat

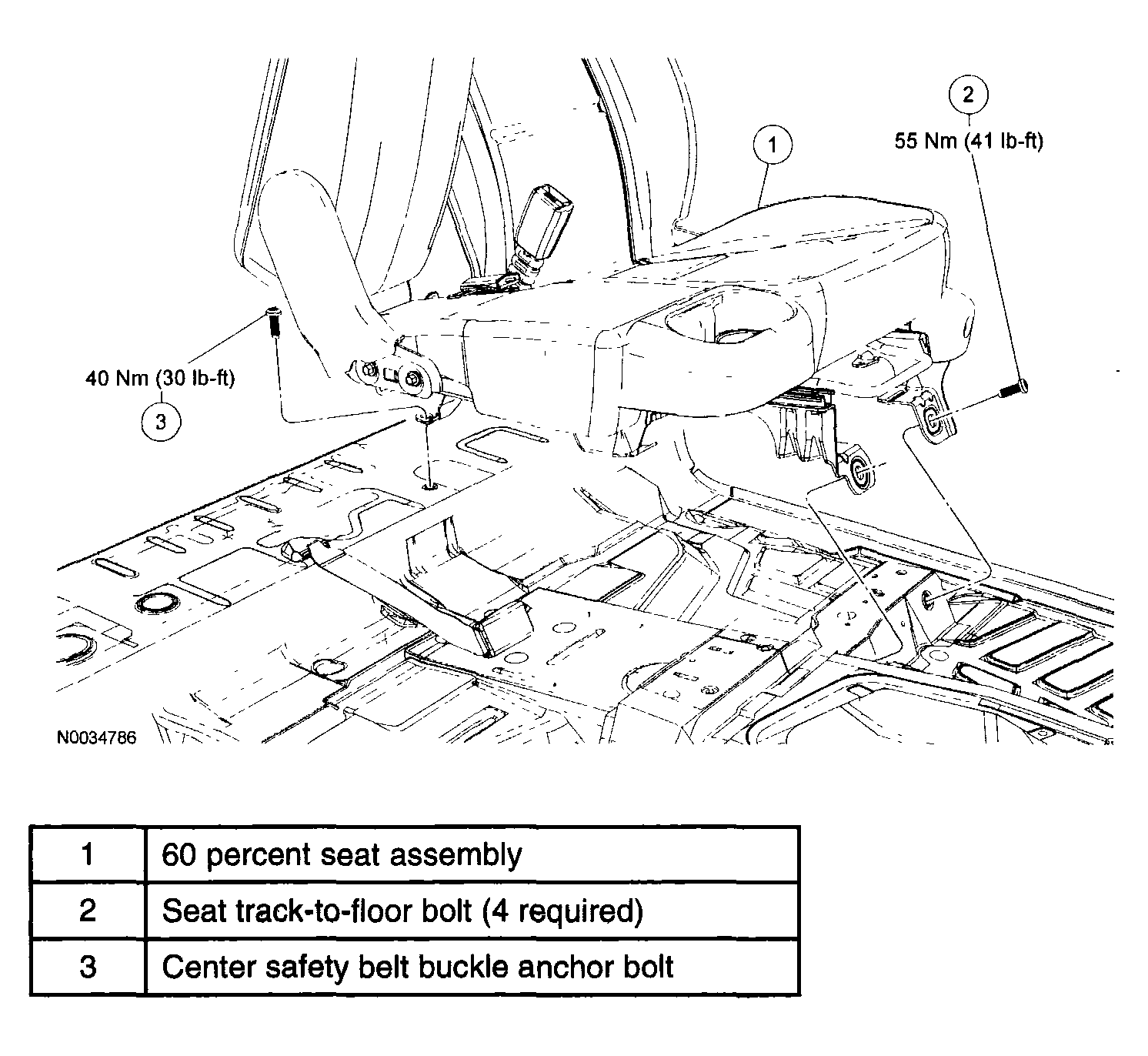

Fig 1: Removing & Installing 60 Percent Seat With Torque Specifications
G04310259Courtesy of MAZDA MOTORS CORP.

40 Percent Seat

NOTE:
  • Passenger seat shown, driver 40 percent similar.
Fig 2: Removing & Installing 40 Percent Seat (Passenger Seat) With Torque Specifications
G04310260Courtesy of MAZDA MOTORS CORP.
