With PSD

  1. Disconnect the sliding door lock actuator connector.
  2. Inspect for continuity between the sliding door lock-link switch terminals using an ohmmeter.
Fig 1: Sliding Door Lock-Link Switch Continuity Chart (With PSD)
G04329518Courtesy of MAZDA MOTORS CORP.

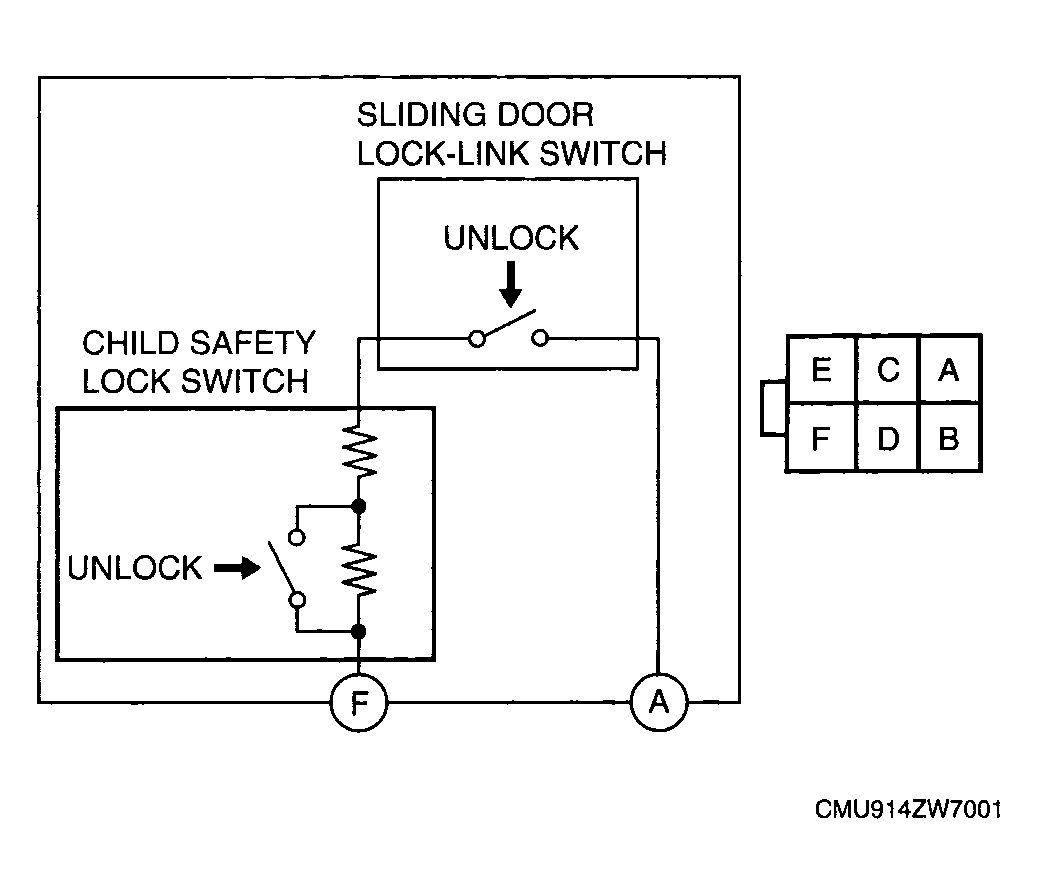

Fig 2: Sliding Door Lock-Link Switch Terminals (With PSD)
G04329519Courtesy of MAZDA MOTORS CORP.
