Theft-Deterrent System Location Index

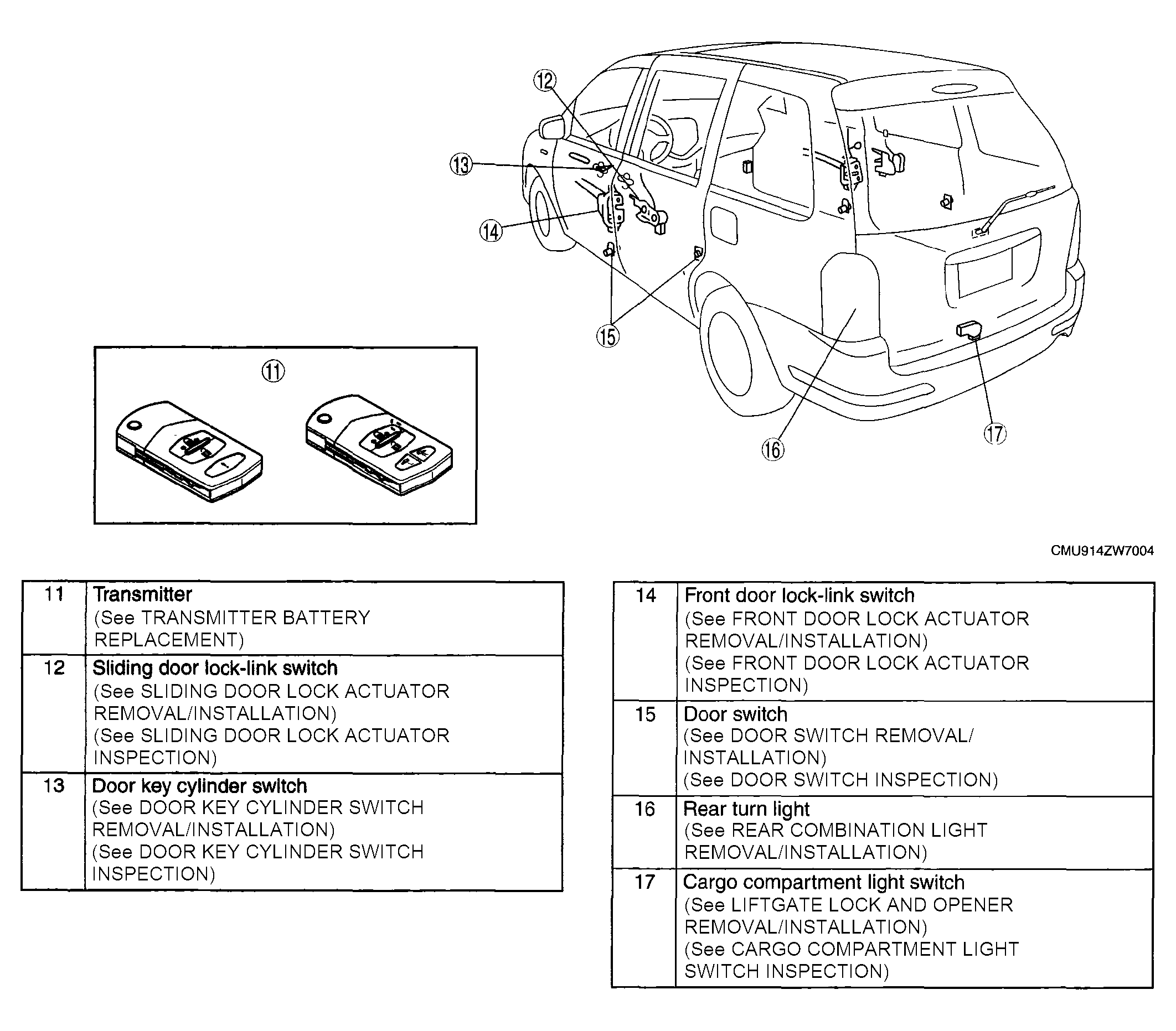

Fig 1: Identifying Theft-Deterrent System Components Location (1 of 2)
Courtesy of MAZDA MOTORS CORP.
Fig 2: Identifying Theft-Deterrent System Components Location (2 of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
