On-board Diagnostic Function

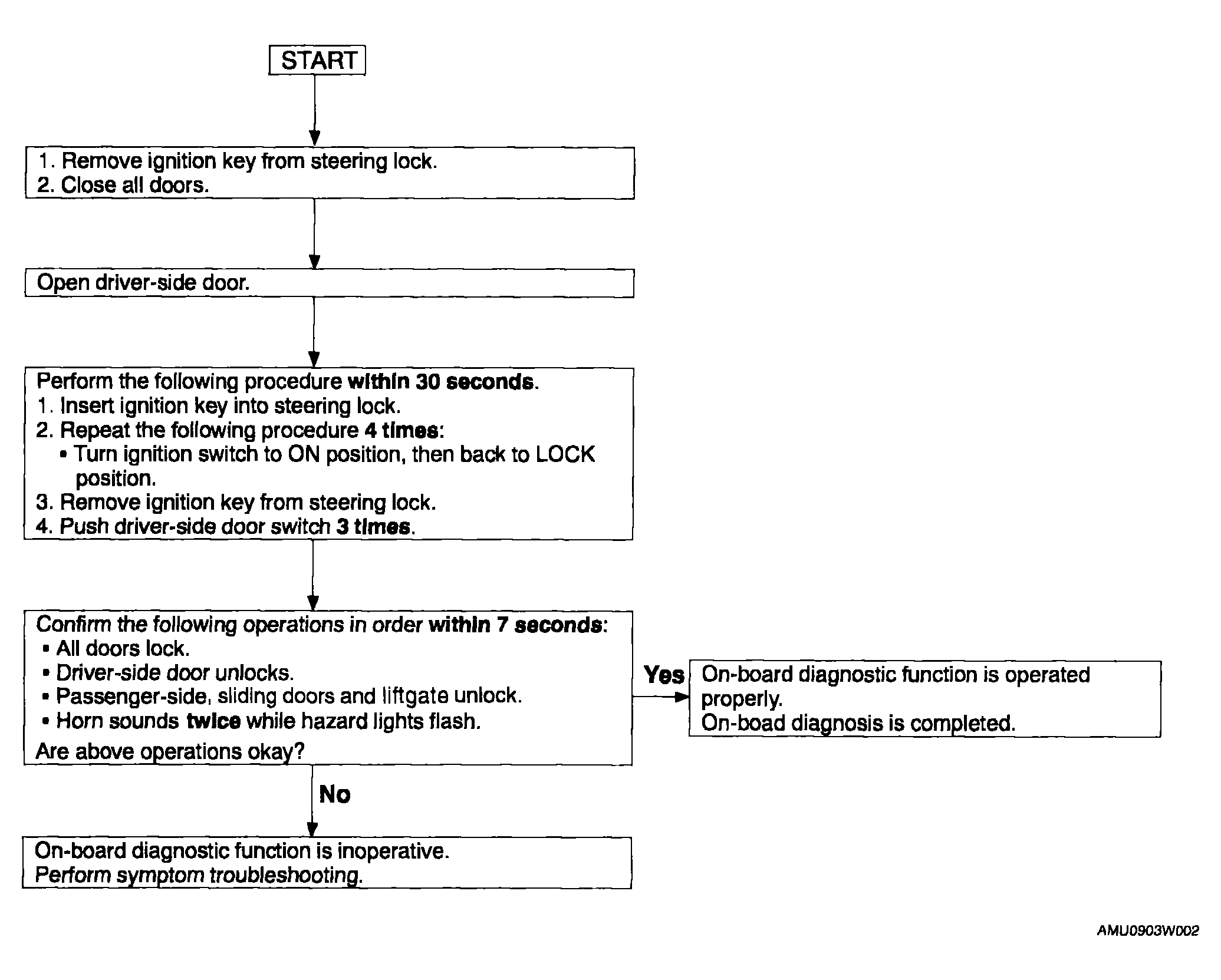

Fig 1: Keyless Entry System On-Board Diagnostic Flow Chart
Courtesy of MAZDA MOTORS CORP.
