Console Disassembly/Assembly

  1. Disassemble in the order indicated in Fig 1.
  2. Assemble in the reverse order of disassembly.

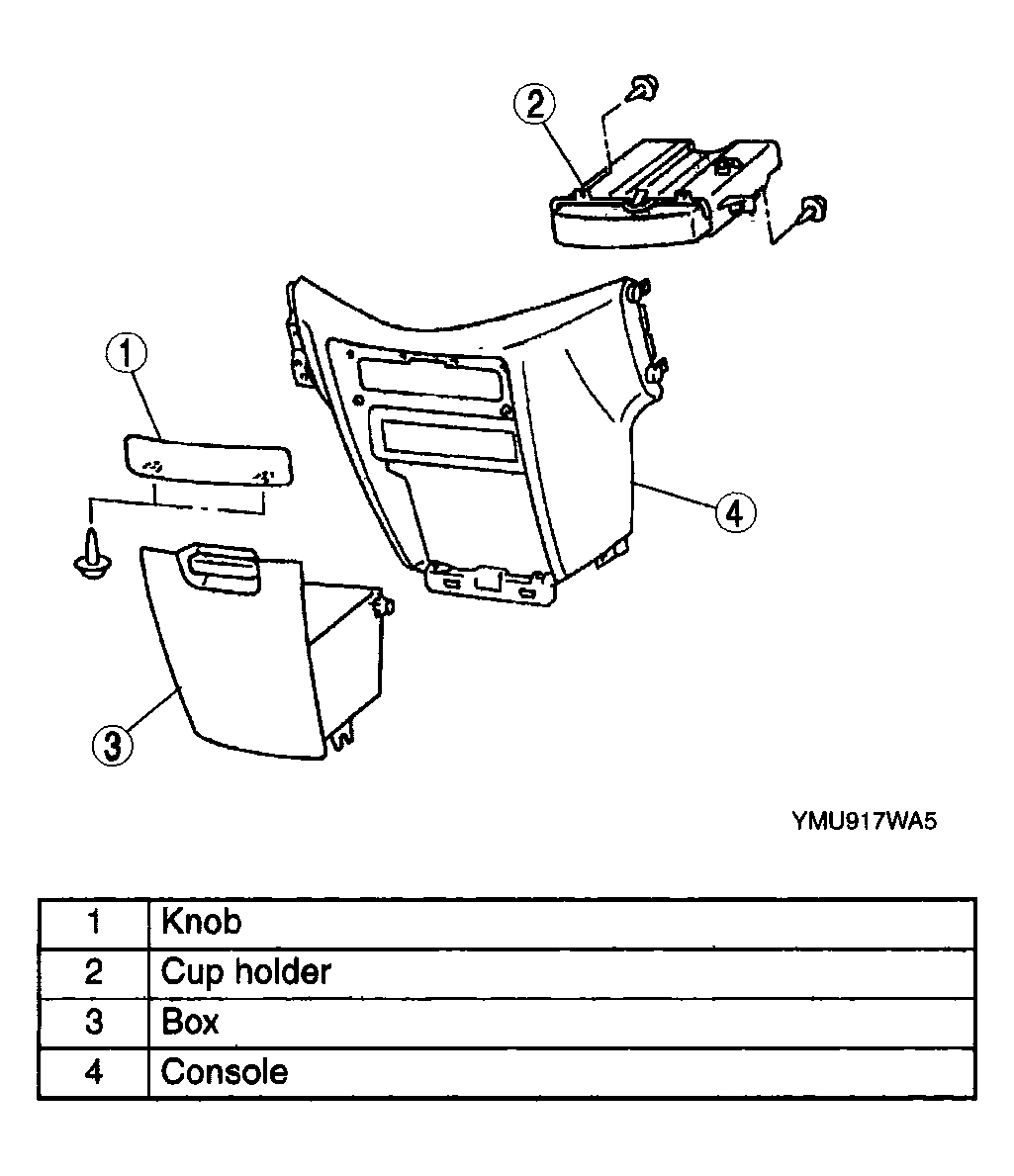

Fig 1: Disassembled View Of Console
G04329628Courtesy of MAZDA MOTORS CORP.
