Abs And TCS System Diagram

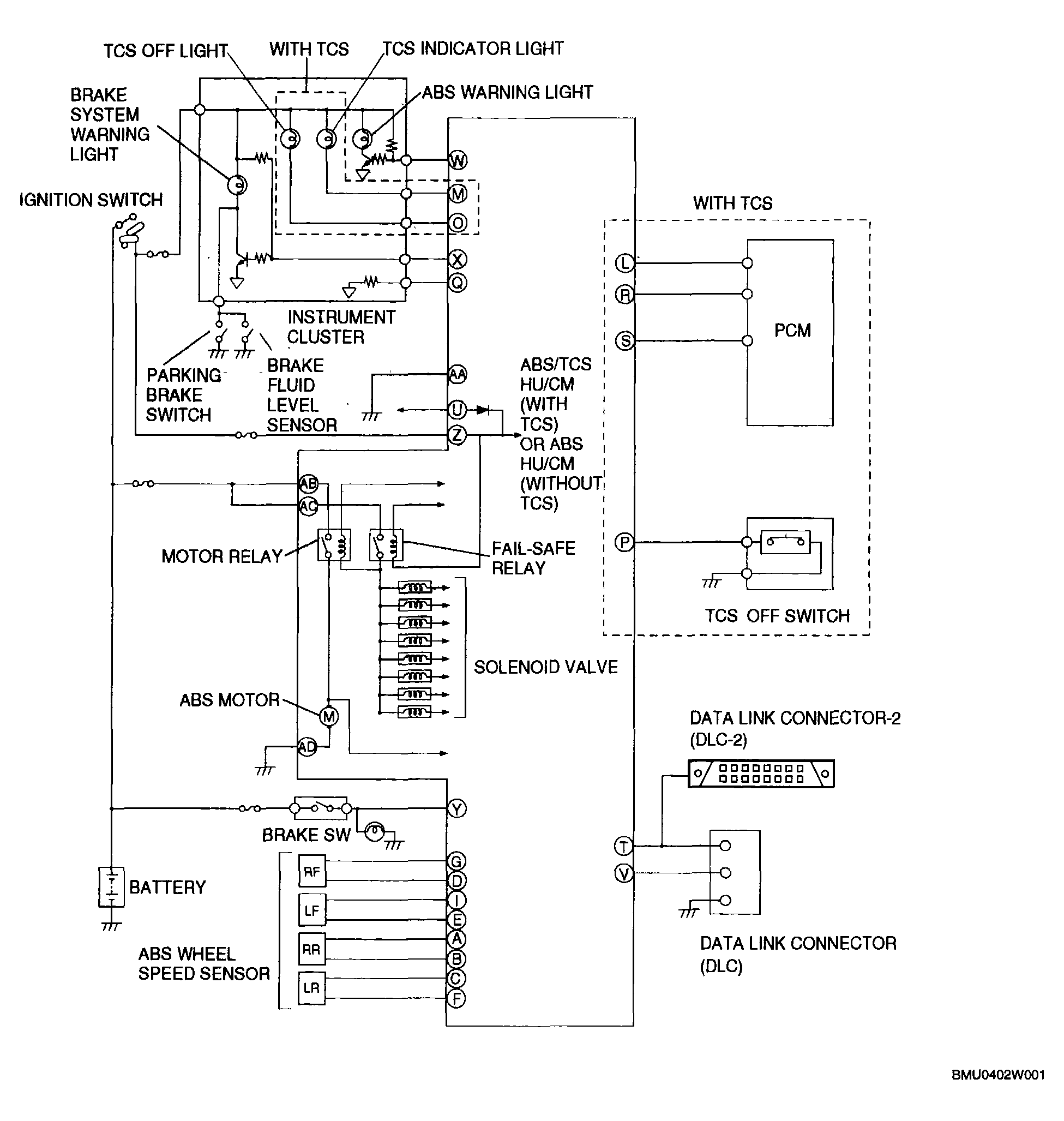

Fig 1: ABS And TCS - Wiring Diagram

G04328576

Courtesy of MAZDA MOTORS CORP.
