Oil Pan Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Drain the engine oil. (See ENGINE OIL REPLACEMENT .)
  3. Remove the front pipe. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in Fig 1.

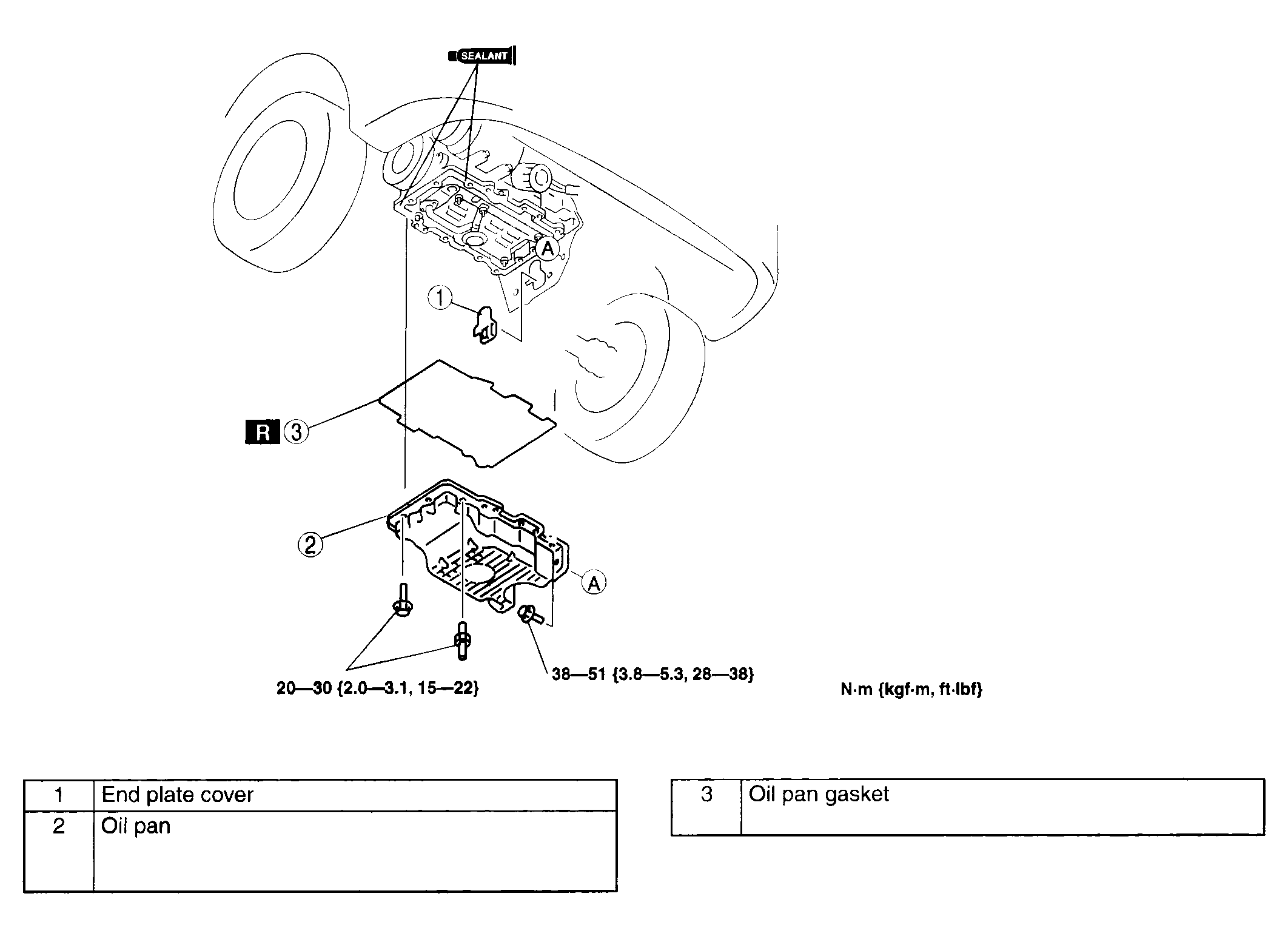

    Fig 1: Removing/Installing Oil Pan With Torque Specifications
    G04328085Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
  6. Start the engine and inspect for engine oil leakage.
