Non-OBD II Regulation Vehicle

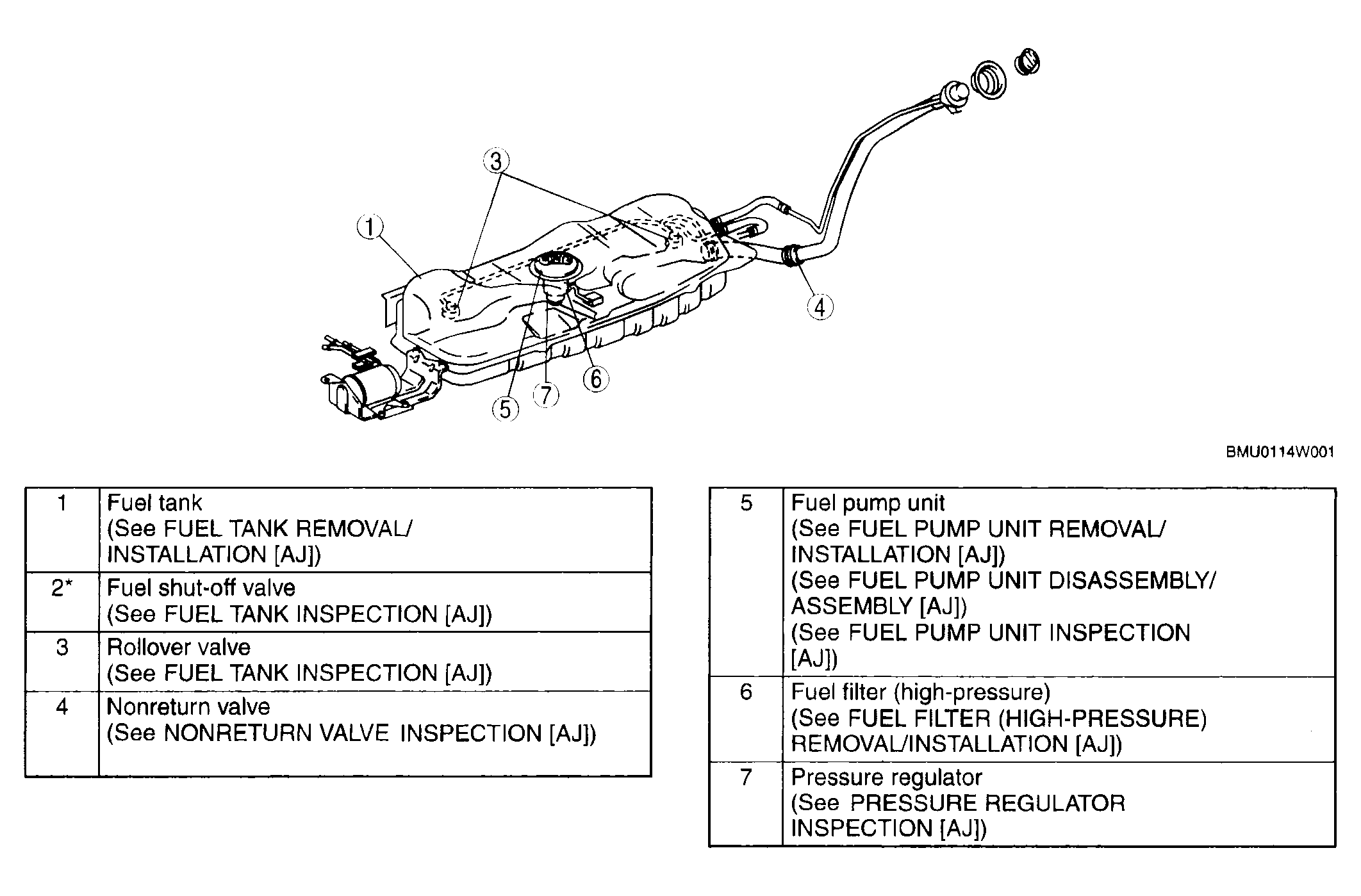

Fig 1: Identifying Fuel System Components Location (Fuel Tank Side) (2 Of 2)
G04328133

* : OBD II regulation vehicle
