Breather Hose Installation Note

  1. Fit the breather hose onto the respective fittings, and install clamps as shown.

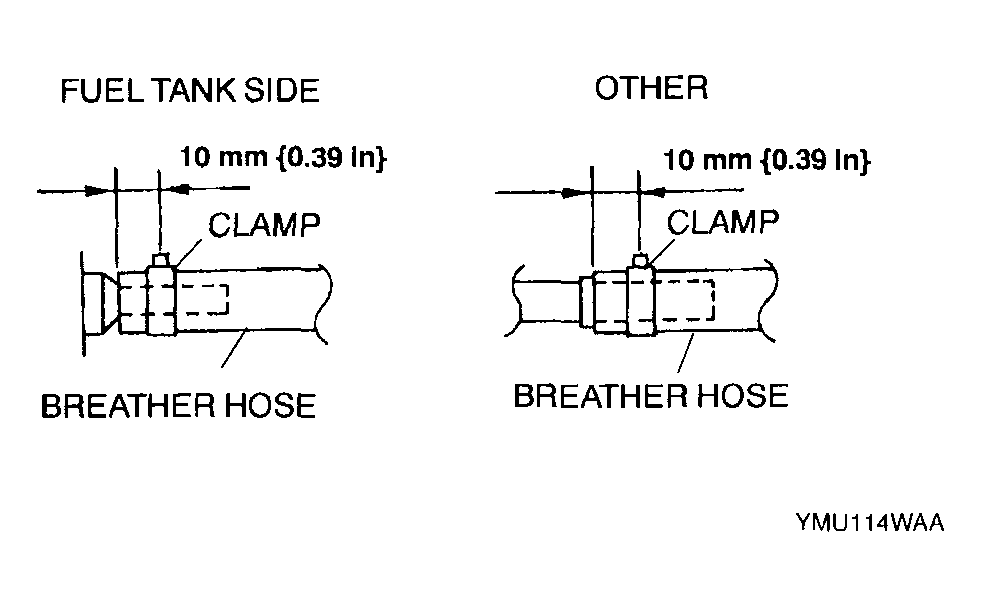

Fig 1: Identifying Breather Hose Clamp
G04328145
