With immobilizer system

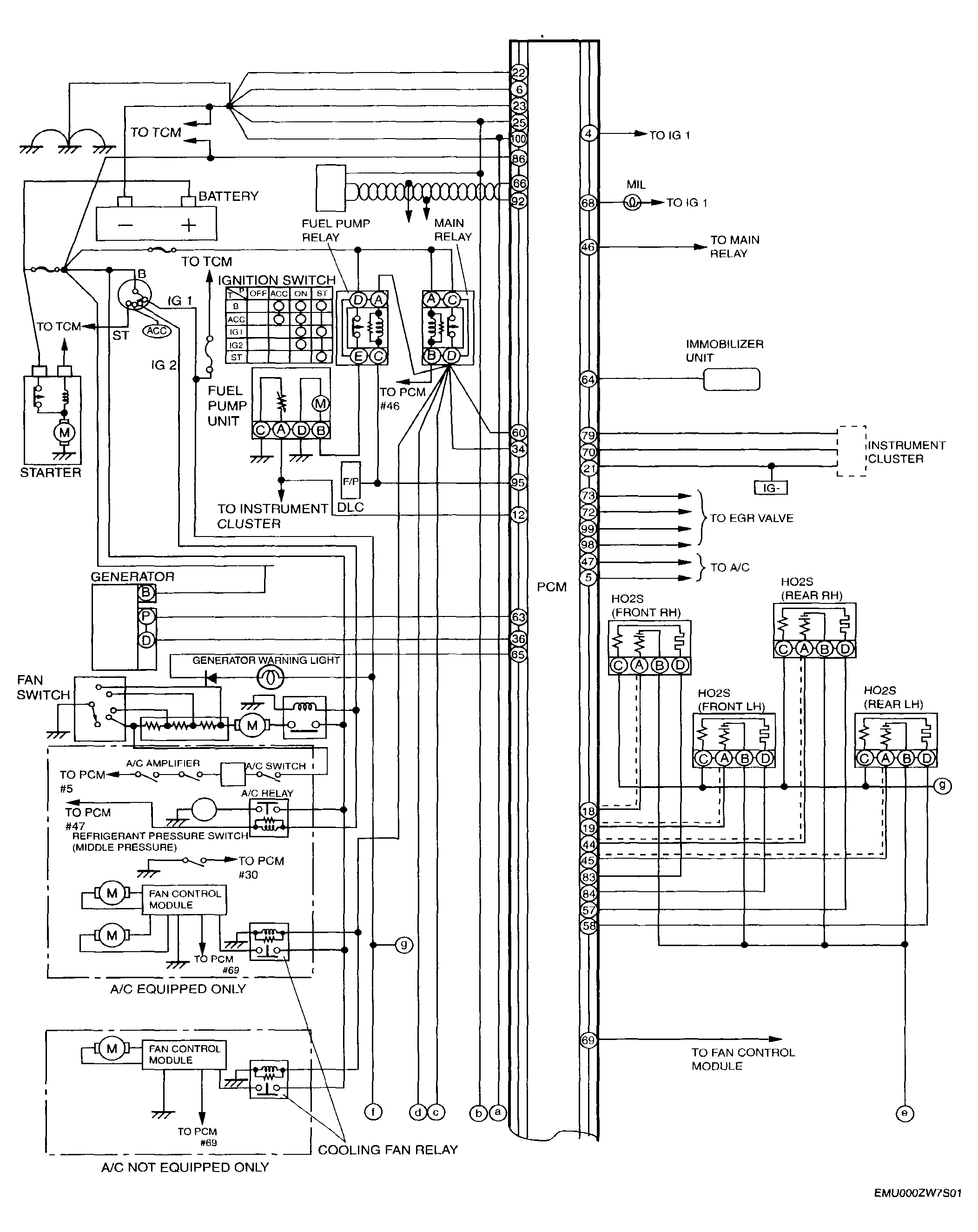

Fig 1: Control System Wiring Diagram [AJ] - With Rear HO2S Model - With Immobilizer System (1 of 2)
Courtesy of MAZDA MOTORS CORP.

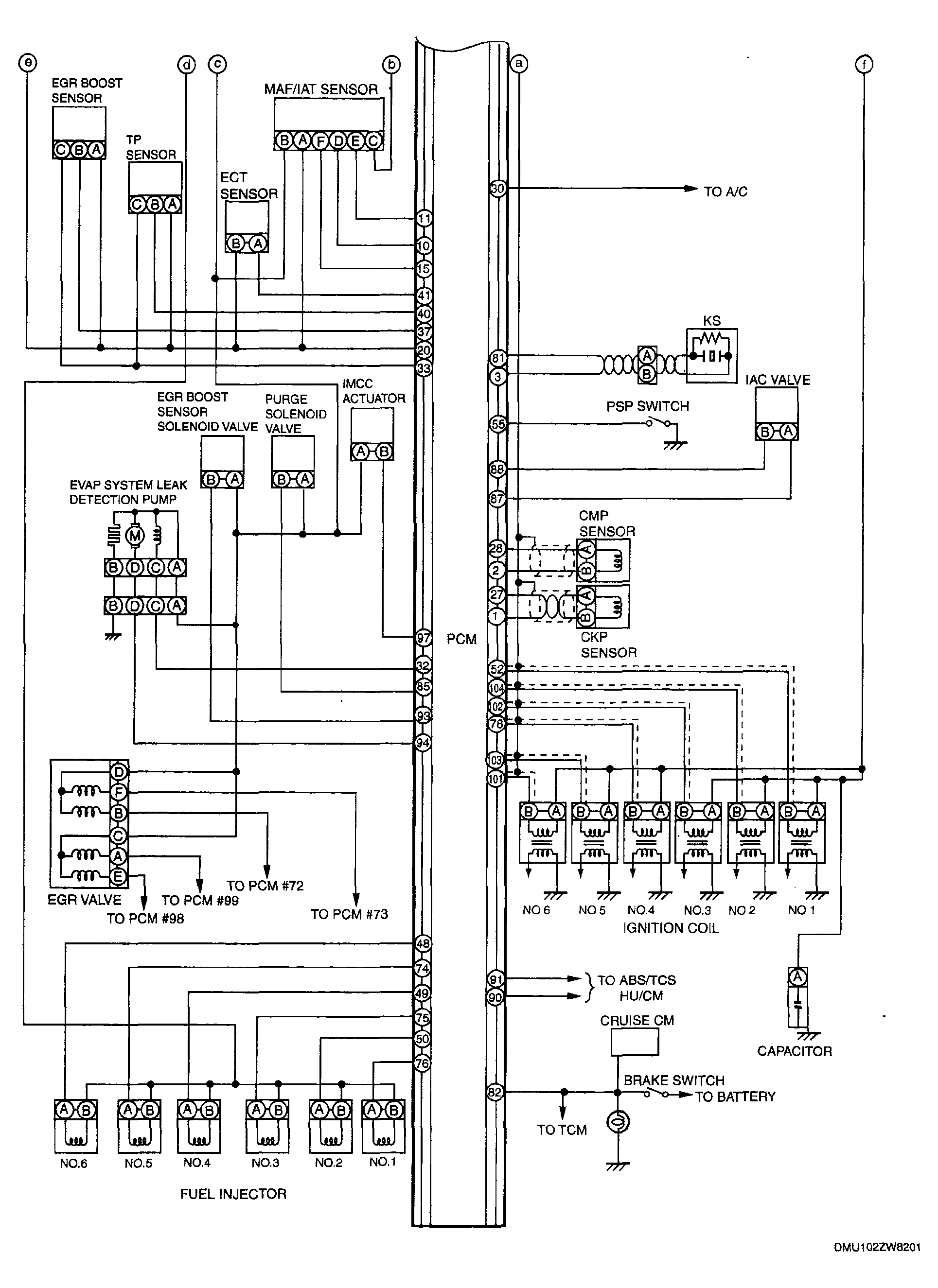

Fig 2: Control System Wiring Diagram [AJ] - With Rear HO2S Model - With Immobilizer System (2 of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
