DTC P0051: Notes

DTC P0051 [AJ] DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0051 HO2S heater (Front, LH) circuit low
DETECTION CONDITION
  • The PCM monitors the HO2S heater (Front, LH) control signal at PCM terminal 84. If the PCM turns the HO2S heater (Front, LH) off but HO2S heater (Front, LH) circuit remains low voltage, the PCM determines that the HO2S heater (Front, LH) circuit has malfunction.
NOTE:
  • The HO2S heater (Front, LH) is controlled by a duty signal.

Diagnostic support note

  • This is a continuous monitor (HO2S heater)(1).
  • This is an intermittent monitor (HO2S heater)(2).
  • The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
  • PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle.
  • FREEZE FRAME DATA is available.
  • DTC is stored in PCM memory.
POSSIBLE CAUSE
  • HO2S (Front, LH) malfunction
  • Connector or terminal malfunction
  • Open circuit between the ignition switch and HO2S (Front, LH) terminal C
  • Open circuit between the HO2S (Front, LH) terminal D and PCM terminal 84
  • Short to ground circuit between HO2S (Front, LH) terminal D and PCM terminal 84
  • PCM malfunction

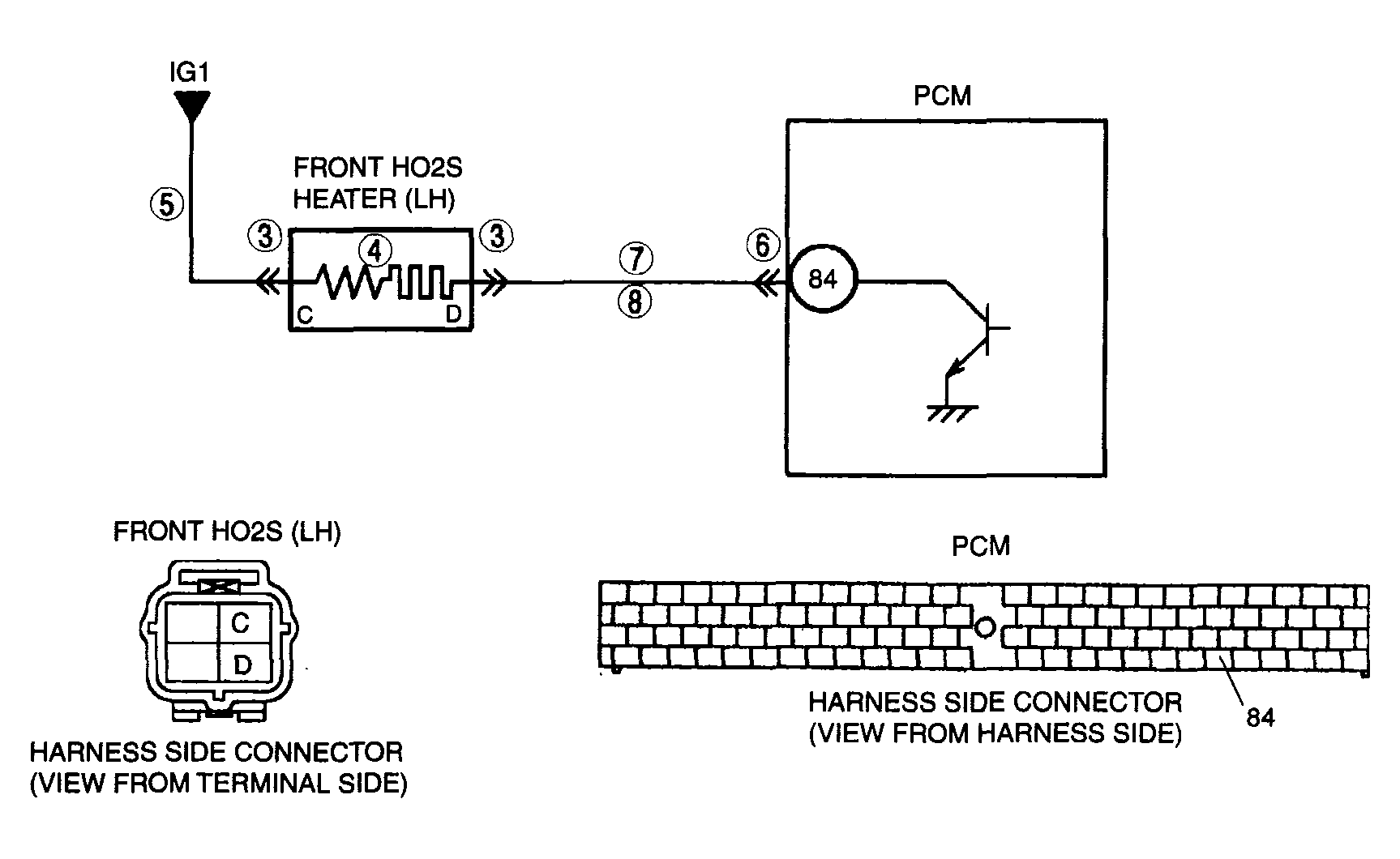

G04327902Courtesy of MAZDA MOTORS CORP.
(1) With rear HO2S model

(2) Without rear HO2S model
