DTC P0113: Notes
DTC P0113 [AJ] DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0113 |
IAT circuit high input |
| DETECTION CONDITION |
- The PCM monitors IAT sensor signal at PCM terminal 15. If the PCM detected IAT sensor voltage above 4.84 V
, the PCM determines that the IAT sensor circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle.
- PENDING CODE is available if the PCM detects the above malfunction condition.
- FREEZE FRAME DATA is available.
- DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- IAT sensor malfunction

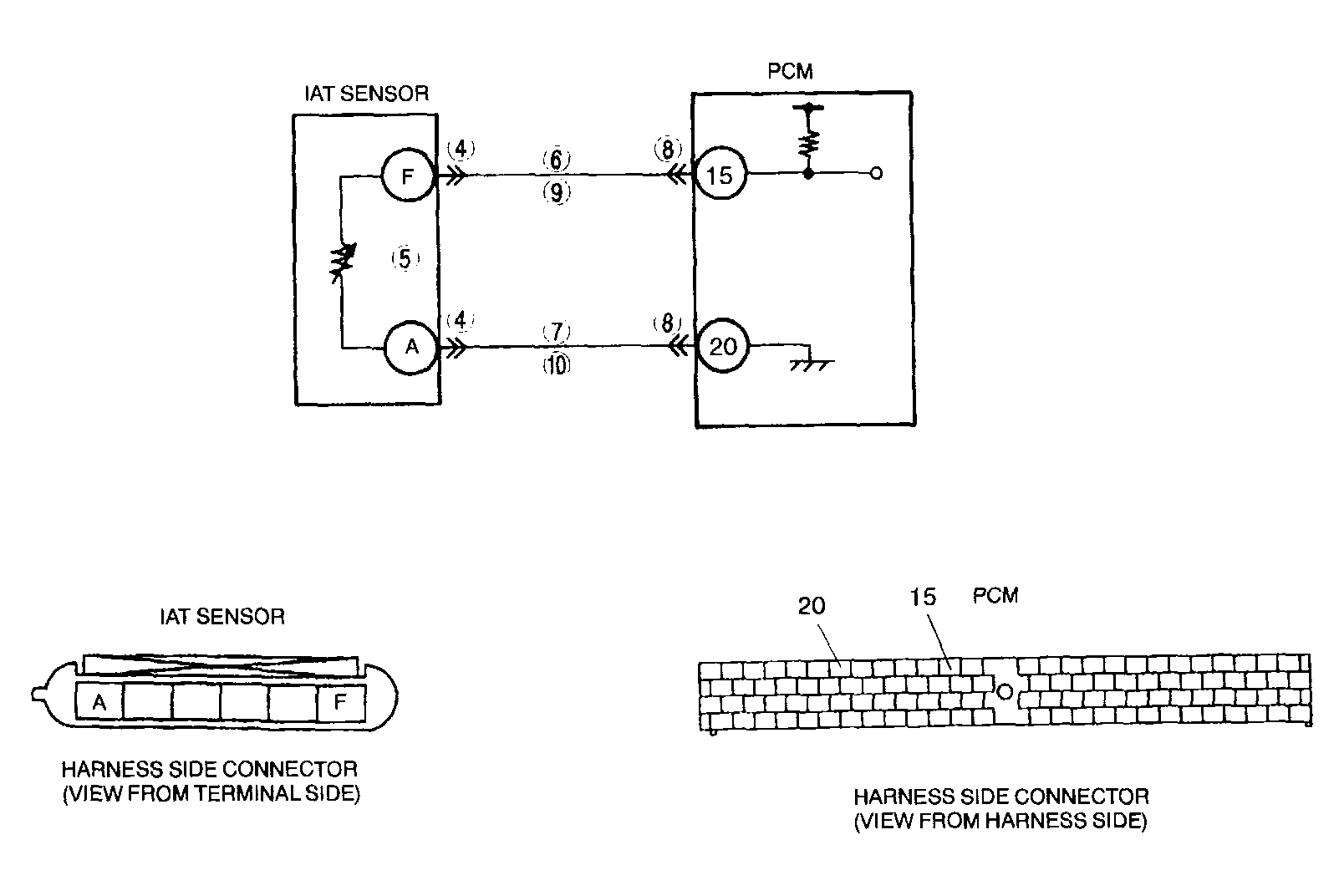

- Open circuit between MAF/IAT sensor terminal F and PCM terminal 15
- Short to power circuit between MAF/IAT sensor terminal F and PCM terminal 15
- Open circuit between MAF/IAT sensor terminal A and PCM terminal 20
- Poor connection at MAF/IAT sensor or PCM connector.
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
