DTC P0327: Notes
DTC P0327 [AJ] DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0327 |
Knock sensor circuit low input |
| DETECTION CONDITION |
- PCM monitors input signal from knock sensor when engine is running. If input voltage at PCM terminal between 81 and 3 is below 1.25 V
, PCM determines that knock sensor circuit has malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle.
- PENDING CODE is available if the PCM detects the above malfunction condition.
- FREEZE FRAME DATA is available.
- DTC is stored in the PCM memory.
|

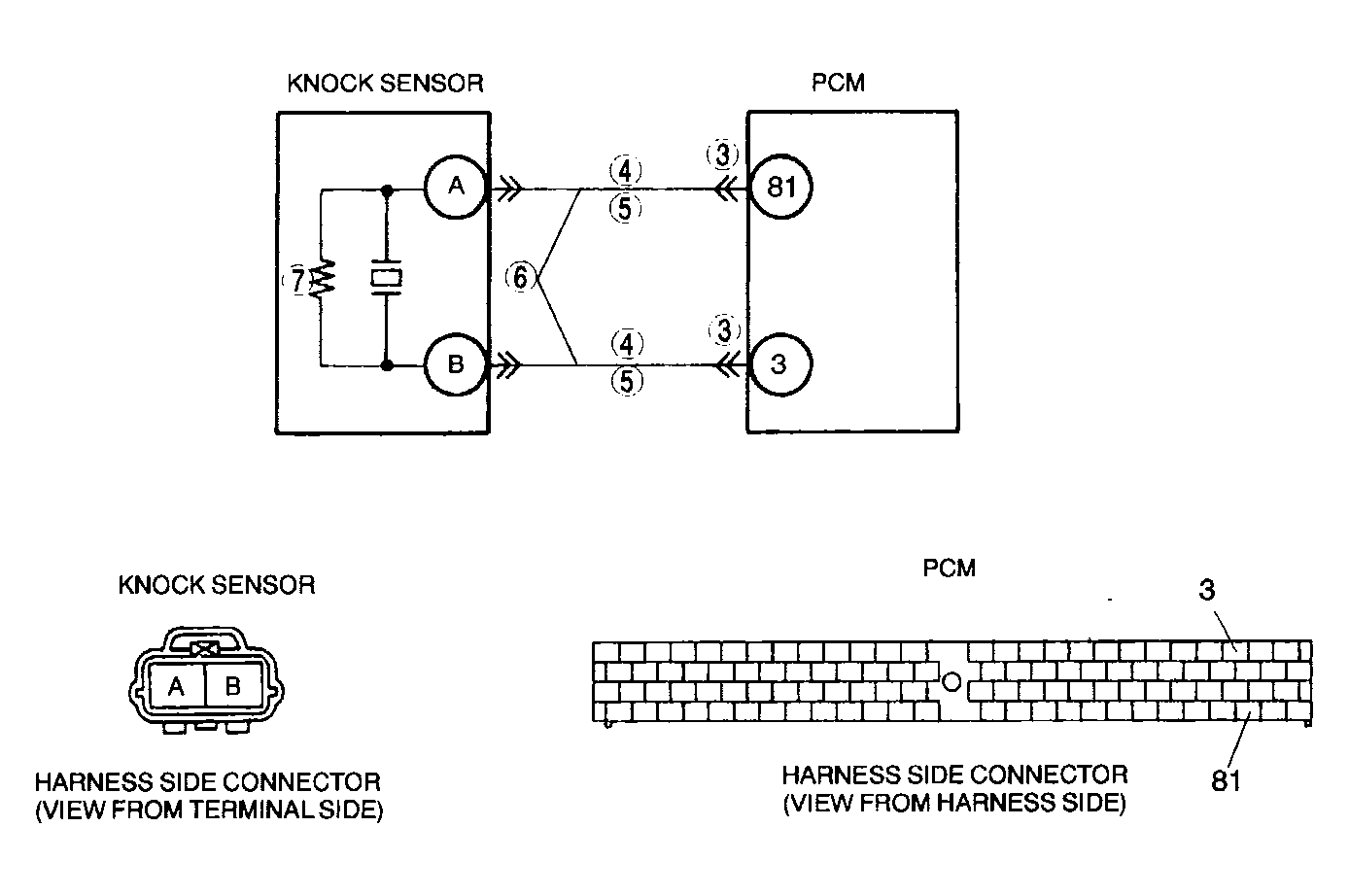

| POSSIBLE CAUSE |
- Knock sensor malfunction
- Connector or terminal malfunction
- Open or short to ground circuit between knock sensor connector terminal A and PCM terminal 81
- Open or short to ground circuit between knock sensor connector terminal B and PCM terminal 3
- Short knock sensor two wires
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
