DTC P0335: Notes
DTC P0335 [AJ] DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0335 |
CKP sensor circuit malfunction |
| DETECTION CONDITION |
- If PCM does not receive input voltage from CKP sensor for 4.2 s
while MAF is 2.0 g/s {0.26 lb/min} or above
, PCM determines that CKP sensor circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle.
- PENDING CODE is available if the PCM detects the above malfunction condition.
- FREEZE FRAME DATA is available.
- DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- CKP sensor malfunction
- Connector or terminal malfunction
- CKP sensor is dirty.

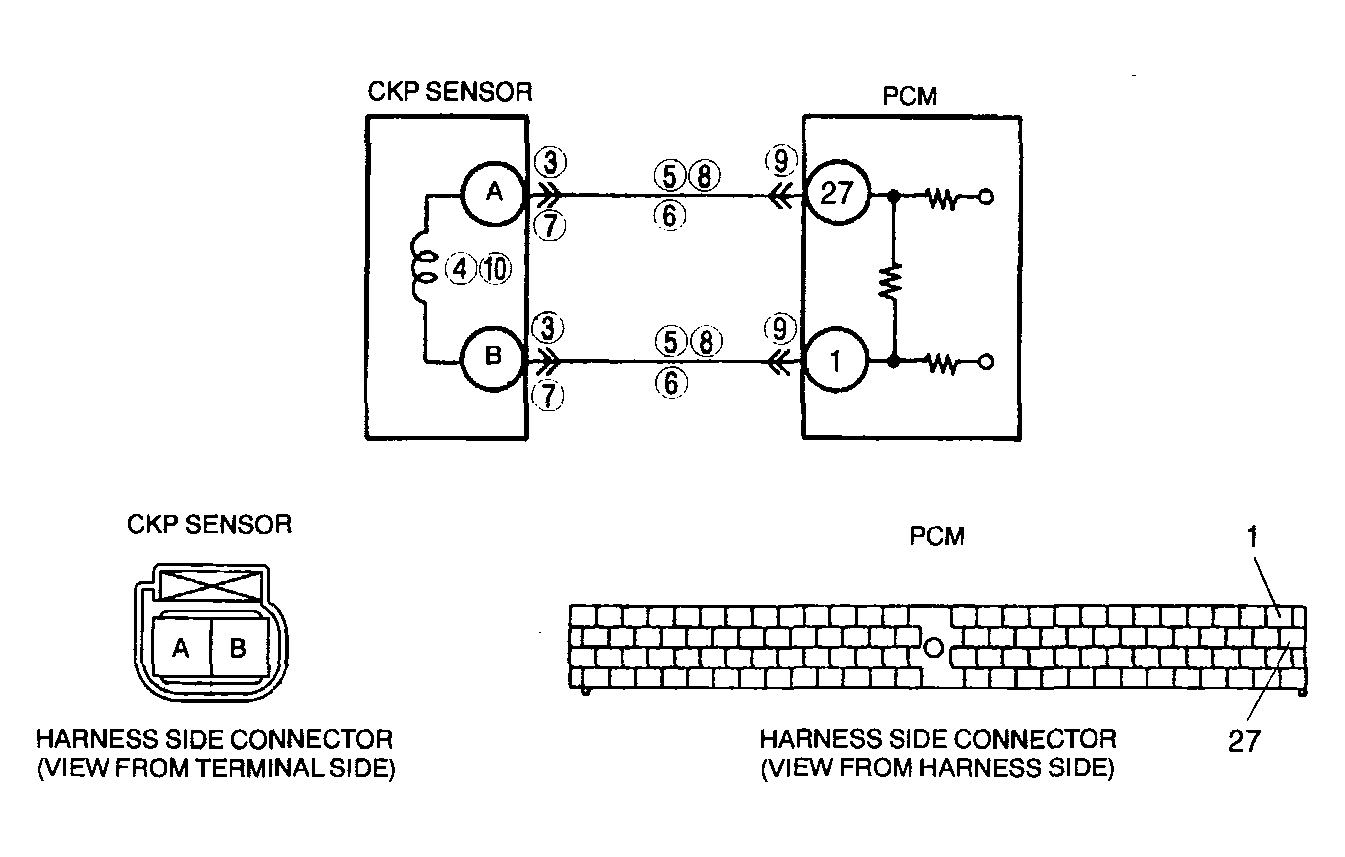

- Short to ground between CKP sensor terminal A to PCM terminal 27
- Short to ground between CKP sensor terminal B to PCM terminal 1
- Short to power circuit between CKP sensor terminal A to PCM terminal 27
- Short to power circuit between CKP sensor terminal B to PCM terminal 1
- Open circuit between CKP sensor terminal A to PCM terminal 27
- Open circuit between CKP sensor terminal B to PCM terminal 1
- CKP sensor pulse wheel malfunction
- Both CKP sensor wires are shorted each other
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
