Speed Control DEACTIVATOR Switch: Removal

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

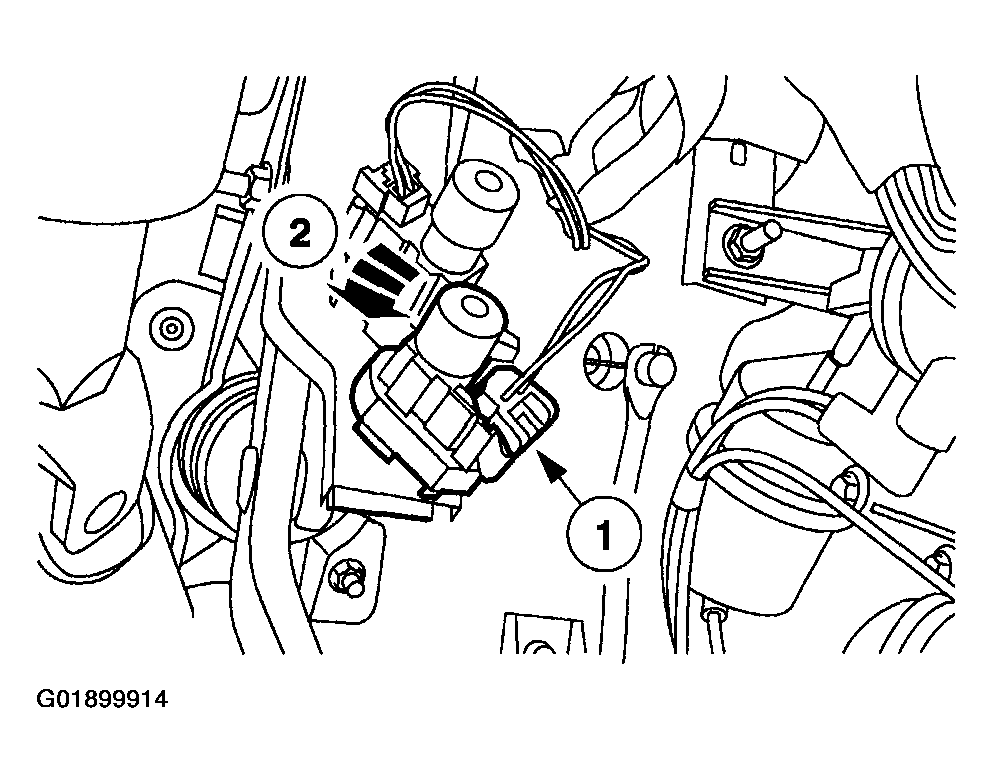

Fig 1: Removing Deactivator Switch
G01899914Courtesy of MAZDA MOTORS CORP.
  1. Remove the deactivator switch.
    1. Disconnect the electrical connector.
    2. Rotate counterclockwise 45 degrees and remove the deactivator switch.
