Section 92 (Specifications & Procedures - Wheel Alignment): Specifications

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Use illustration for wheel alignment specifications. See Fig 1 .

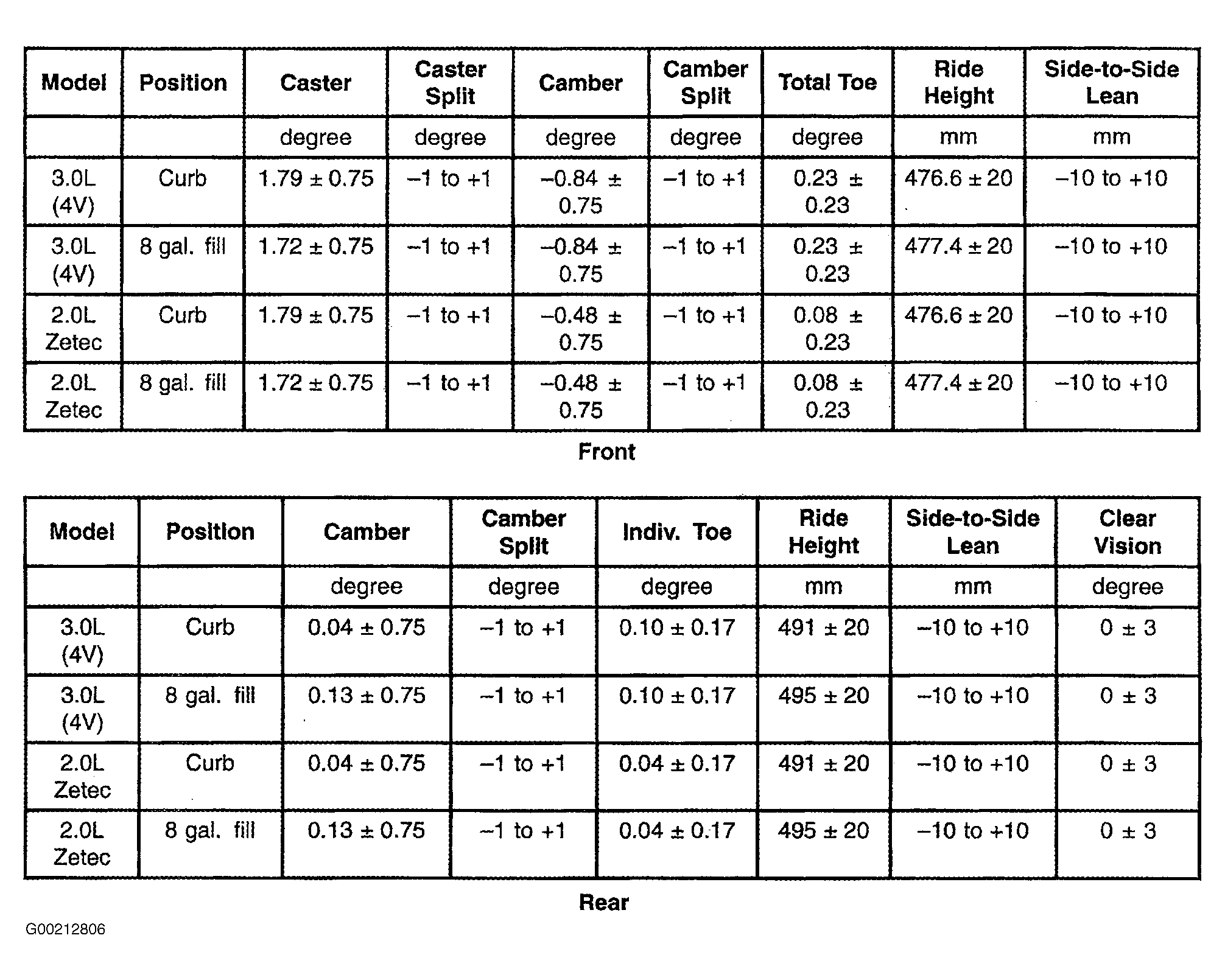

Fig 1: Wheel Alignment Specifications

Courtesy of MAZDA MOTORS CORP.
