Mounting Bushing Assembly Note

  1. Apply soapy water to the rubber part of the mounting bushing.

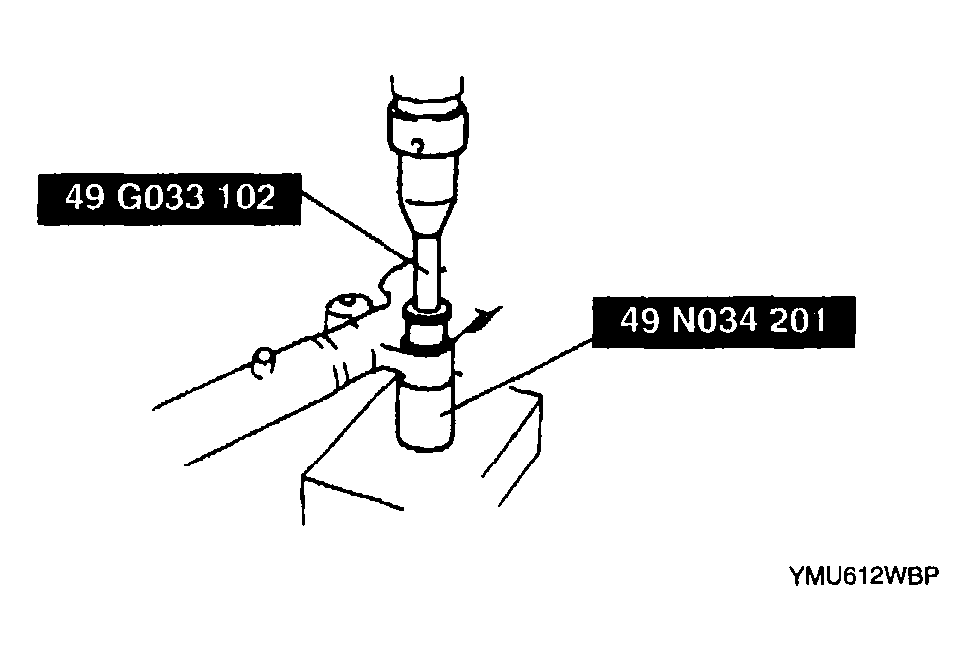

    2. Fig 1: Applying Soapy Water To Rubber Part Of Mounting Bushing
    G04328869Courtesy of MAZDA MOTORS CORP.
  2. Press the mounting bushing until the mounting bushing end comes out completely from the gear housing using the SSTs  and a press.

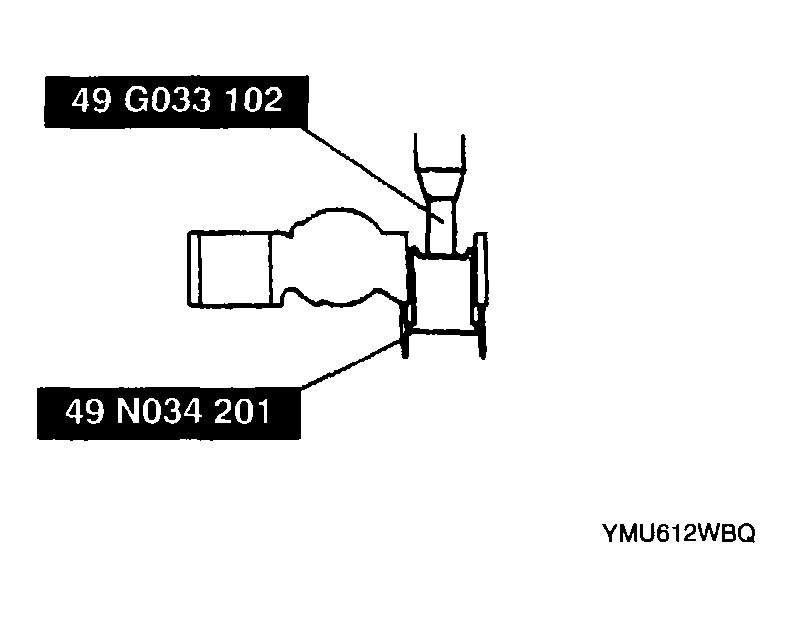

    Fig 2: Pressing Mounting Bushing
    G04328870Courtesy of MAZDA MOTORS CORP.
  3. Reverse the gear housing, then press the mounting bushing until the mounting bushing end comes out completely from the other side. At this time, mounting bushing end and steel pipe are aligned.

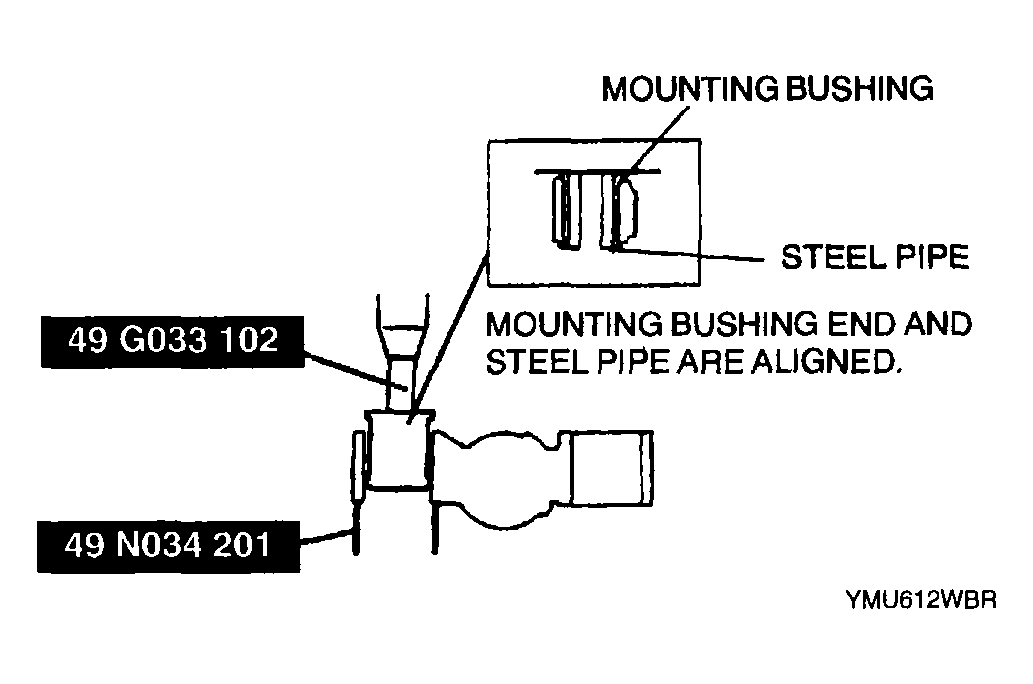

    4. Fig 3: Pressing Gear Mounting Bushing
    G04328871Courtesy of MAZDA MOTORS CORP.
