Steering Gear And Linkage Assembly: Notes

CAUTION:
  • Place rag, or similar material in a vise when securing the mounting bracket portion of the steering gear.
  1. Assemble in the order indicated in Fig 1.

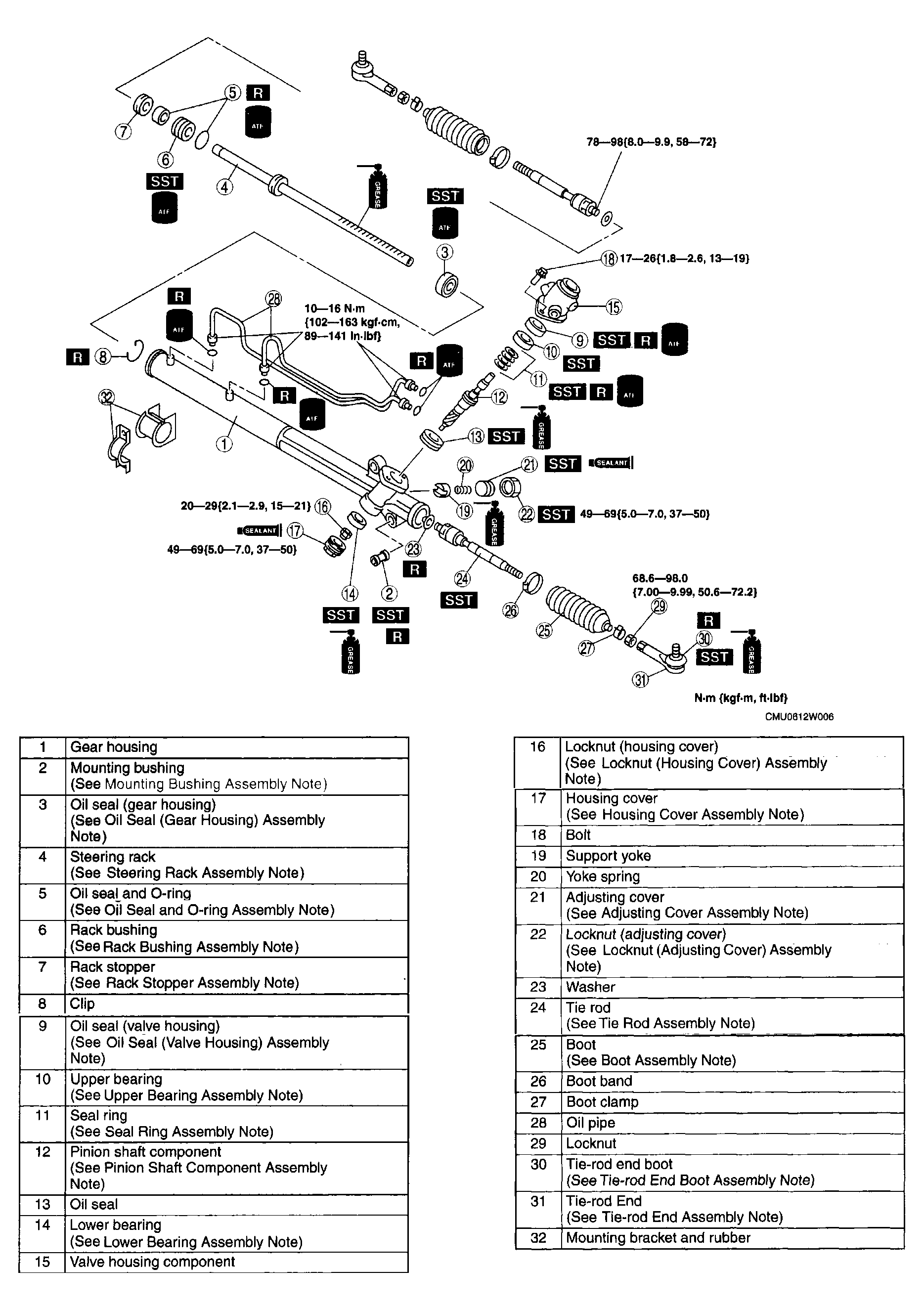

Fig 1: Steering Gear And Linkage Assembly Replacement Components With Torque Specifications
G04328868Courtesy of MAZDA MOTORS CORP.
