Steering Wheel And Column Removal/Installation: Notes

WARNING:

• Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read AIR BAG SYSTEM WARNINGS before handling the air bag module. (See SERVICE WARNINGS .)

1. Remove in the order indicated in Fig 1.
2. Install in the reverse order of removal.

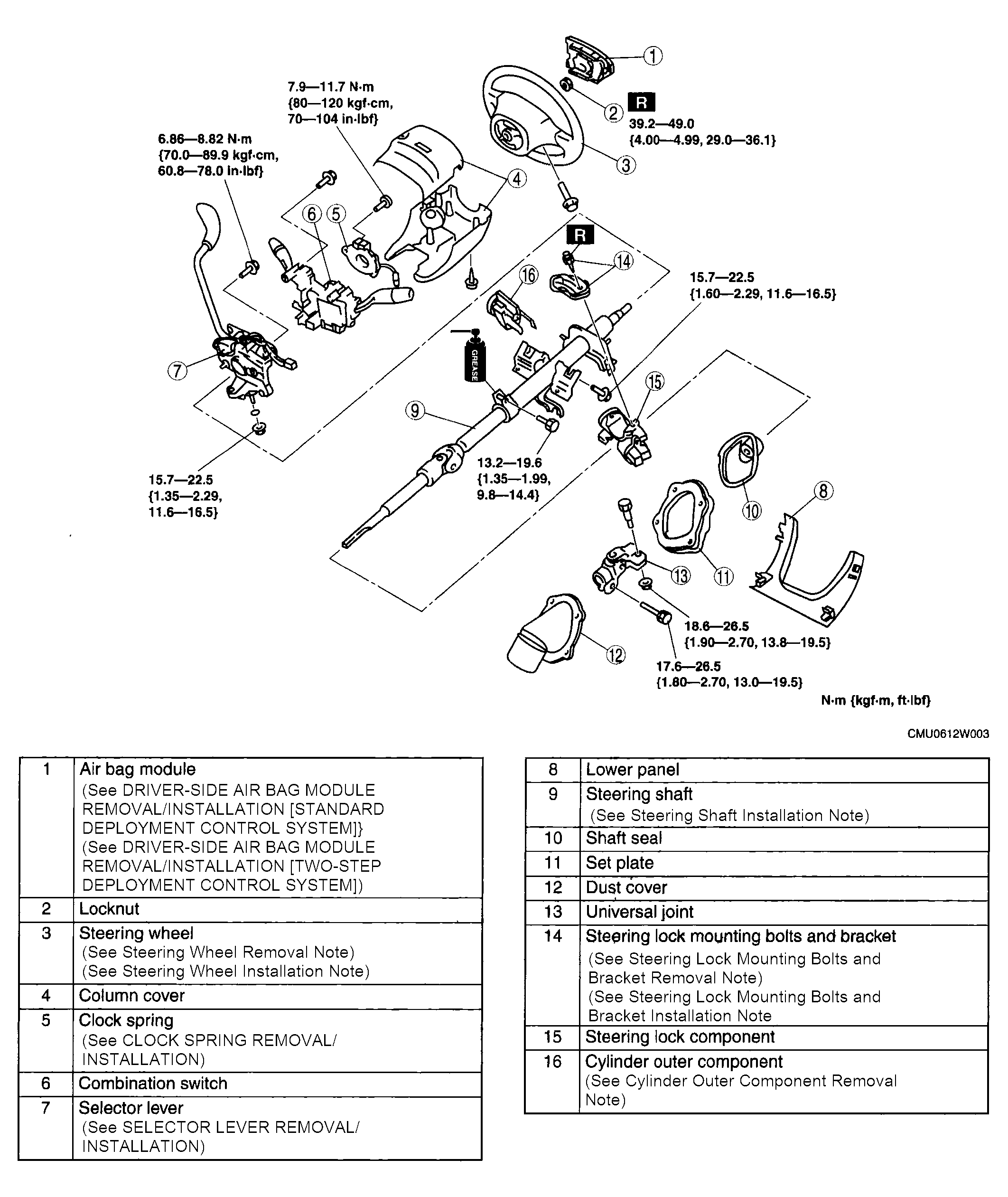

Fig 1: Steering Wheel And Column Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
