Front Lower Arm Removal/Installation: Notes

  1. Remove in the order indicated in Fig 1.

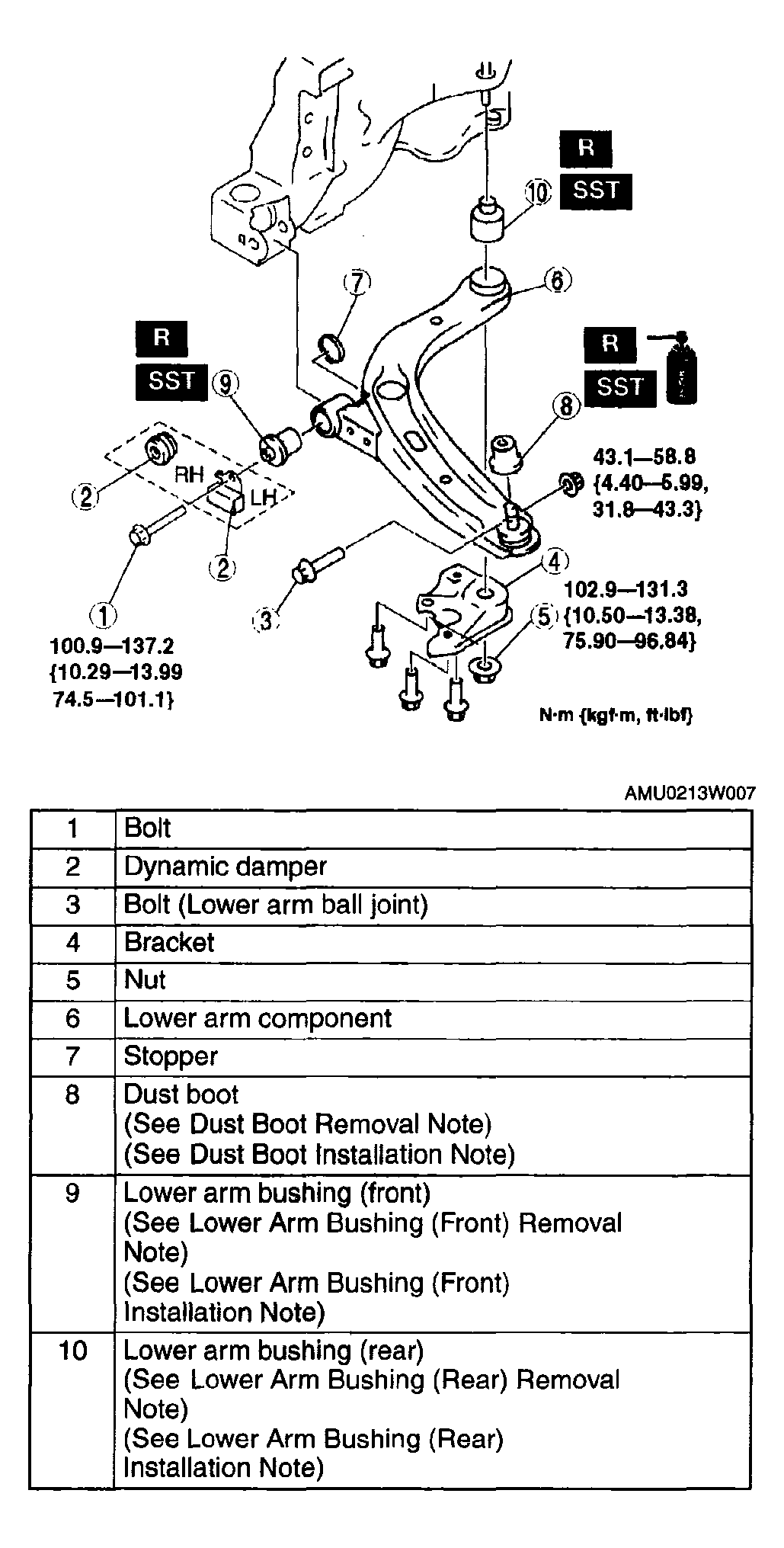

    Fig 1: Removing/Installing Front Lower Arm With Torque Specifications
    G04328406Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
