Front Stabilizer Removal/Installation: Notes

  1. Remove the crossmember. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in Fig 1.
  3. Install in the reverse order of removal.
  4. Inspect the front wheel alignment and adjust it if necessary.

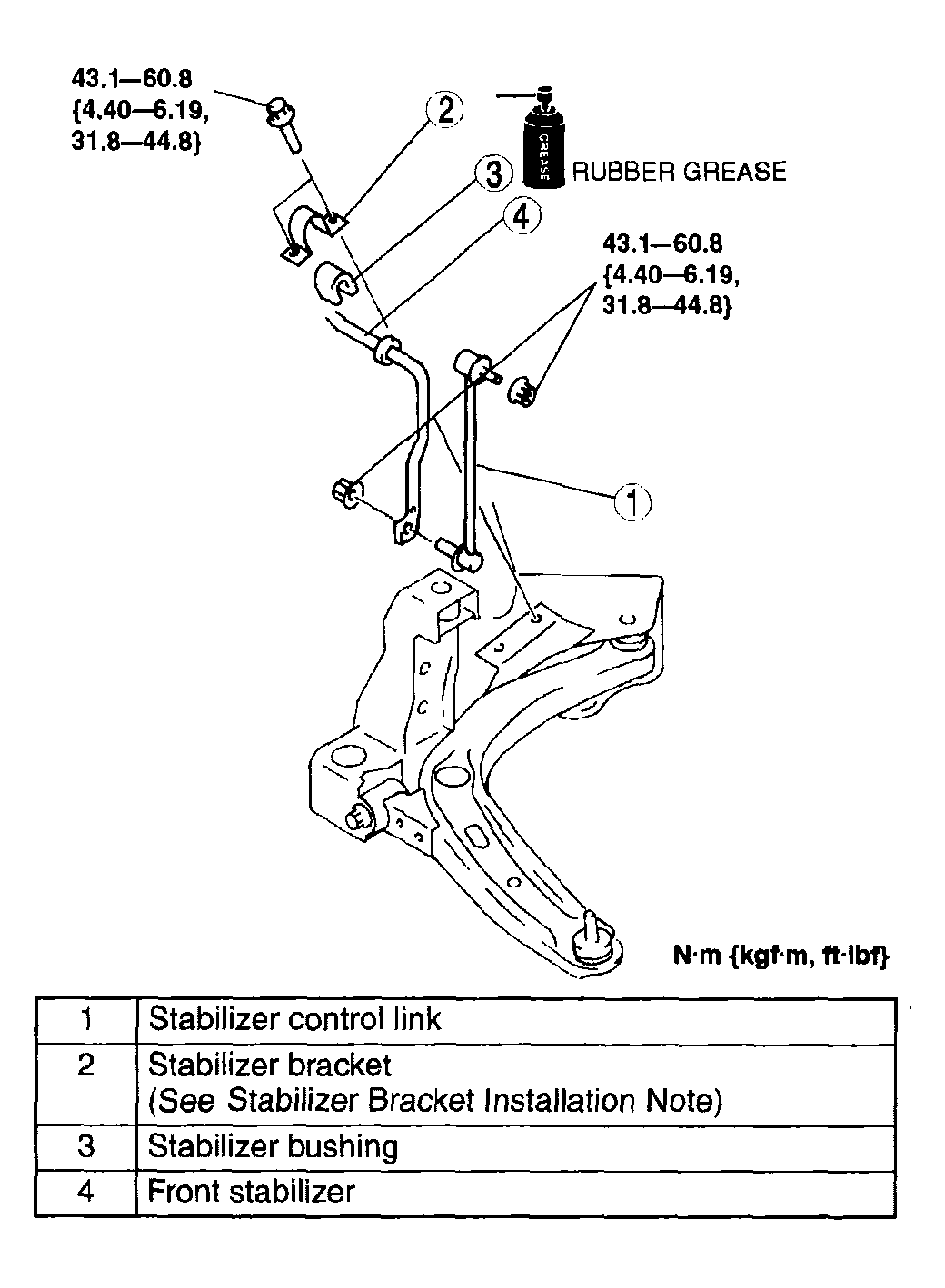

Fig 1: Removing/Installing Front Stabilizer With Torque Specifications
G04328416Courtesy of MAZDA MOTORS CORP.
