DTC P0705: Notes
DTC P0705 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0705 |
Transaxle range (TR) switch circuit malfunction (power short circuit) |
| DETECTION CONDITION |
- Two or more range signals are input from TR switch for 5 s or more.
Diagnostic support note:
- This is a continuous monitor (CCM).
- MIL illuminates if TCM detects the above malfunction conditions in two consecutive drive cycles.
- PENDING CODE is available above malfunction condition during first drive cycle.
- FREEZE FRAME DATA is available.
- O/D OFF indicator light flash.
- DTC is stored in TCM memory.
|

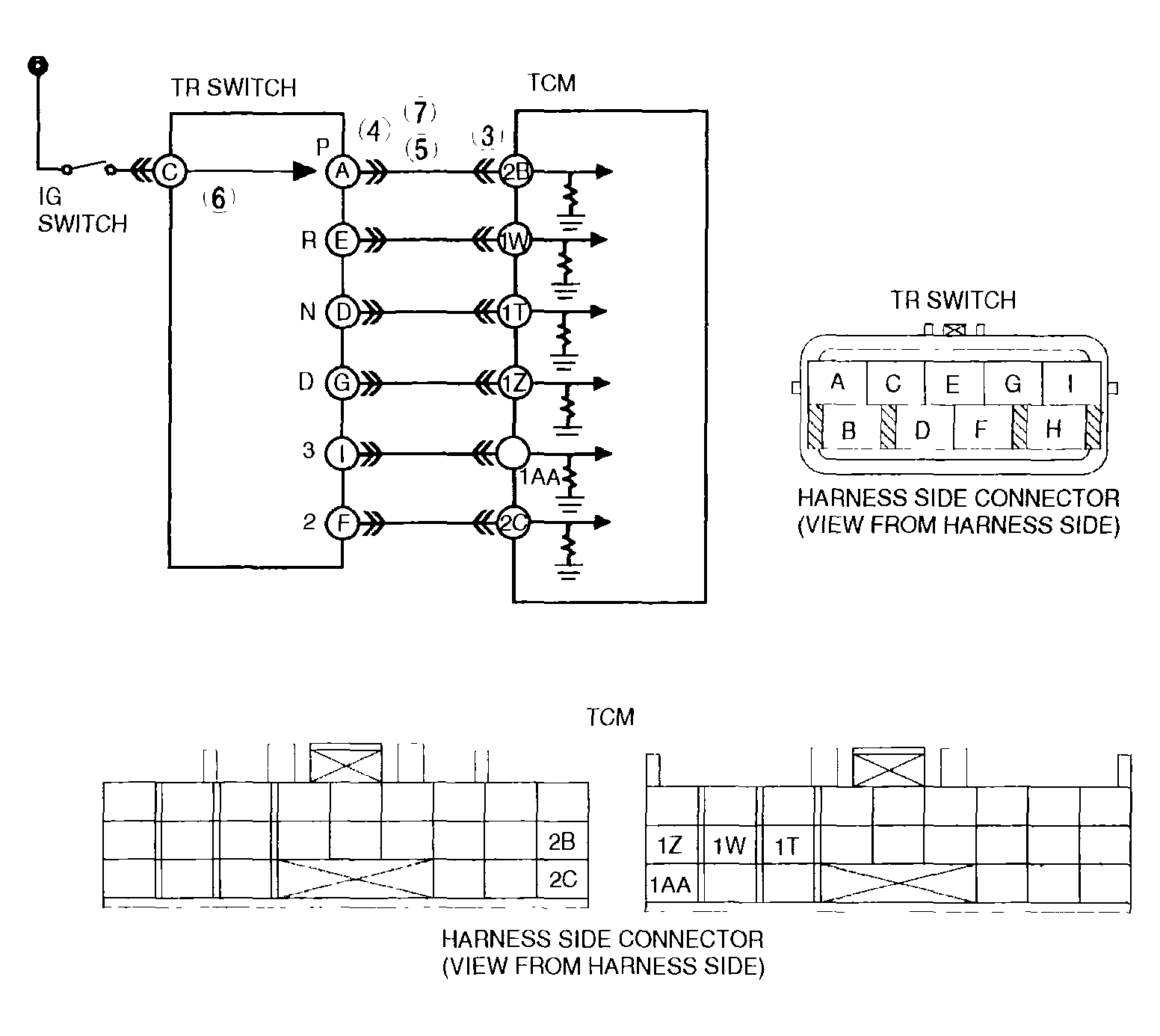

| POSSIBLE CAUSE |
- TCM malfunction
- Short to power between TR switch terminal A and TCM terminal 2B
- Short to power between TR switch terminal E and TCM terminal 1W
- Short to power between TR switch terminal D and TCM terminal 1T
- Short to power between TR switch terminal G and TCM terminal 1Z
- Short to power between TR switch terminal I and TCM terminal 1AA
- Short to power between TR switch terminal F and TCM terminal 2C
- Damaged connector between TR switch and TCM
- TR switch malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
