DTC P0706: Notes

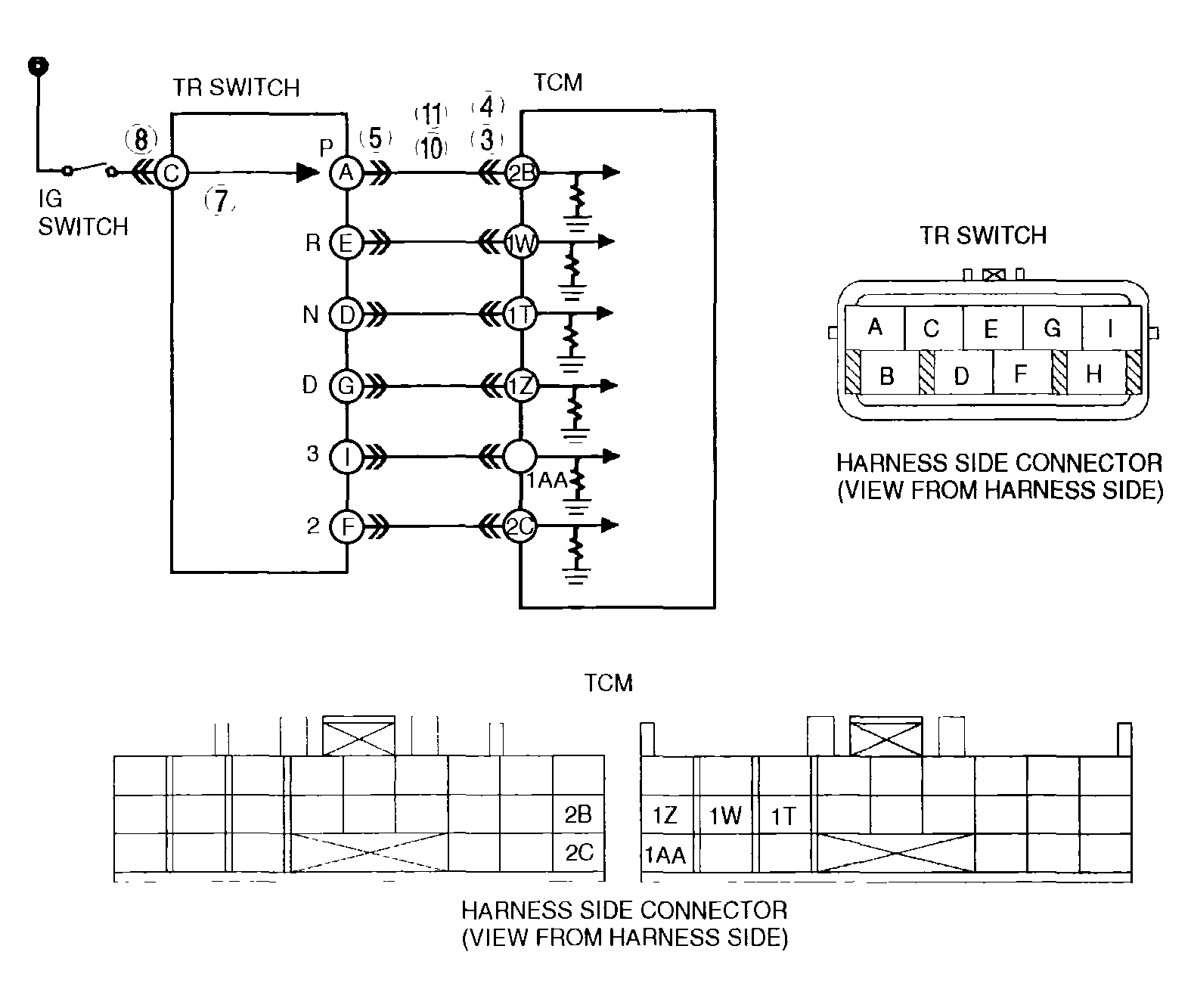

DTC P0706 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0706 |
Transaxle range (TR) switch circuit malfunction (open circuit/ground short circuit) |
| DETECTION CONDITION |
- No range signal is input from TR switch for 100 s or more.
Diagnostic support note:
- This is a continuous monitor (CCM).
- MIL illuminates if TCM detects the above malfunction conditions in two consecutive drive cycles.
- PENDING CODE is available.
- FREEZE FRAME DATA is available.
- O/D OFF indicator light flashes.
- DTC is stored in TCM memory.
|
| POSSIBLE CAUSE |
- TR switch malfunction
- TR switch misadjustment
- Short to ground between TR switch terminal A and TCM terminal 2B
- Short to ground between TR switch terminal E and TCM terminal 1W
- Short to ground between TR switch terminal D and TCM terminal 1T
- Short to ground between TR switch terminal G and TCM terminal 1Z
- Short to ground between TR switch terminal I and TCM terminal 1AA
- Short to ground between TR switch terminal F and TCM terminal 2C
- Open circuit between TR switch terminal A and TCM terminal 2B
- Open circuit between TR switch terminal E and TCM terminal 1W
- Open circuit between TR switch terminal D and TCM terminal 1T
- Open circuit between TR switch terminal G and TCM terminal 1Z
- Open circuit between TR switch terminal I and TCM terminal 1AA
- Open circuit between TR switch terminal F and TCM terminal 2C
- Open circuit between TR switch terminal C and IG key (ACC)
- Short to ground between TR switch terminal C and IG key (ACC)
- Damaged connector between TR switch and TCM
- TCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
