DTC P0713: Notes

DTC P0713 DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0713

Transaxle fluid temperature (TFT) sensor circuit malfunction (open circuit)

DETECTION CONDITION

Vehicle speed is 20 km/h {12.4 mph} or greater , and signal from TFT sensor is -30 °C {-22 °F} or less for 150 s or more.

Diagnostic support note:

This is a continuous monitor (CCM).
MIL illuminates if TCM detects the above malfunction conditions in two consecutive drive cycles.
PENDING CODE is available.
FREEZE FRAME DATA is available.
O/D OFF indicator light flashes.
DTC is stored in TCM memory.

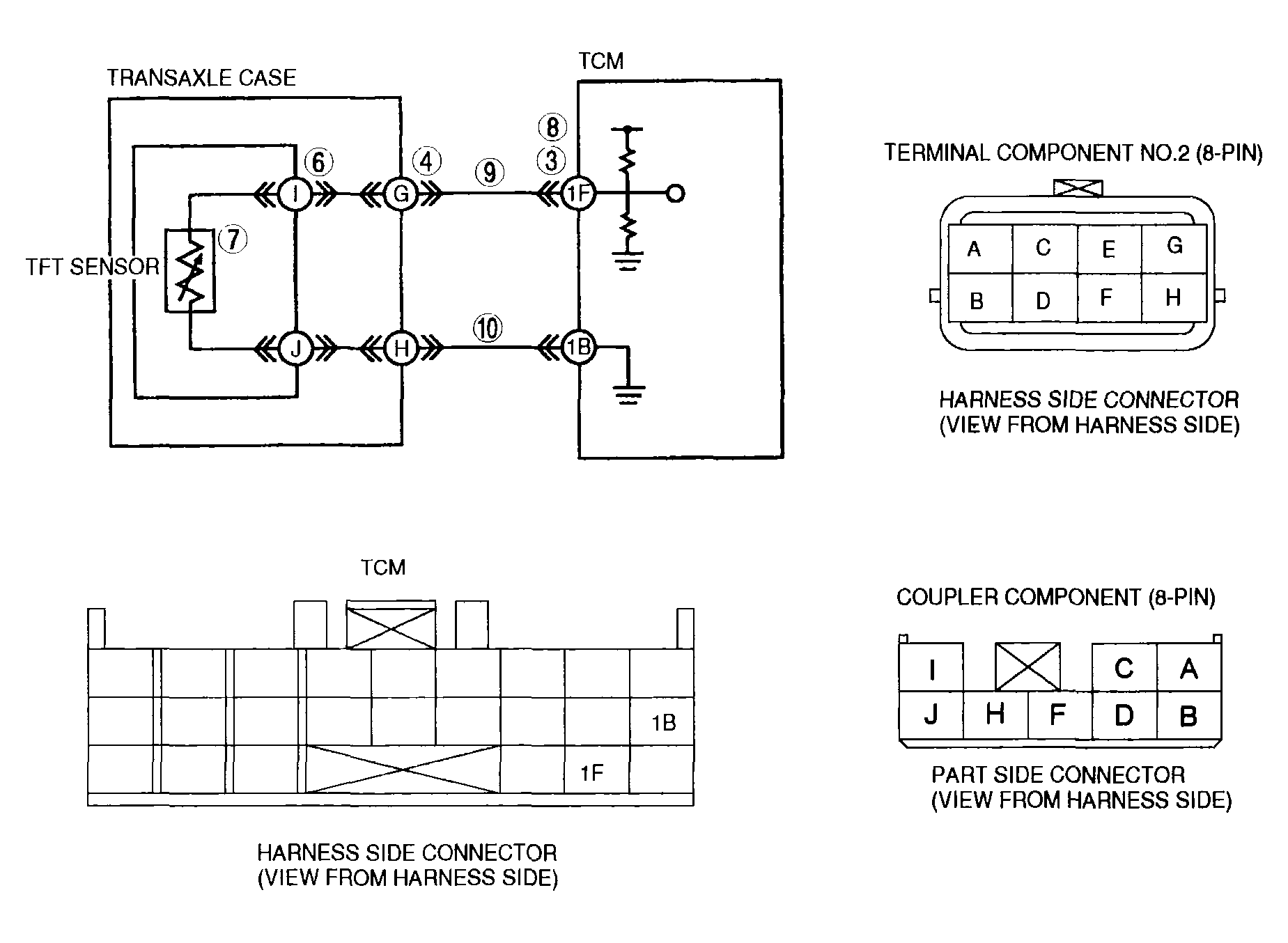

POSSIBLE CAUSE

TFT sensor malfunction
Open circuit between TFT sensor and TCM terminal 1F
Open circuit between TFT sensor and TCM terminal 1B
Damaged connectors between TFT sensor and TCM
TCM malfunction

G04328691

Courtesy of MAZDA MOTORS CORP.
