DTC P0758: Notes
DTC P0758 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0758 |
Shift solenoid B circuit malfunction (open circuit/short circuit) |
| DETECTION CONDITION |
- Open circuit or short circuit in shift solenoid B signal system (while TCM monitors solenoid output voltage, the voltage that differs from the ON/OFF signal output by CPU in TCM is detected).
Diagnostic support note:
- This is a continuous monitor (CCM).
- MIL illuminates if TCM detects the above malfunction conditions during first drive cycle.
- PENDING CODE is not available.
- FREEZE FRAME DATA is available.
- O/D OFF indicator light flashes.
- DTC is stored in TCM memory.
|
| POSSIBLE CAUSE |

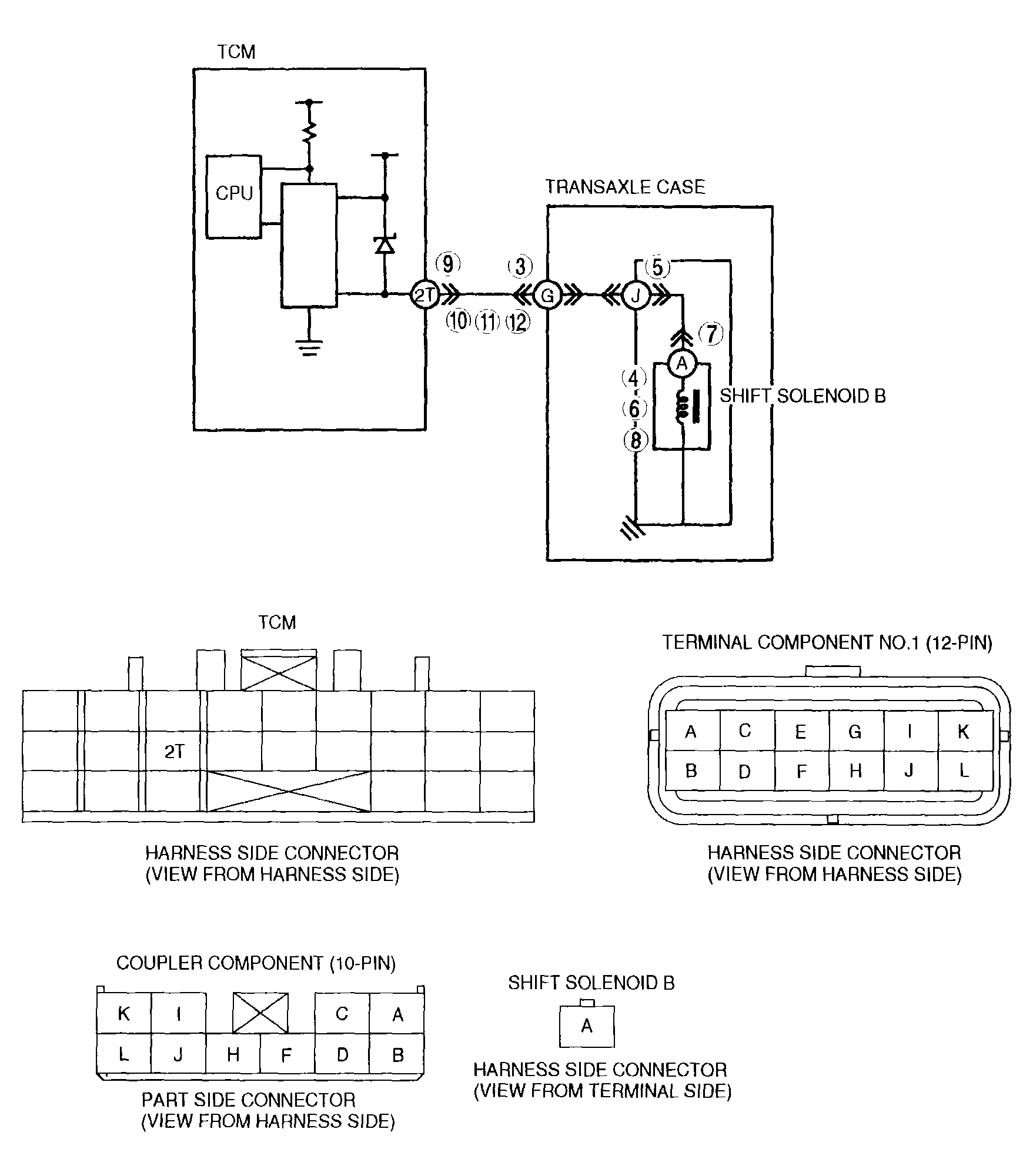

- Open circuit between shift solenoid B terminal A and TCM terminal 2T
- Short to ground between shift solenoid B terminal A and TCM terminal 2T
- Short to power between shift solenoid B terminal A and TCM terminal 2T
- Shift solenoid B malfunction
- Damaged connector between shift solenoid B and TCM
- TCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
