DTC P0773: Notes
DTC P0773 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0773 |
Neutral shift solenoid valve circuit malfunction (open circuit/short circuit) |
| DETECTION CONDITION |
- Open circuit or short circuit in neutral shift solenoid signal system (while TCM monitors solenoid output voltage, the voltage that differs from the ON/OFF signal output by CPU in TCM is detected).
Diagnostic support note:
- This is continuous monitor (CCM).
- MIL does not illuminate.
- PENDING CODE is not available.
- FREEZE FRAME DATA is not available.
- O/D OFF indicator light flashes.
- DTC is stored in TCM memory.
|
| POSSIBLE CAUSE |

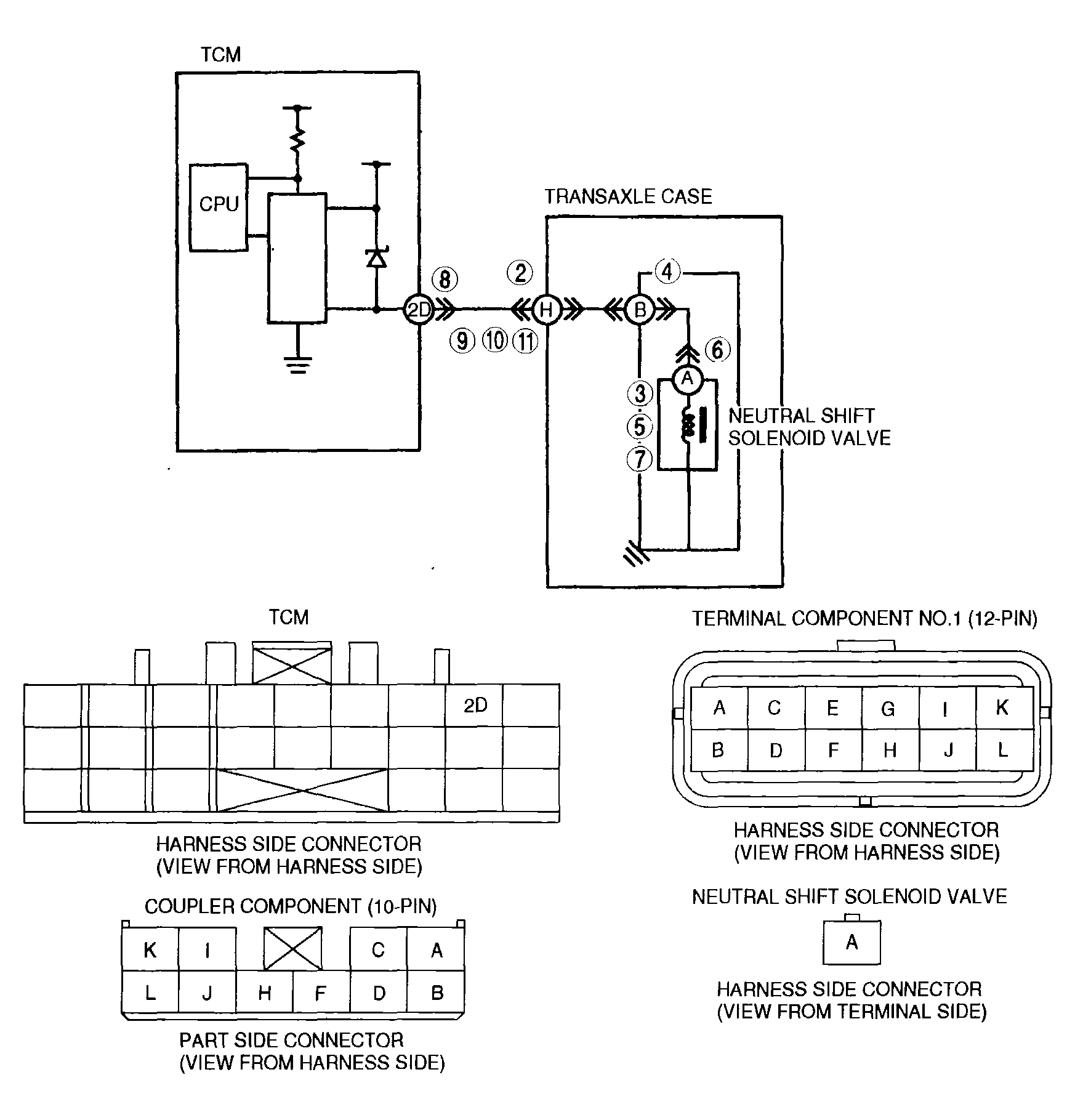

- Open circuit between neutral shift solenoid valve terminal A and TCM terminal 2D
- Short to ground between neutral shift solenoid valve terminal A and TCM terminal 2D
- Short to power between neutral shift solenoid vale terminal A and TCM terminal 2D
- Neutral shift solenoid valve malfunction
- Damaged connector between neutral shift solenoid valve and TCM
- TCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
