DTC P1710: Notes

DTC P1710 DETECTION CONDITION AND POSSIBLE CAUSES

DTC P1710	GND return circuit malfunction
DETECTION CONDITION	TCM detects open circuit in GND return signal line from solenoid valve. Diagnostic support note: This is a diagnostic support DTC (monitored one per key cycle). MIL does not illuminate. PENDING CODE is not available. FREEZE FRAME DATA is not available. O/D OFF indicator light does not flash. DTC is stored in TCM memory.

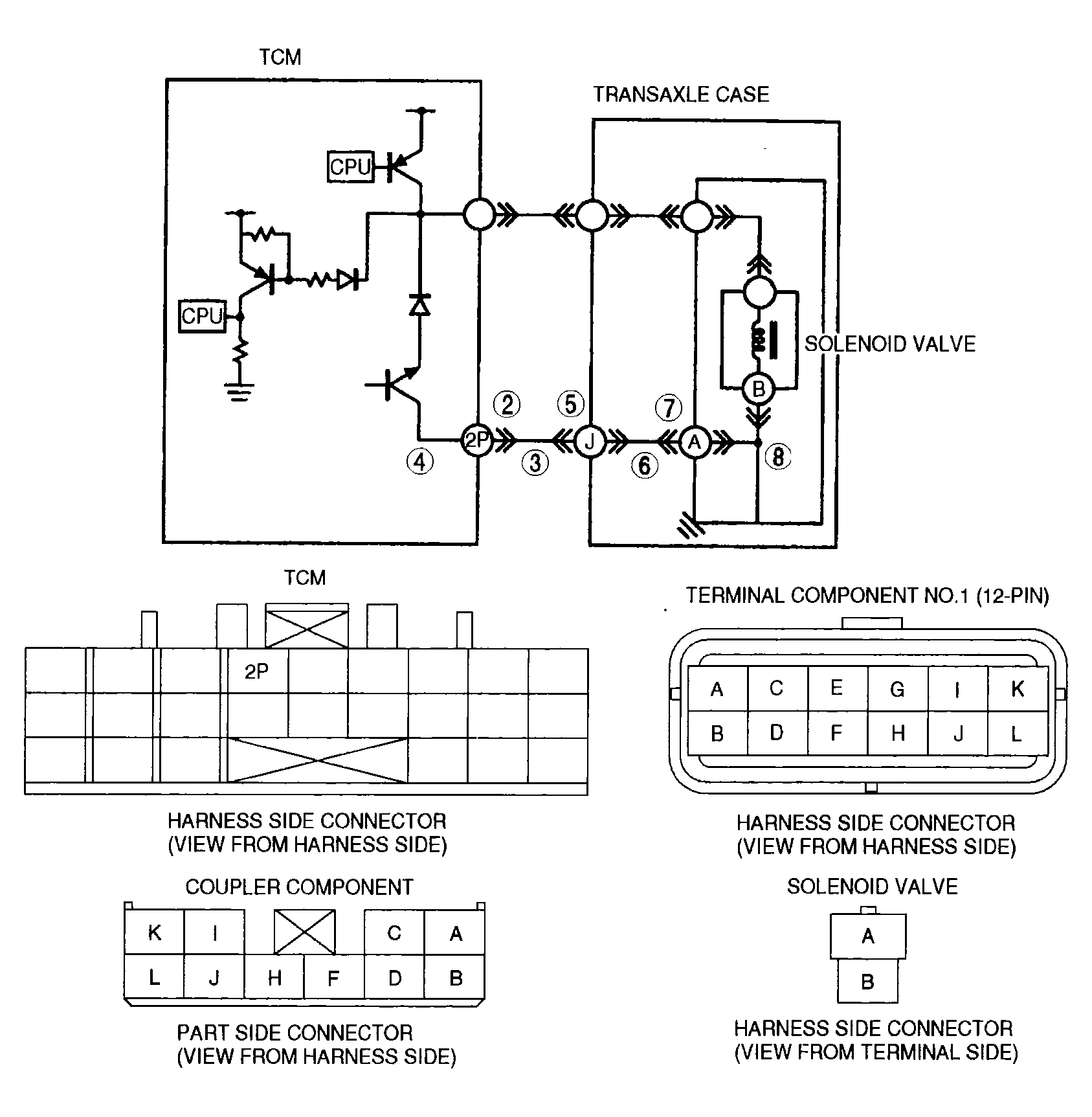

POSSIBLE CAUSE	Open circuit between duty type solenoid valves terminal B and TCM terminal 2P Damaged connector between solenoid valve and TCM TCM malfunction
Courtesy of MAZDA MOTORS CORP.

DTC P1710

GND return circuit malfunction

DETECTION CONDITION

Diagnostic support note:

POSSIBLE CAUSE

Courtesy of MAZDA MOTORS CORP.
