Engine Coolant Protection Inspection
- Measure the coolant temperature and specific gravity with a thermometer and a hydrometer.
CAUTION:
- The engine has aluminum parts that can be damaged by alcohol or methanol antifreeze. Do not use alcohol or methanol in the cooling system. Use only ethylene-glycol-based coolant.
- Use only soft (demineralized) water in the coolant mixture. Water that contains minerals will reduce the coolant's effectiveness.
NOTE:
- If the "FL22" mark is shown on or near the cooling system cap, use FL22 type engine coolant.
- FL22 type engine coolant is shipped as a diluted solution (55% coolant, 45% water). Use the solution as is when replacing coolant.
Courtesy of MAZDA MOTORS CORP.

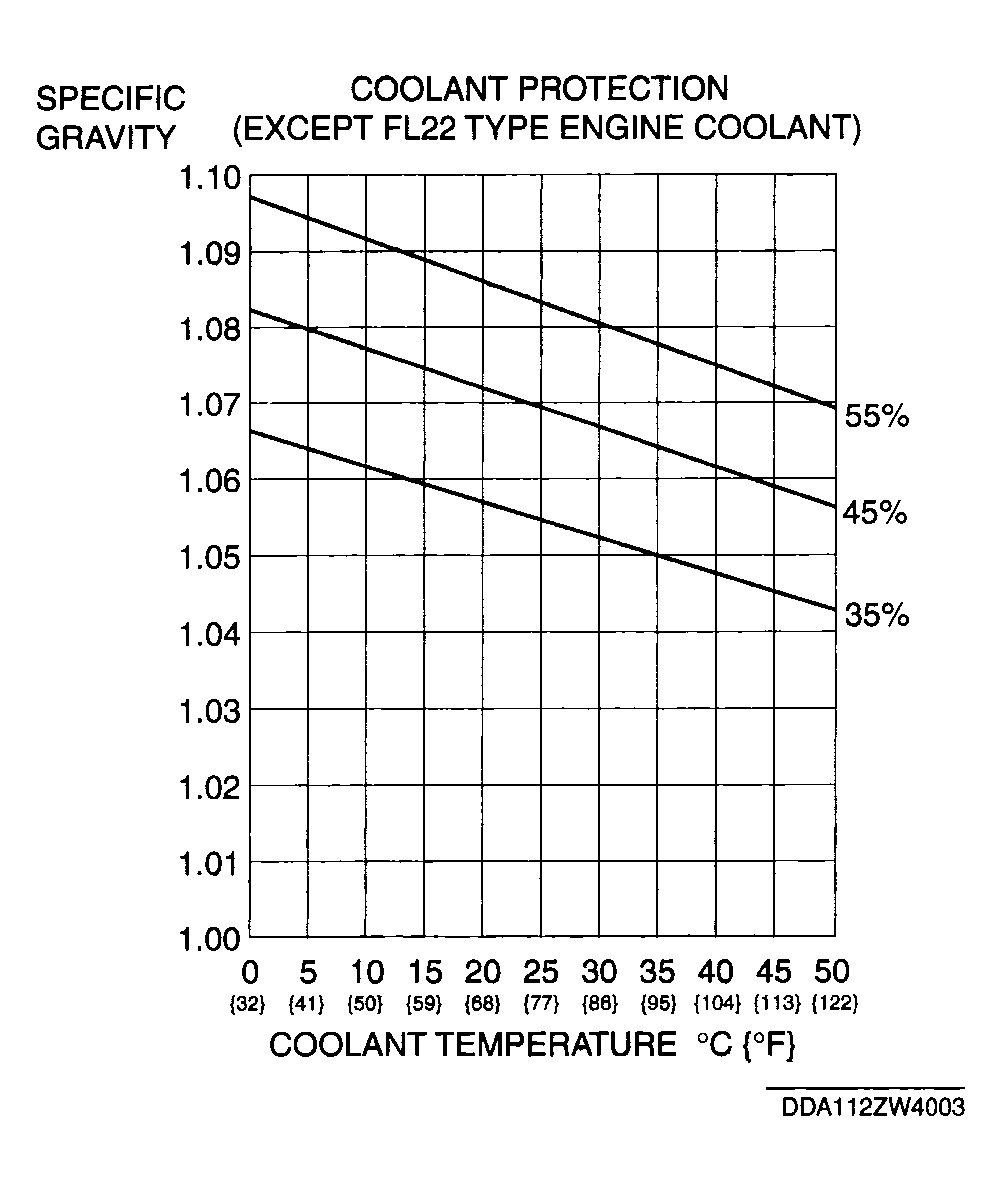

- Determine the coolant protection by referring to the graph shown.
- If the coolant protection is not proper, add water or coolant.
Courtesy of MAZDA MOTORS CORP.
