Keyless Antenna And Keyless Control Module Connector End View

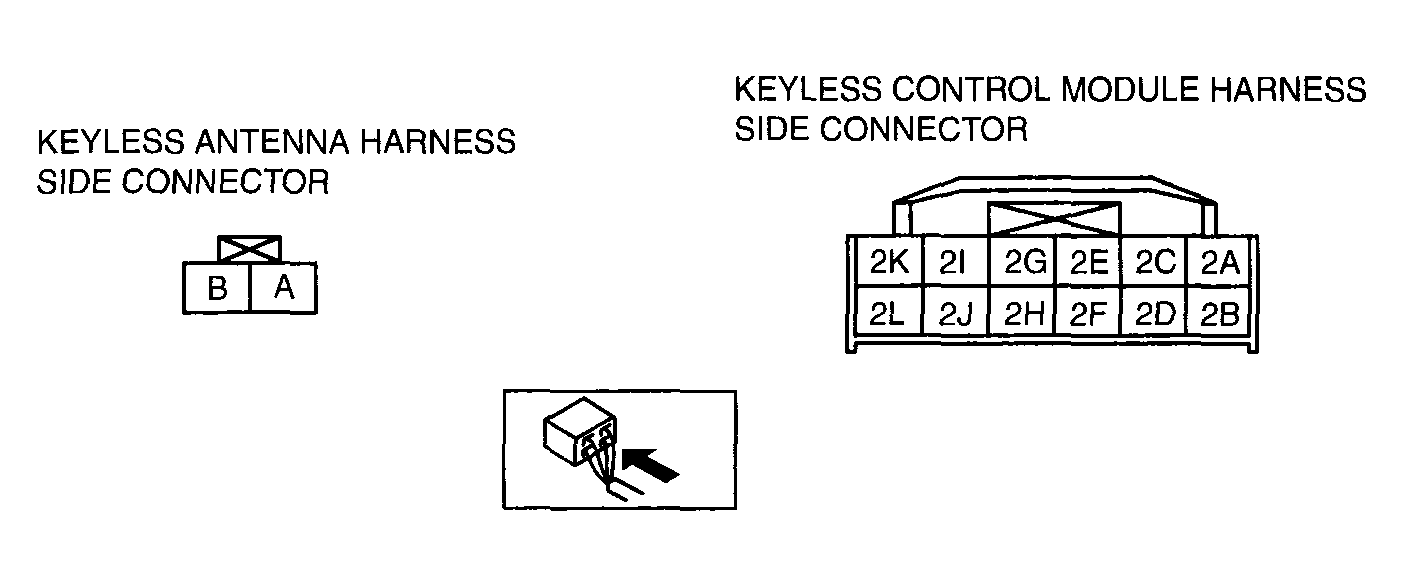

Fig 1: Keyless Antenna And Keyless Control Module Connector End View
G04323307Courtesy of MAZDA MOTORS CORP.
