Coil Antenna Removal/Installation [With Advanced Keyless System]: Notes

NOTE:

Do not remove the coil antenna unless you are replacing it.
When only the coil antenna is replaced, the immobilizer system reprogram procedure is not necessary.

Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
Remove the column cover.
Remove in the order indicated in Fig 1 .

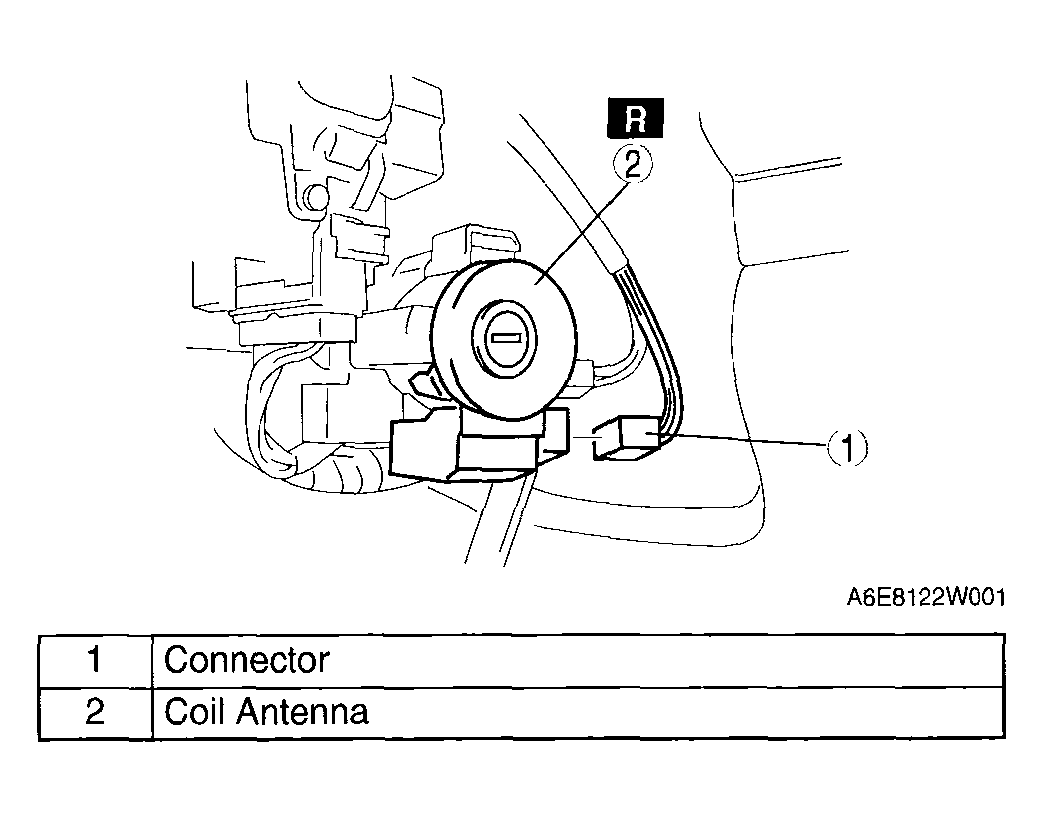

Fig 1: Removing/Installing Coil Antenna
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
