Power Door Lock System And Keyless Entry System Location Index [Keyless Entry System]

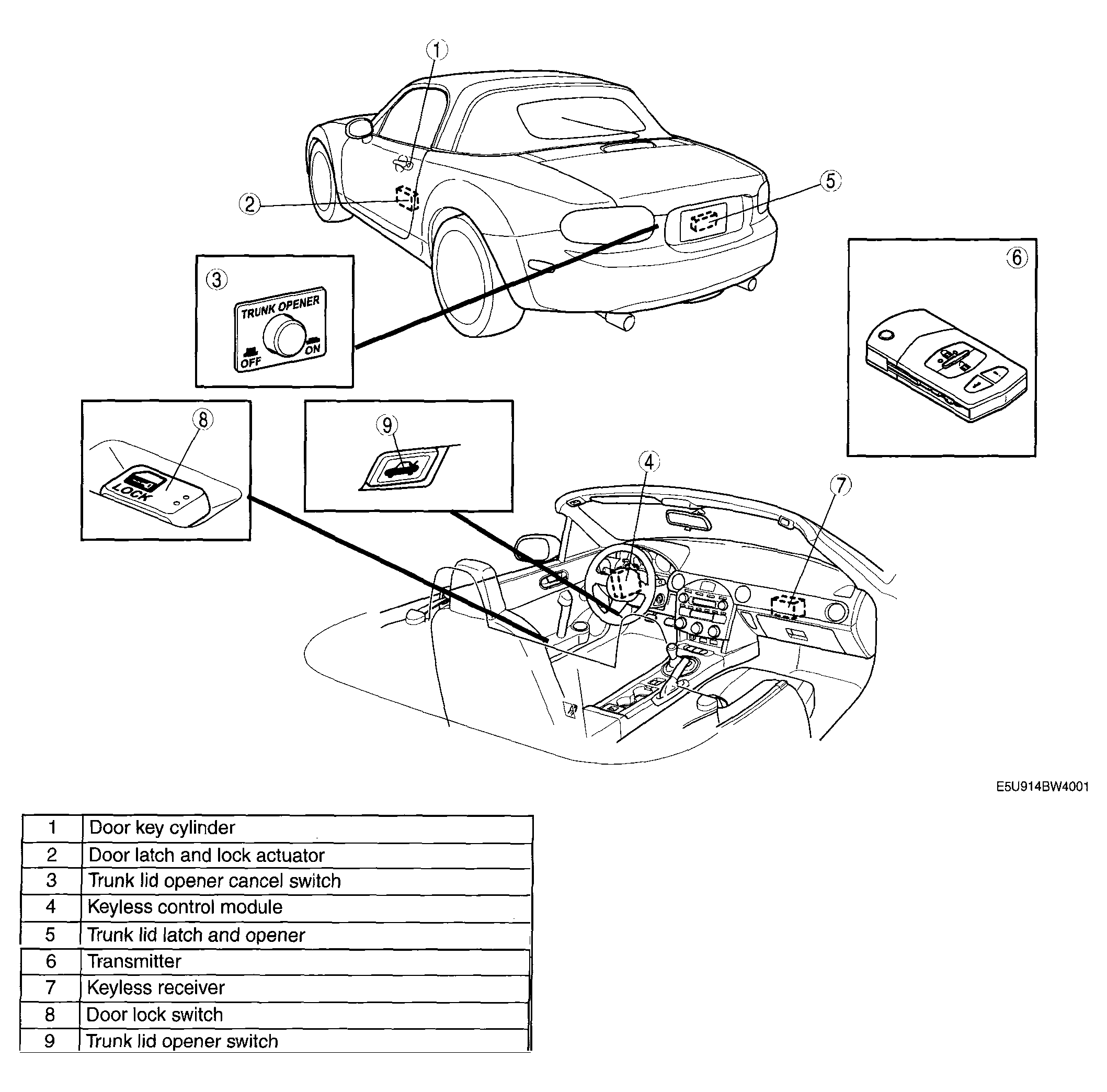

Fig 1: Identifying Location Of Power Door Lock System & Keyless Entry System Components [Keyless Entry System]
G04323566Courtesy of MAZDA MOTORS CORP.
