Keyless Entry System Wiring Diagram [Advanced Keyless System]

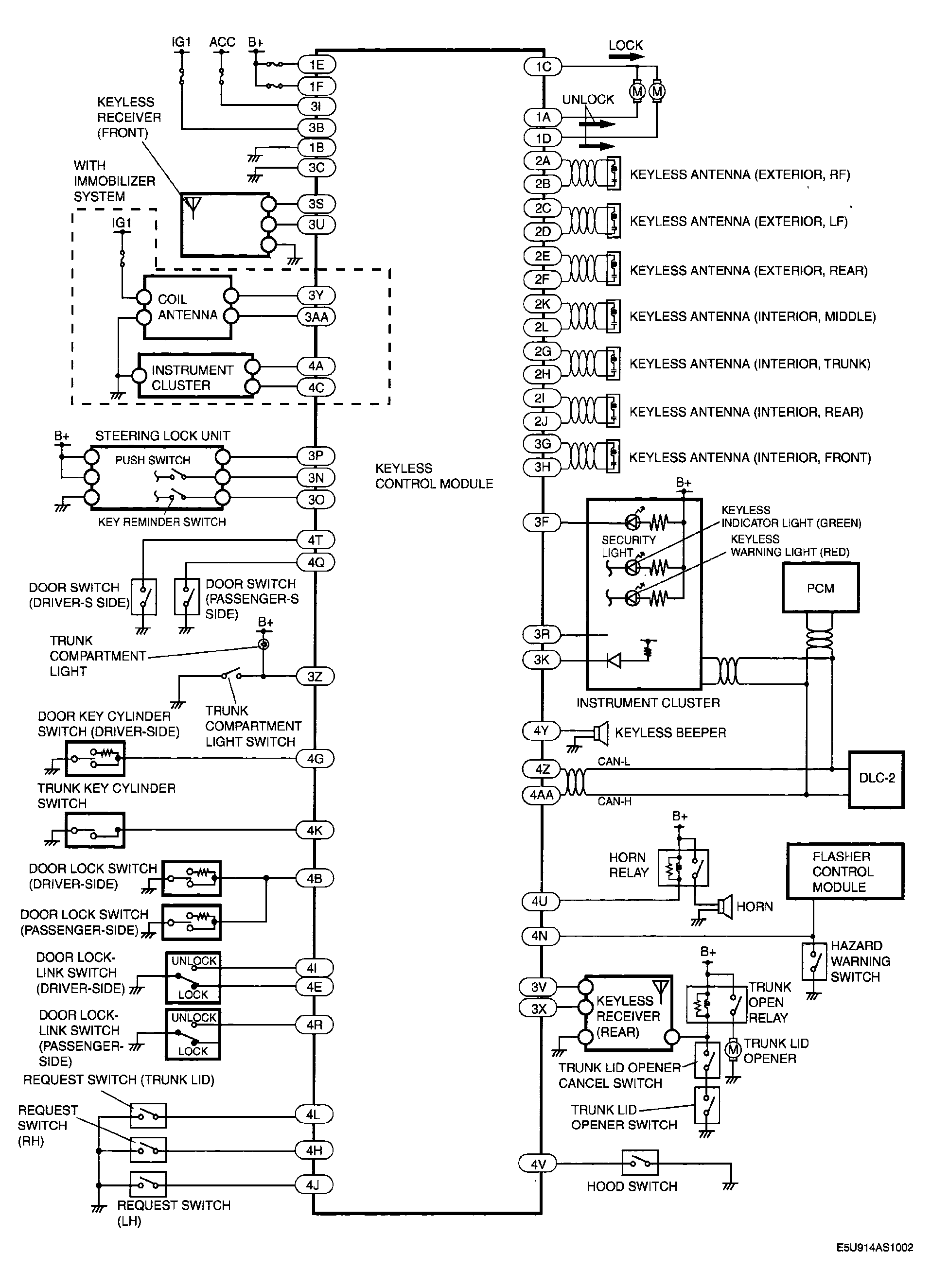

Fig 1: Keyless Entry System Wiring Diagram
G04323356Courtesy of MAZDA MOTORS CORP.
