Seat Disassembly/Assembly: Notes
WARNING:
- Handling the seat (side air bag, seat weight sensor) improperly can accidentally deploy the side air bag, which may seriously injure you. Read the service warnings and cautions before handling the seat. (See AIR BAG SYSTEM SERVICE WARNINGS .) (See AIR BAG SYSTEM SERVICE CAUTIONS .)
CAUTION:
- If any of the following work is performed, perform the seat weight sensor calibration using the WDS or equivalent. (See SEAT WEIGHT SENSOR CALIBRATION
.)
- Replacement with a new seat weight sensor
- Replacement with a new seat weight sensor control module
- Replacement with new passenger-side seat parts
- Disassembly of the passenger-side seat
- If any of the following work is performed, perform the seat weight sensor inspection using the WDS or equivalent. (See SEAT WEIGHT SENSOR INSPECTION
.)
- Removal of the passenger-side seat
- Loosening and retightening of passenger's seat fixing bolts

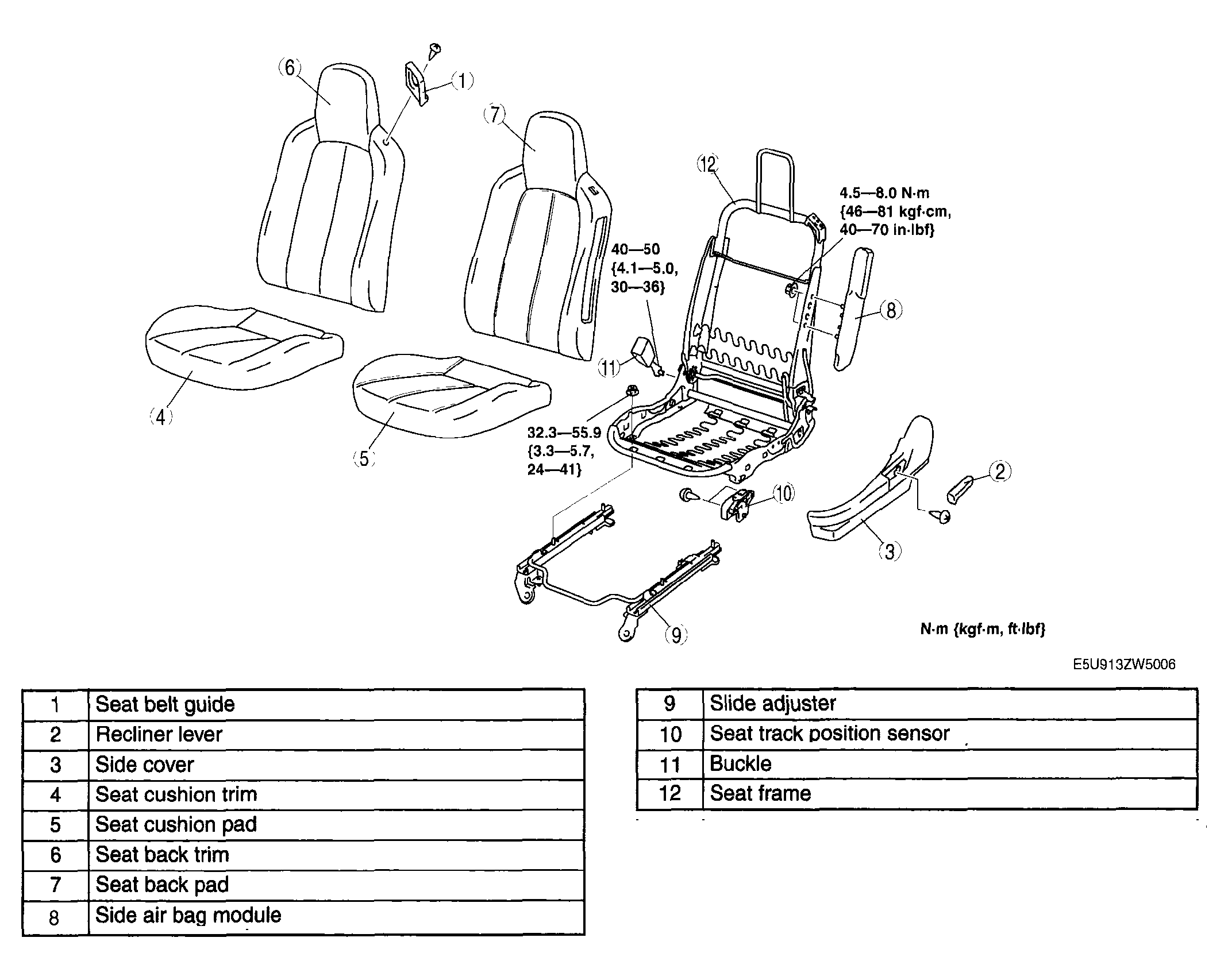

- Disassemble in the order indicated in Figure .
- Assemble in the reverse order of disassembly.
