Power Outer Mirror Inspection

  1. Apply battery positive voltage and connect the ground to the corresponding power outer mirror terminals, and then inspect the operation of the power outer mirror.
    • If not as specified, replace the power outer mirror.
    POWER OUTER MIRROR OPERATION TABLE

    Operation Terminal
    B+ GND
    Up B D
    Down D B
    Left F D
    Right D F

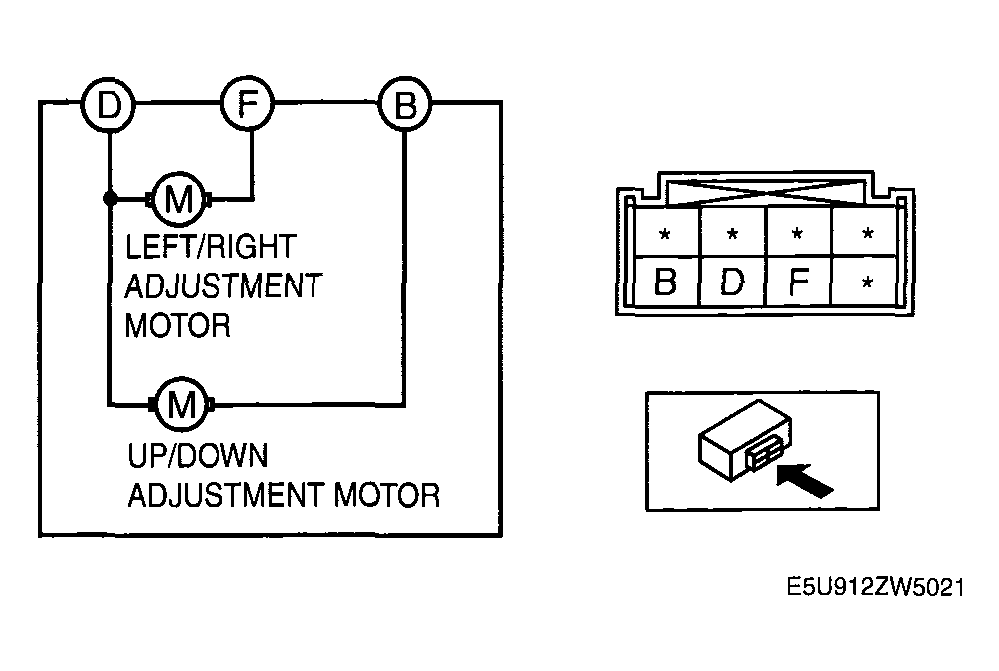

    Fig 1: Identifying Power Outer Mirror Connector
    G04323460Courtesy of MAZDA MOTORS CORP.
