DTC C1093 [Dynamic Stability Control: Notes

DTC C1093 POSSIBLE CAUSE

DTC C1093 DSC OFF switch system
DETECTION CONDITION
  • Continuous ON signal from the DSC OFF switch for 5 s or more  is detected.
POSSIBLE CAUSE
  • The driver pressed and held the DSC OFF switch for 5 s or more.
  • Short to ground in the wiring harness between the DSC HU/CM terminal P and the DSC OFF switch terminal A
  • DSC OFF switch malfunction

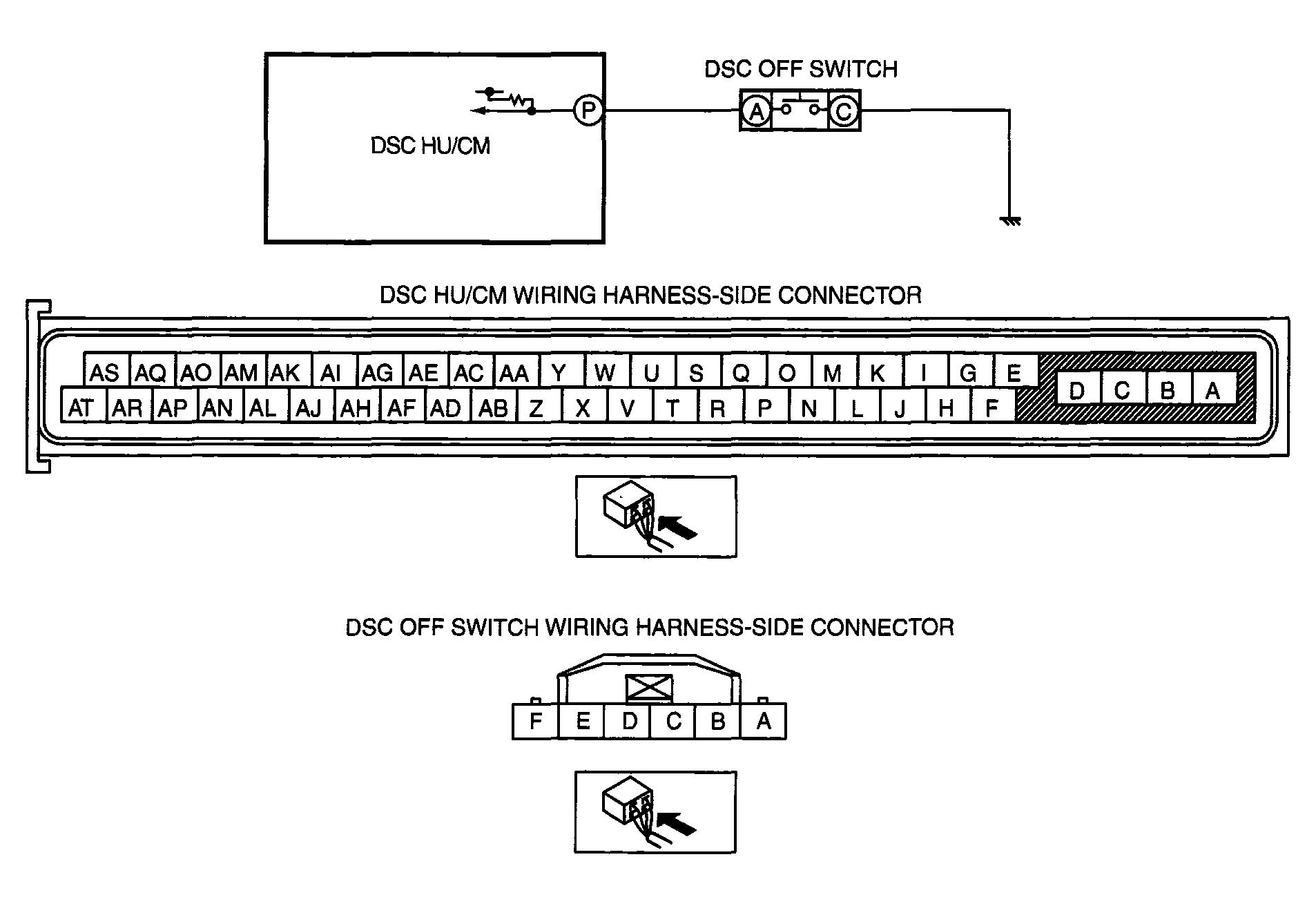

G04323075Courtesy of MAZDA MOTORS CORP.
