Dynamic Stability Control System Wiring Diagram

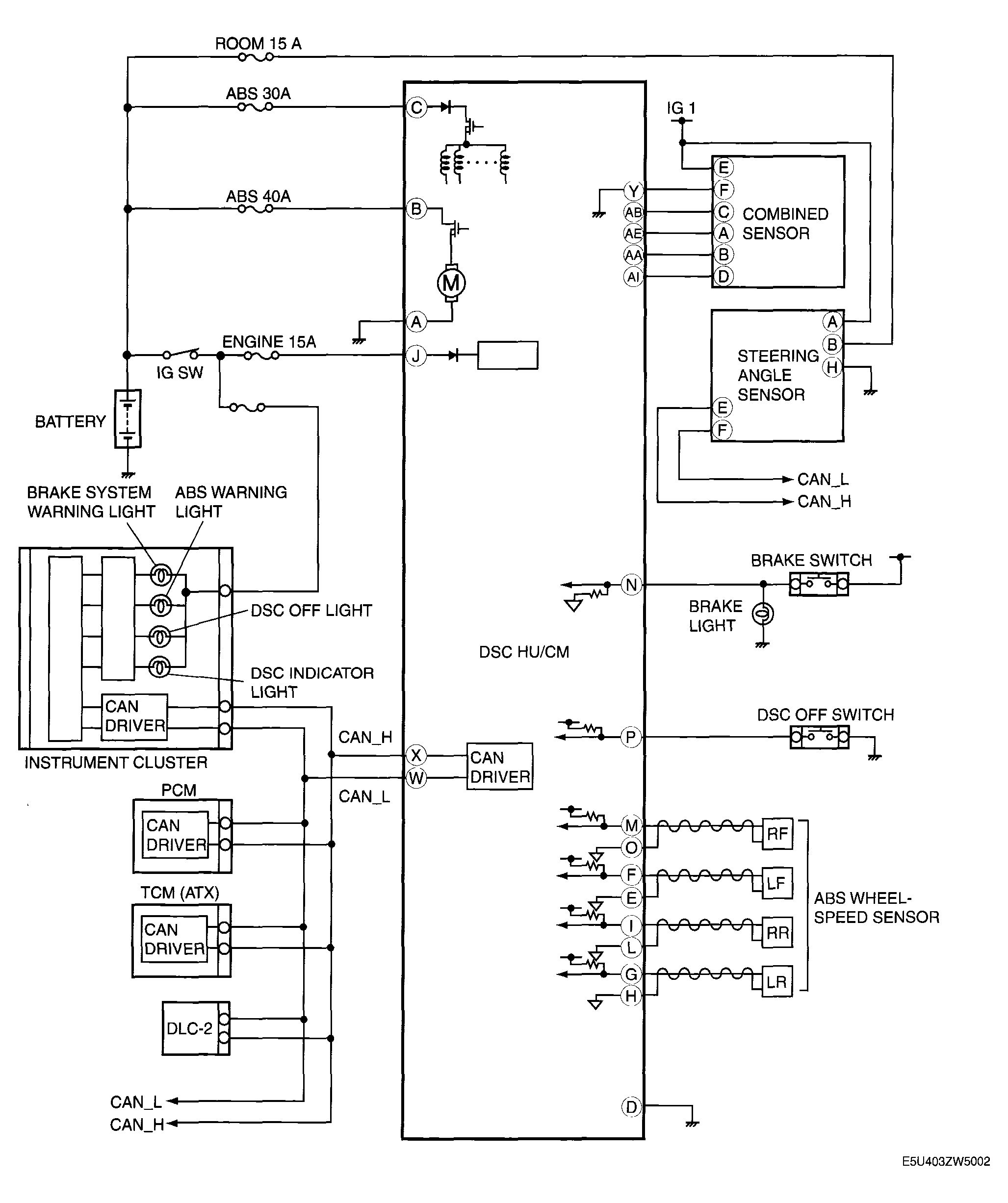

Fig 1: Dynamic Stability Control System Wiring Diagram
G04323069Courtesy of MAZDA MOTORS CORP.
