Negative Battery Cable Installation Note

  1. When connecting the negative battery cable to the battery, connect the negative battery cable and the ground cable as shown in Fig 1 .

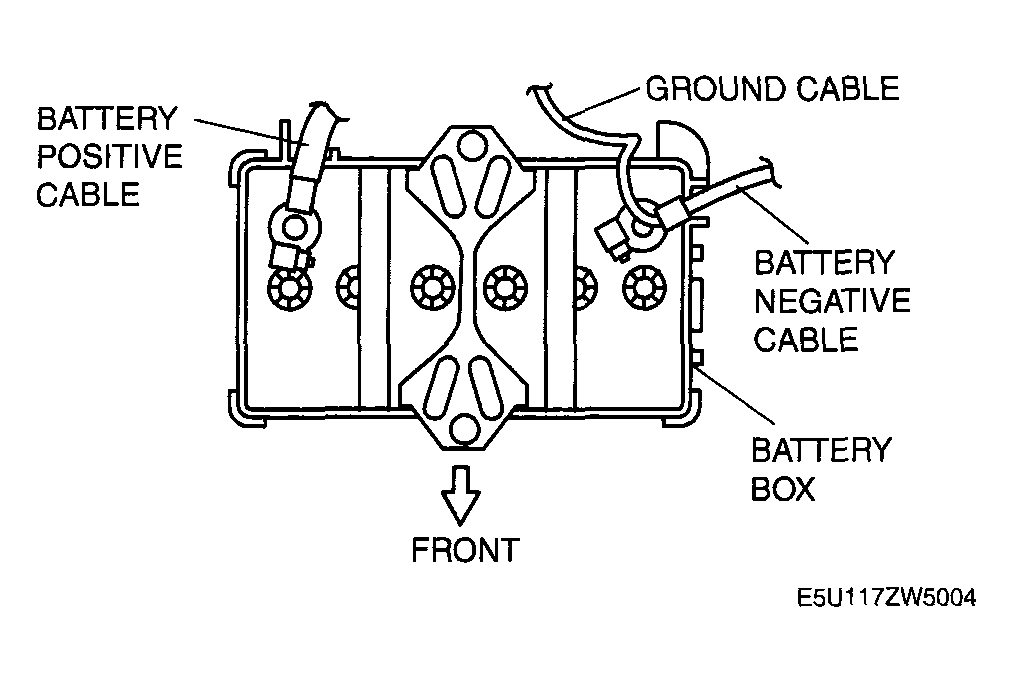

    Fig 1: Connecting Negative Battery Cable
    G04318009Courtesy of MAZDA MOTORS CORP.
