Jacking Positions: Front

NOTE:
  • To prevent obstruction between the jack body and front bumper when the jack body is inserted, use a low-floor type jack (frame height is 170 mm or less).
  • Near the center of the front crossmember.

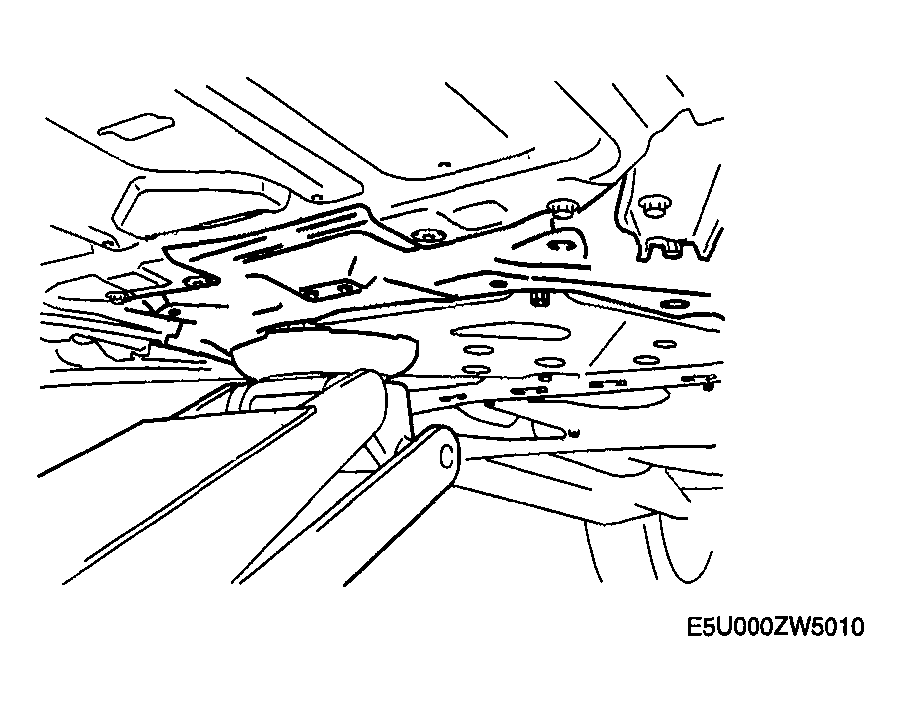

Fig 1: Supporting Vehicle Center Of Front Crossmember
G04317664Courtesy of MAZDA MOTORS CORP.
